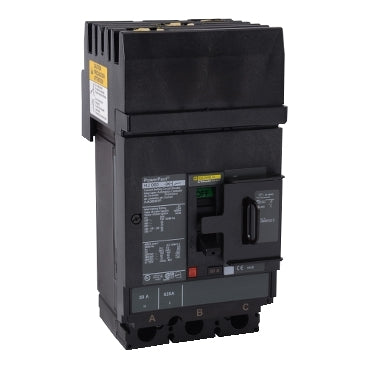

HJA36070YP - Square D Powerpact HJA 70A 3-Pole 600V Circuit Breaker I-Line Plug-In

HJA36070YP

HJA36070YP is a Square D Powerpact HJA series 3-pole, 70A, 600V molded case circuit breaker designed for I-Line panelboards with plug-in mounting. This breaker features a thermal-magnetic trip unit, current limiting design, and is UL listed for reliable protection against overloads and short circuits. Suitable for reverse-fed applications and offers a high interrupt rating for demanding environments.

• Part Number: HJA36070YP
• Manufacturer: Square D
• Series/Frame: Powerpact HJA
• Amperage: 70A
• Voltage: 600V
• Poles: 3
• Mounting Type: I-Line Plug-In
• Interrupt Rating: 65kA @ 480V
• Trip Unit: Thermal-Magnetic
• Current Limiting: Yes
• Reverse Fed: Suitable
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HJA36070YP
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HJA
• Voltage : 600
• Amperage : 70
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Frame Size : H Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 3606486282663
• GTIN : 03606486282663
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
