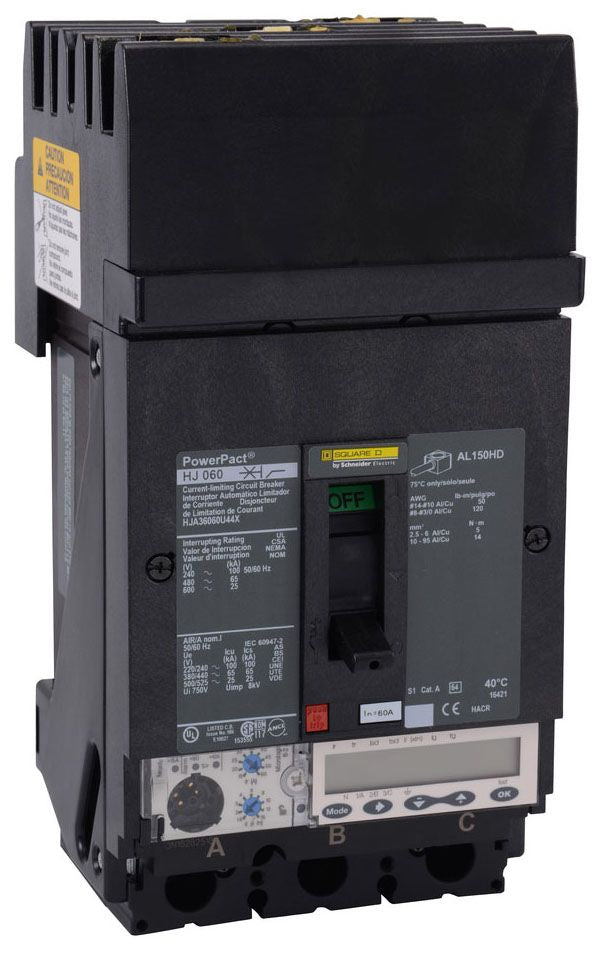

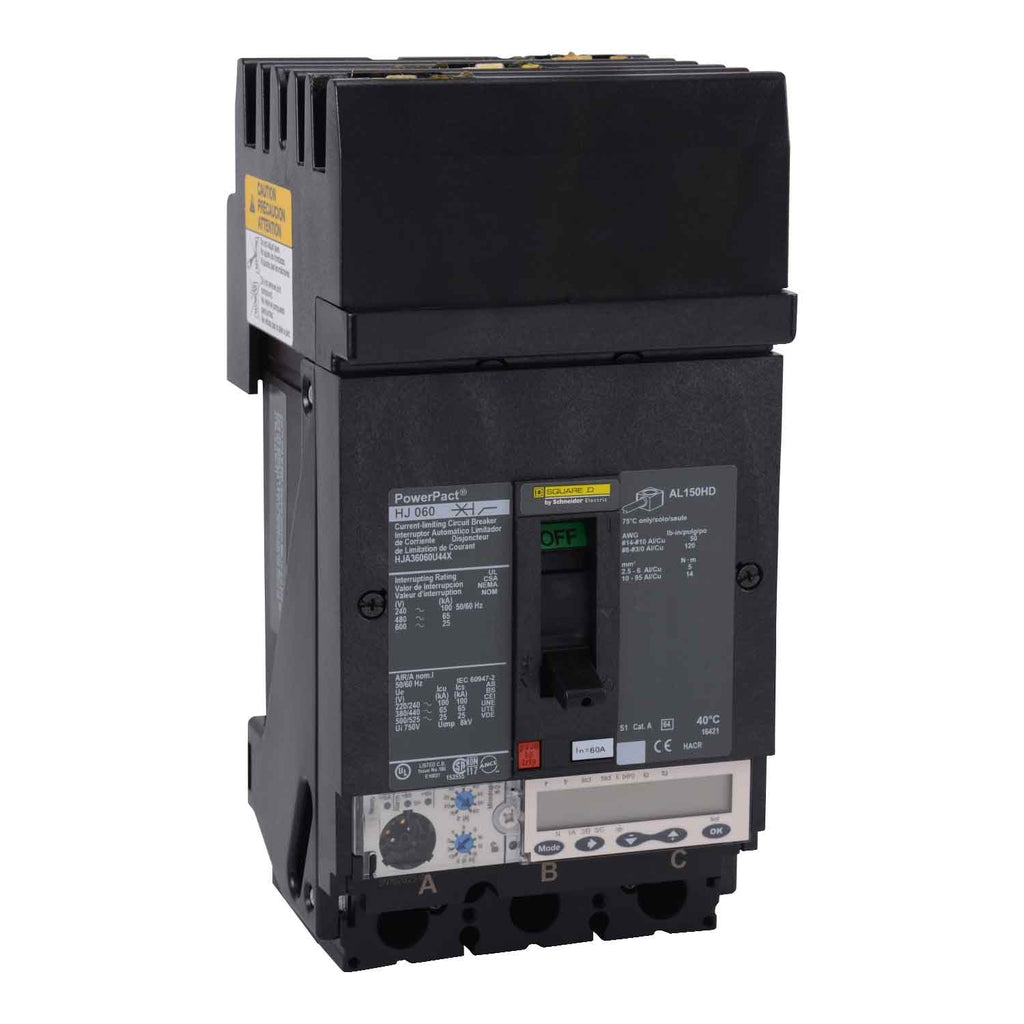

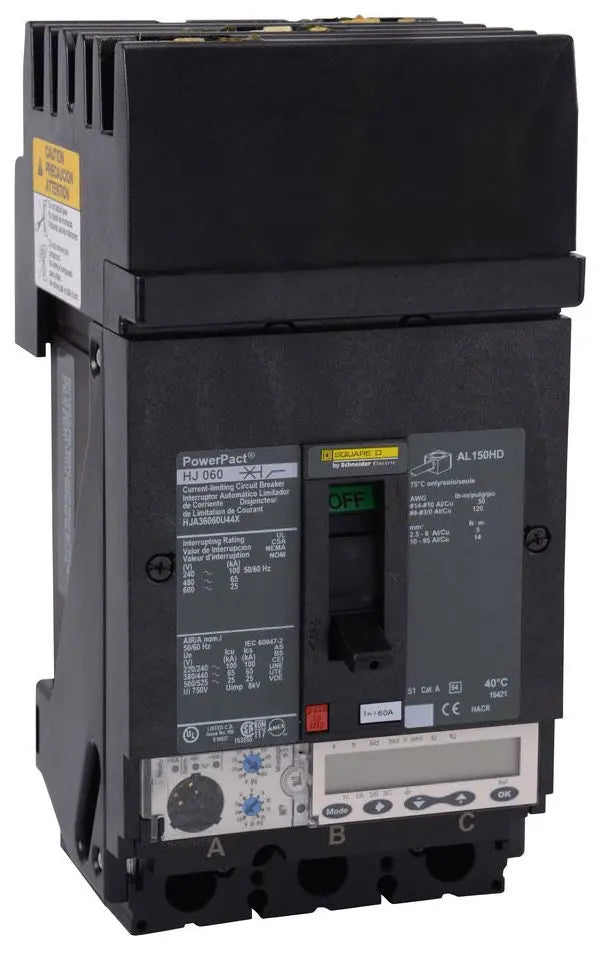

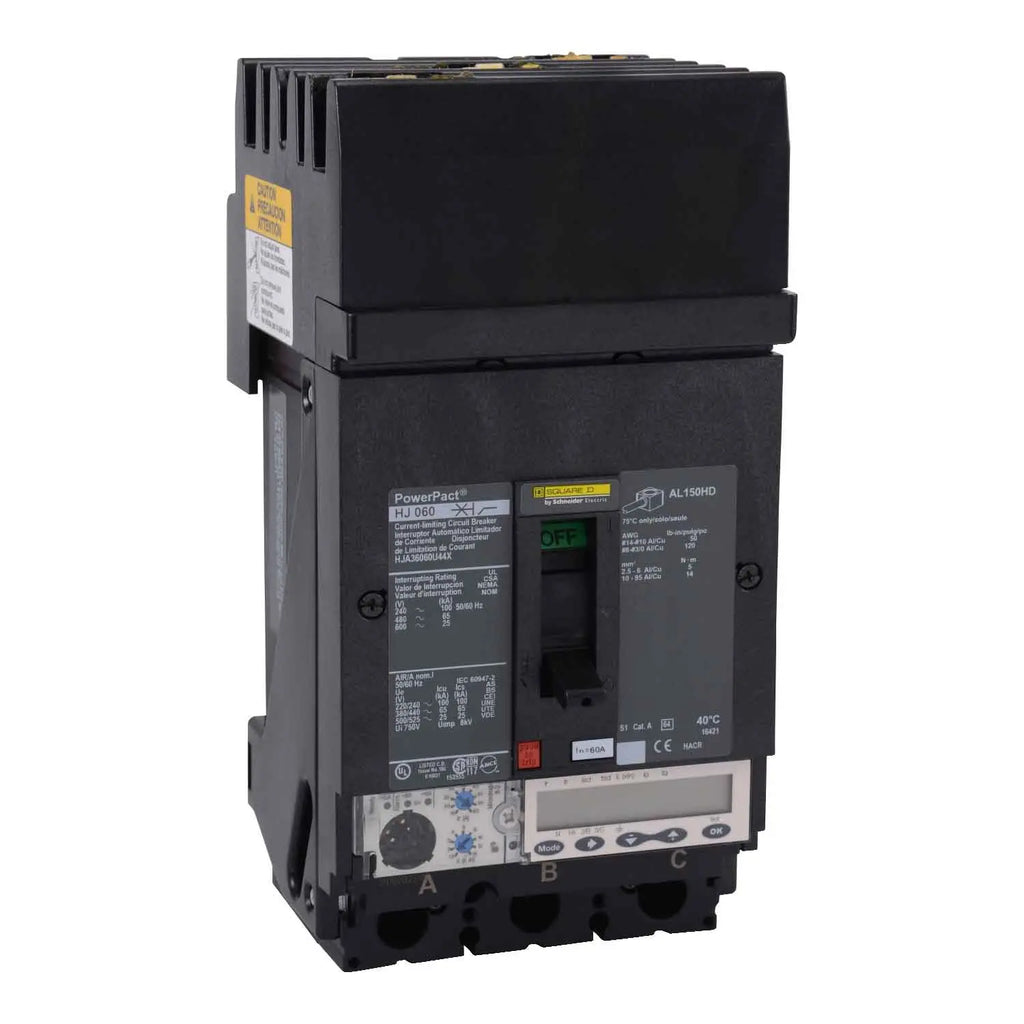

HJA36060U44X - Square D PowerPact H-Frame 60A 3-Pole 600VAC 25kA I-Line Molded Case Circuit Breaker with Micrologic 6.2A Trip Unit, UL CSA CE IEC

HJA36060U44X

HJA36060U44X Square D PowerPact H-Frame molded case circuit breaker delivers reliable protection for industrial and commercial electrical systems.

This 3-pole, 60A breaker features I-Line mounting, a maximum voltage rating of 600VAC, and an interrupting rating of 25kA at 600VAC (65kA at 480VAC, 100kA at 240VAC). It is equipped with a Micrologic 6.2A electronic trip unit offering LSIG protection (Long-Time, Short-Time, Instantaneous, and Ground Fault). The breaker is UL 489 listed, CSA, CE, and IEC certified, and is designed for easy installation and removal in I-Line panelboards. The unit includes an integral push-to-trip button and dual-break rotating contacts for enhanced safety and performance.

Key Specifications
• Part Number: HJA36060U44X
• Manufacturer: Square D (Schneider Electric)
• Amperage: 60A
• Voltage: 600VAC (250VDC)
• Poles: 3
• Mounting Type: I-Line
• Interrupt Rating: 25kA @ 600VAC, 65kA @ 480VAC, 100kA @ 240VAC
• Series/Frame: PowerPact H-Frame
• Trip Unit: Micrologic 6.2A, LSIG (electronic)
• Connection: ABC phase, I-Line line side, lugs load side
• Certifications: UL 489, CSA, CE, IEC, NOM
• Continuous Current Rating: 80%
• Features: Push-to-trip, dual-break contacts, current limiting

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HJA36060U44X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HJA
• Voltage : 600
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Terminal Connection : I-Line, Lug
• Frame Size : H
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Solid State
• Phase Connection : ABC

Product Data

• UPC : 785901655657
• GTIN : 00785901655657
• Country of Origin : United States
• Dimensions : 4.12 in x 6.4 in
• Weight : 3.63
• Standards : UL, CSA, NEMA, NOM, CE
• Certification : UL, CSA, NEMA, NOM, CE
• Wire Size : AWG 14...AWG 3/0 aluminum/copper terminal
