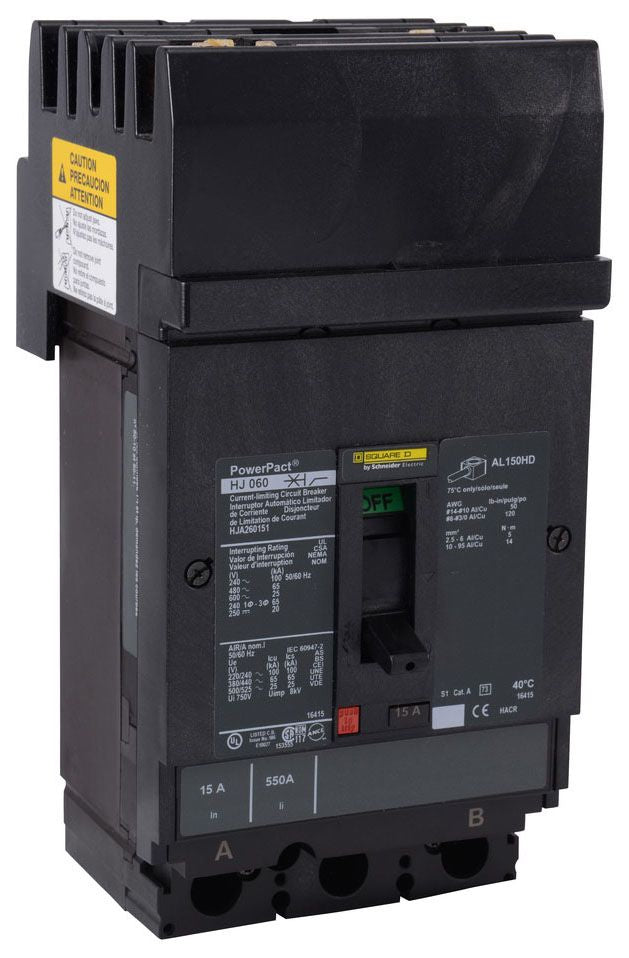

HJA260601 - Square D 60 Amp 600 Volt 2 Pole PowerPact H Molded Case Circuit Breaker

HJA260601

HJA260601 is a Square D PowerPact H molded case circuit breaker designed for reliable electrical protection in power distribution systems.This 2-pole breaker is rated for 60 amps and 600 volts AC, featuring a thermal magnetic trip unit for precise circuit interruption. It mounts using the I-Line style plug-in connection and offers a breaking capacity of 25kA at 600VAC, suitable for industrial and commercial applications. The breaker complies with industry certifications ensuring safety and performance.

• Amperage: 60A
• Voltage Rating: 600 VAC
• Poles: 2
• Mounting Type: I-Line Plug-In
• Interrupt Rating: 25kA at 600VAC
• Series/Frame: PowerPact H
• Trip Unit: Thermal Magnetic
• Phase: Single Phase
• Application: Power Distribution
• Certifications: Industry Standard Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HJA260601
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HJA
• Voltage : 600
• Amperage : 60
• Phase : 1
• Poles : 2
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : I-Line, Lug
• Frame Size : H
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic
• Phase Connection : AB

Product Data

• UPC : 785901511632
• GTIN : 00785901511632
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5.28
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
