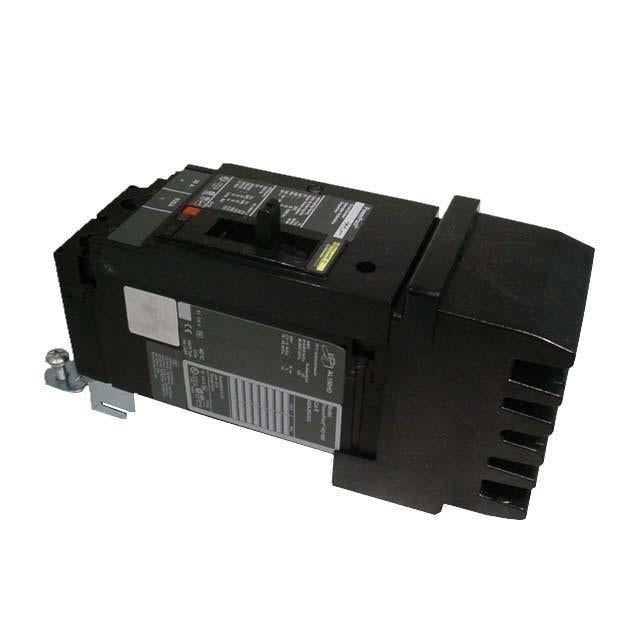

HJA260304 - Square D PowerPact H 30A 2-Pole 600V 65kA@480V I-Line Plug-In Thermal Magnetic Circuit Breaker

HJA260304

HJA260304 is a Square D PowerPact H series, 2-pole, 30A, 600V, I-Line plug-in, thermal magnetic circuit breaker designed for reliable protection in commercial and industrial applications.

This molded case circuit breaker features a current-limiting design, non-interchangeable trip, and is suitable for reverse fed applications. It offers both long-time and instantaneous (LI) trip functions, ensuring robust overload and short-circuit protection. The breaker is UL listed and meets industry standards for safety and performance.

Key Specifications
• Amperage: 30A
• Voltage: 600V AC
• Poles: 2
• Mounting Type: I-Line plug-in
• Interrupt Rating: 65kA @ 480V, 25kA @ 600V
• Series/Frame: PowerPact H
• Trip Unit: Thermal magnetic, non-interchangeable, LI (Long-time and Instantaneous)
• Certifications: UL 489 listed
• Connection: B & C phase
• Rating: 80% continuous
• Application: Suitable for reverse fed installations
• Environmental: CE, CSA, IEC certifications (where applicable)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HJA260304
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HJA
• Voltage : 600
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous
• Frame Size : H Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901834151
• GTIN : 00785901834151
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.999
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
