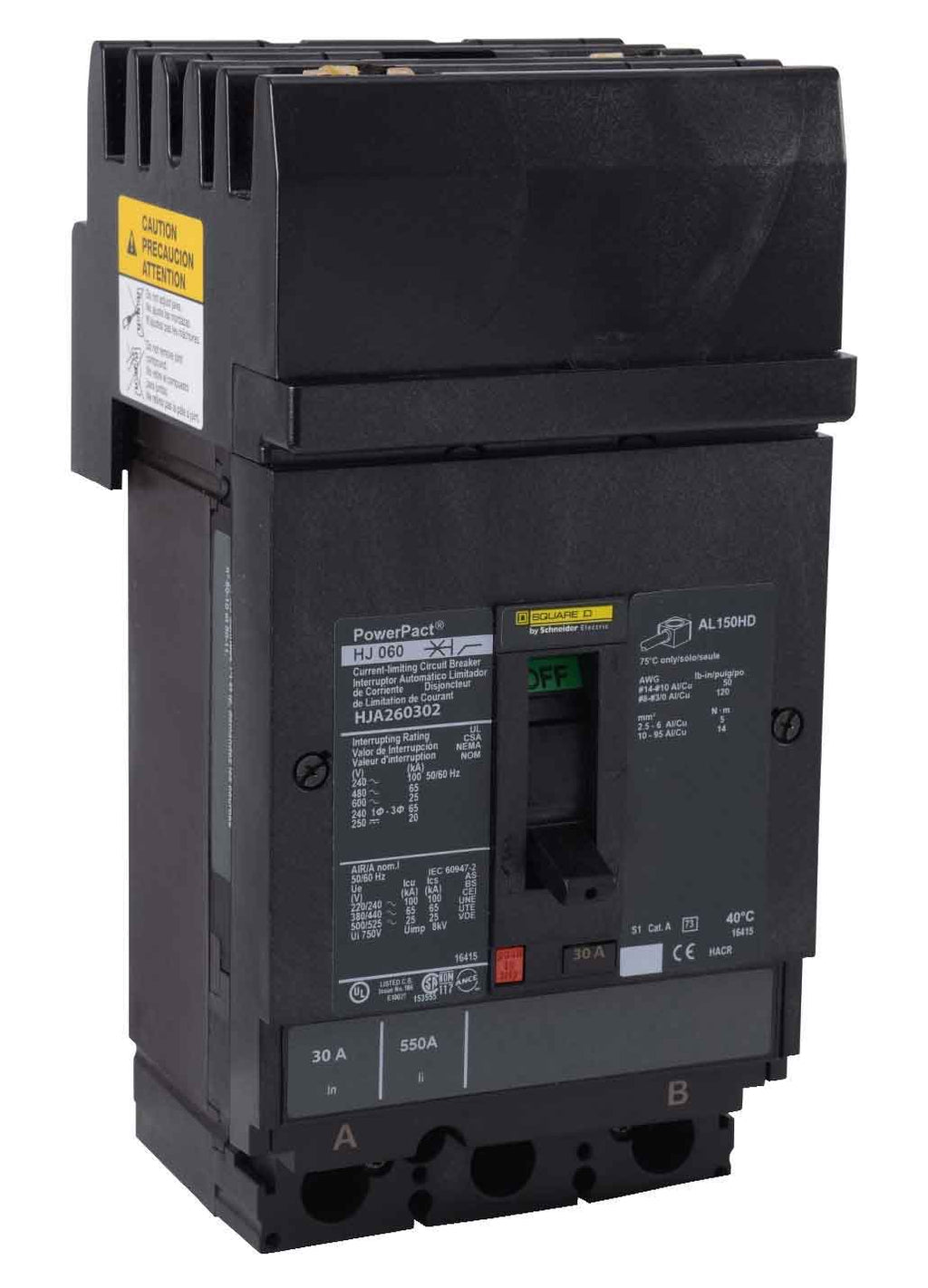

HJA260302 - Square D PowerPact H I-Line 30A 2 Pole 600V Thermal Magnetic Circuit Breaker

HJA260302

HJA260302 is a Square D PowerPact H I-Line molded case circuit breaker designed for reliable protection in commercial and industrial applications. This 2 pole, 30 amp, 600V AC breaker features a thermal magnetic trip unit and is suitable for use in I-Line panelboards and switchboards. It offers current limiting performance and is UL, CSA, and CE listed for safety and compliance. The HJA260302 breaker is engineered for easy installation and flexible terminal options, making it ideal for a wide range of distribution applications. Its robust construction ensures long-term reliability and safe operation in demanding environments.

• Part Number: HJA260302
• Manufacturer: Square D
• Series/Frame: PowerPact H
• Amperage Rating: 30A
• Voltage Rating: 600V AC, 250V DC
• Poles: 2
• Mounting Type: I-Line Plug-In
• Interrupt Rating: 65kA @ 480V AC, 25kA @ 600V AC
• Trip Unit: Thermal Magnetic
• Frequency: 50/60 Hz
• Certifications: UL, CSA, CE
• Application: Distribution, Panelboard, Switchboard

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HJA260302
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HJA
• Voltage : 600
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous
• Frame Size : H Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901601067
• GTIN : 00785901601067
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5.28
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
