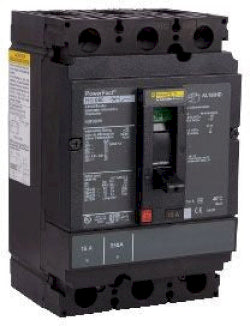

HGP36150 - Square D 150 Amp 600 VAC 3 Pole H Frame Molded Case Circuit Breaker

HGP36150

HGP36150 is a Square D 150 Amp, 3 Pole, H Frame molded case circuit breaker designed for reliable power distribution protection.This circuit breaker features a thermal magnetic trip unit, unit mount design, and is rated for up to 600 VAC or 500 VDC. It has a G interrupt rating with breaking capacities of 65 kA at 240 V, 35 kA at 480 V, and 18 kA at 600 V. The breaker is UL 489 listed and suitable for industrial and commercial applications requiring robust overload and short circuit protection.

• Amperage: 150 Amp
• Voltage Rating: 600 VAC / 500 VDC
• Poles: 3 Pole
• Frame Type: H Frame Molded Case
• Mounting Type: Unit Mount
• Interrupt Rating: G Interrupt Code
• Breaking Capacity: 65 kA @ 240 V, 35 kA @ 480 V, 18 kA @ 600 V
• Trip Unit: Thermal Magnetic
• UL Listing: UL 489
• Manufacturer: Square D (Schneider Electric)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HGP36150
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGP
• Voltage : 600
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug, Terminal Nut
• Frame Size : H
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901676942
• GTIN : 00785901676942
• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.14
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
