HGP36030 - Square D PowerPact H 30 Amp 3 Pole 600V Bolt-On Circuit Breaker 35kA@480V

HGP36030

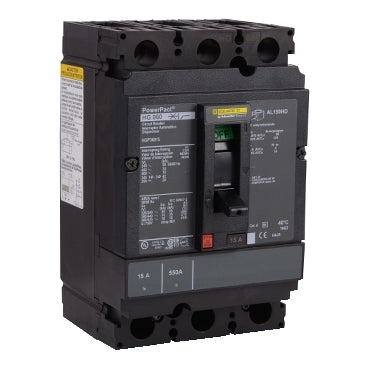

HGP36030 is a Square D PowerPact H series 3 pole circuit breaker rated for 30 amps and 600 volts with bolt-on mounting.This PowerPact H frame circuit breaker provides reliable thermal magnetic protection with an interrupt rating of 35kA at 480V AC and 18kA at 600V AC, suitable for industrial and commercial power distribution applications.

• Amperage: 30 Amp
• Voltage Rating: 600 Volt AC
• Poles: 3 Pole
• Mounting Type: Bolt-On
• Interrupt Rating: 35kA at 480V AC, 18kA at 600V AC
• Series/Frame: PowerPact H
• Trip Unit: Thermal Magnetic
• Terminal Connection: Lugs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HGP36030
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGP
• Voltage : 600
• Amperage : 30
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug, Terminal Nut
• Frame Size : H
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 606482463595
• GTIN : 03606482463592
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.999
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
