HGL36100U43X - Square D PowerPact H-Frame 100A 3-Pole 600V Circuit Breaker

HGL36100U43X

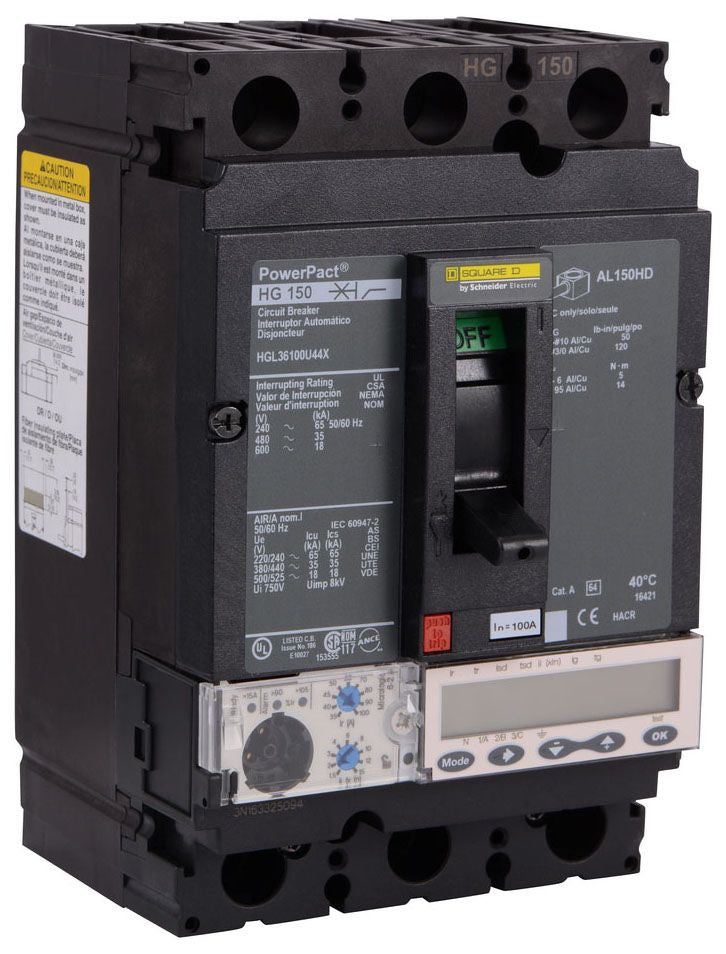

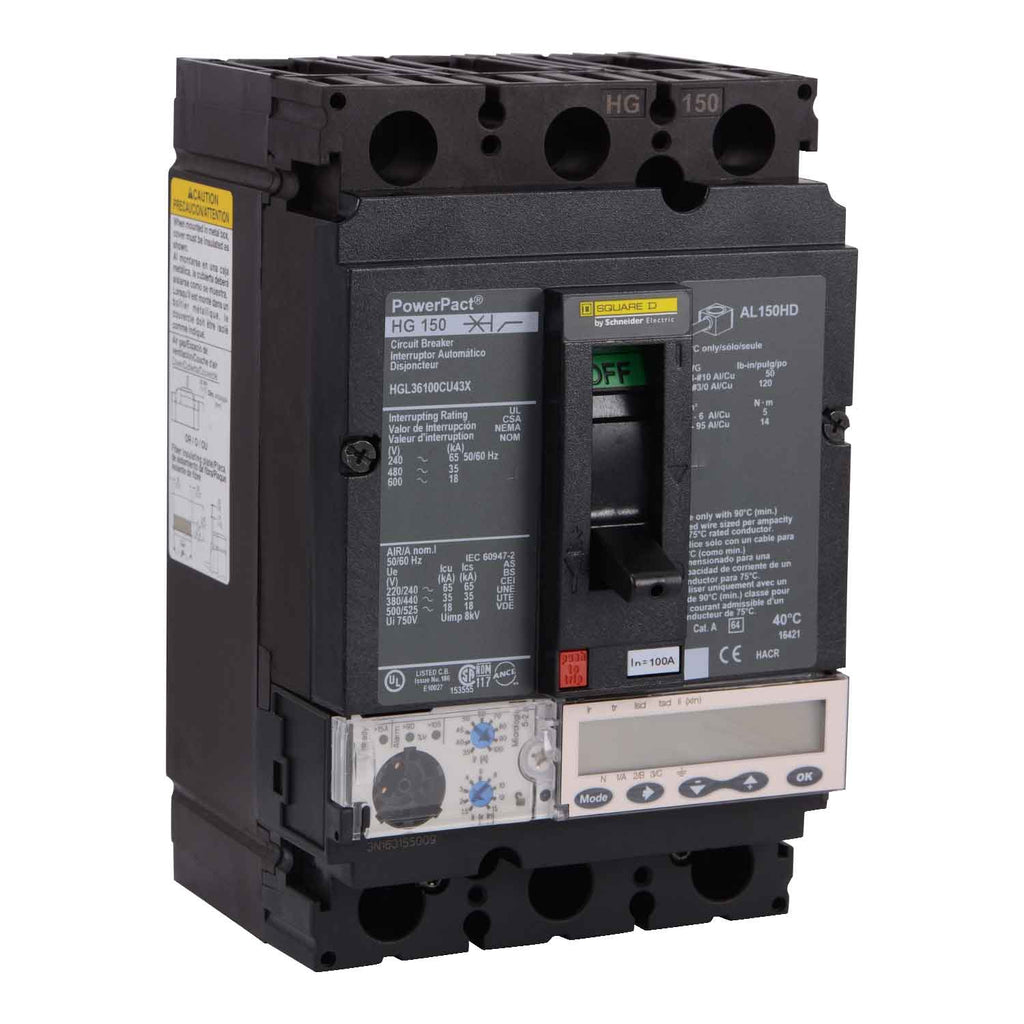

HGL36100U43X is a Square D PowerPact H-Frame molded case circuit breaker designed for reliable protection in commercial and industrial electrical systems. This breaker features a 100A current rating, three poles, and a 600V AC voltage rating, making it suitable for a wide range of applications requiring robust overload and short-circuit protection. The HGL36100U43X is equipped with an LSI electronic trip unit and offers current limiting performance for enhanced system safety. Its feed-thru connection design and free-standing mounting style provide flexibility during installation. The breaker is part of the PowerPact H-Frame series, known for durability and ease of integration in panelboards and switchgear.

• Part Number: HGL36100U43X
• Manufacturer: Square D
• Series/Frame: PowerPact H-Frame
• Amperage: 100A
• Poles: 3
• Voltage Rating: 600V AC
• Interrupt Rating: 65kA
• Mounting Type: Free Standing
• Connection Type: Feed-Thru
• Trip Unit: LSI Electronic
• Current Limiting: Yes
• Actuator: Toggle

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HGL36100U43X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGL
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Terminal Connection : Box Lug
• Frame Size : 150A/HG
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 3/0 AWG
• Breaker Type : Micrologic Ammeter W LSI Functionality
• Protection : Solid State
• Phase Connection : ABC

Product Data

• UPC : 094715966430
• GTIN : 03606486119297
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
