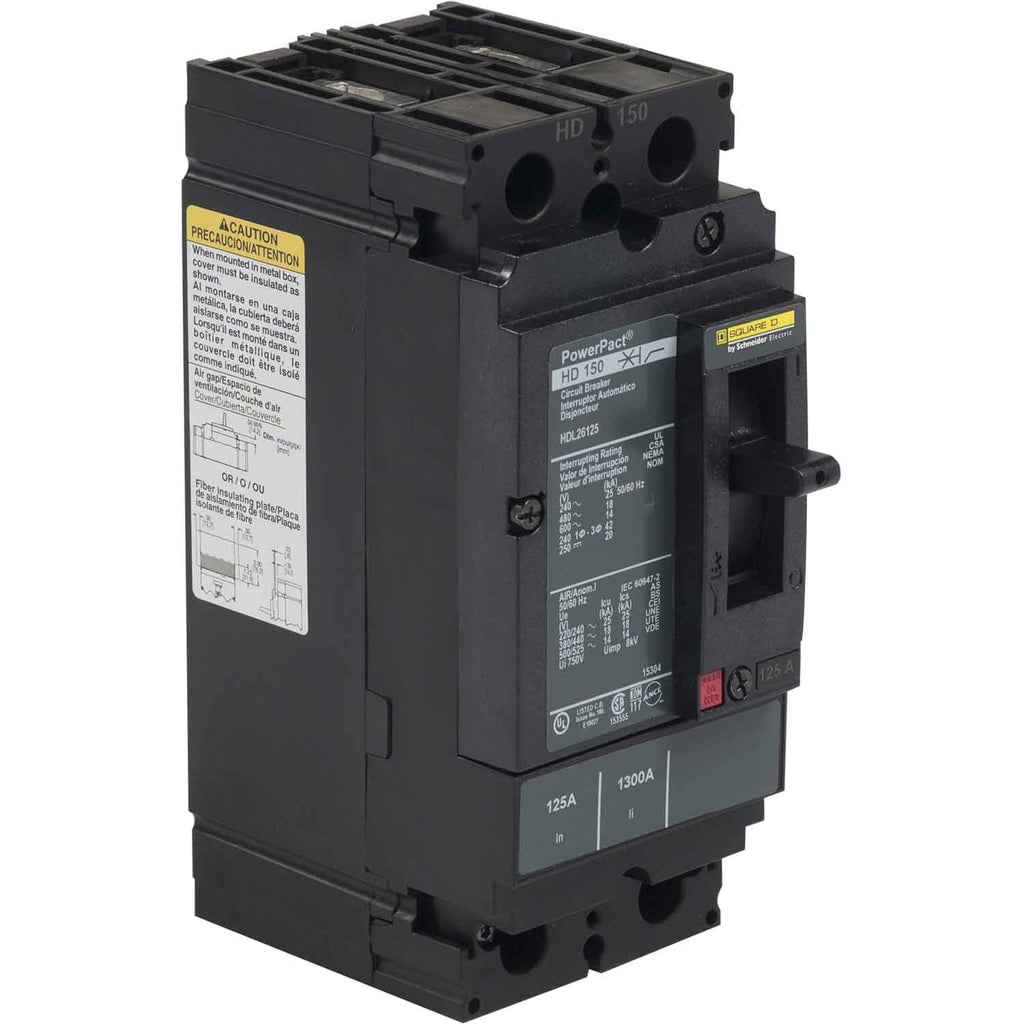

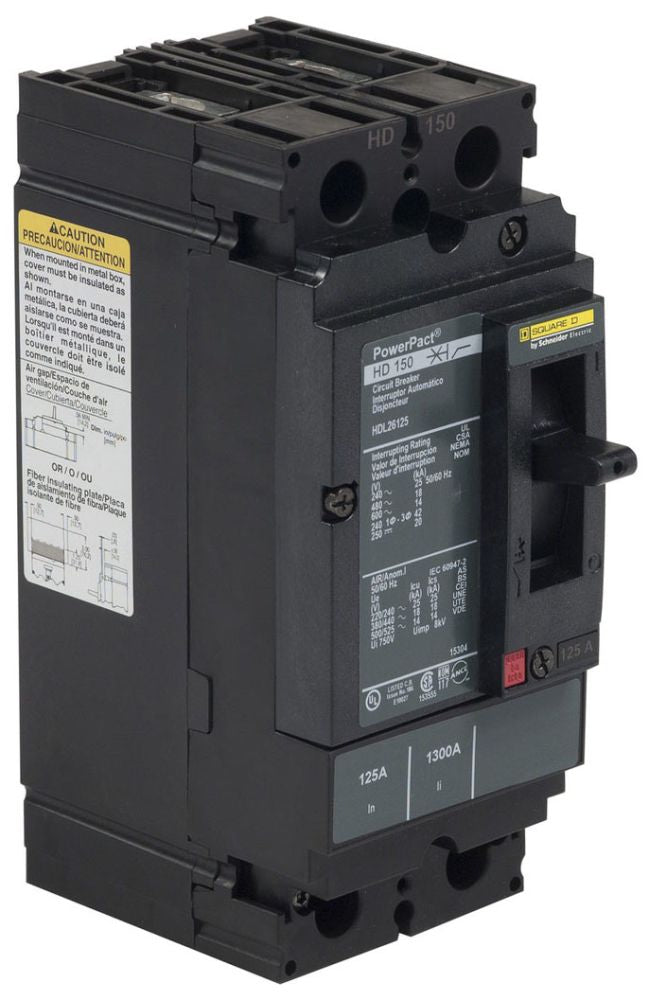

HGL26090 - Square D 90 Amp 600 Volt 2 Pole Molded Case Circuit Breaker H Frame

HGL26090

HGL26090 is a Square D 2 pole molded case circuit breaker rated for 90 amps and 600 volts, designed for reliable thermal magnetic protection.This H Frame breaker features a 35kA interrupting rating at 480V, thermal magnetic trip unit with long-time and instantaneous trip functions, and is UL listed. It supports feed-thru connection and is suitable for reverse fed applications with line and load side lug terminals.

• Manufacturer: Square D
• Part Number: HGL26090
• Poles: 2
• Amperage: 90A
• Voltage Rating: 600V AC
• Interrupting Rating: 35kA at 480V
• Frame Type: H Frame
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous
• Mounting Type: Bolt-On
• Connection: Feed-Thru
• UL Listed
• Suitable for Reverse Fed Applications

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HGL26090
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGL
• Voltage : 600
• Amperage : 90
• Phase : 1
• Poles : 2
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Line/Load Lug
• Frame Size : 150A/HG
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Not Applicable

Product Data

• UPC : 785901598817
• GTIN : 00785901598817
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.9
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
