HGL26030 - Square D PowerPacT H 30A 2-Pole 600VAC Molded Case Circuit Breaker, Thermal Magnetic Trip, 18kA Interrupt, HGL Frame, UL/CSA/CE Certified

Save $756.92
SKU: HGL26030-New
Condition: New
Price:
$512.08 $1,269.00
Stock:
7 In stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

HGL26030 - Schneider Electric/ Square D Feed-Thru 30 Amp 2 Pole Circuit Breaker - Essential Electric Supply
HGL26030 - Square D Bolt-On 600V 30A 2 pole circuit breaker 35kA@480V - Essential Electric Supply
HGL26030 - Square D PowerPacT H 30A 2-Pole 600VAC Molded Case Circuit Breaker, Thermal Magnetic Trip, 18kA Interrupt, HGL Frame, UL/CSA/CE Certified - Essential Electric Supply
HGL26030 - Square D PowerPacT H 30A 2-Pole 600VAC Molded Case Circuit Breaker, Thermal Magnetic Trip, 18kA Interrupt, HGL Frame, UL/CSA/CE Certified - Essential Electric Supply
HGL26030 - Square D PowerPacT H 30A 2-Pole 600VAC Molded Case Circuit Breaker, Thermal Magnetic Trip, 18kA Interrupt, HGL Frame, UL/CSA/CE Certified - Essential Electric Supply
HGL26030 - Square D PowerPacT H 30A 2-Pole 600VAC Molded Case Circuit Breaker, Thermal Magnetic Trip, 18kA Interrupt, HGL Frame, UL/CSA/CE Certified - Essential Electric Supply
HGL26030 - Square D PowerPacT H 30A 2-Pole 600VAC Molded Case Circuit Breaker, Thermal Magnetic Trip, 18kA Interrupt, HGL Frame, UL/CSA/CE Certified - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
HGL26030 - Schneider Electric/ Square D Feed-Thru 30 Amp 2 Pole Circuit Breaker - Essential Electric Supply
HGL26030 - Square D Bolt-On 600V 30A 2 pole circuit breaker 35kA@480V - Essential Electric Supply
HGL26030 - Square D PowerPacT H 30A 2-Pole 600VAC Molded Case Circuit Breaker, Thermal Magnetic Trip, 18kA Interrupt, HGL Frame, UL/CSA/CE Certified - Essential Electric Supply
HGL26030 - Square D PowerPacT H 30A 2-Pole 600VAC Molded Case Circuit Breaker, Thermal Magnetic Trip, 18kA Interrupt, HGL Frame, UL/CSA/CE Certified - Essential Electric Supply
HGL26030 - Square D PowerPacT H 30A 2-Pole 600VAC Molded Case Circuit Breaker, Thermal Magnetic Trip, 18kA Interrupt, HGL Frame, UL/CSA/CE Certified - Essential Electric Supply
HGL26030 - Square D PowerPacT H 30A 2-Pole 600VAC Molded Case Circuit Breaker, Thermal Magnetic Trip, 18kA Interrupt, HGL Frame, UL/CSA/CE Certified - Essential Electric Supply
HGL26030 - Square D PowerPacT H 30A 2-Pole 600VAC Molded Case Circuit Breaker, Thermal Magnetic Trip, 18kA Interrupt, HGL Frame, UL/CSA/CE Certified - Essential Electric Supply

Description

HGL26030


HGL26030 is a Square D PowerPacT H series molded case circuit breaker designed for reliable circuit protection in commercial and industrial applications.

This thermal magnetic, current-limiting circuit breaker features a 30A continuous current rating, 2-pole design, and a maximum voltage rating of 600V AC. It is suitable for unit mount installation and offers high interrupting capacity with certifications for safety and performance.

    Key Specifications
  • Part Number: HGL26030
  • Manufacturer: Square D (Schneider Electric)
  • Amperage: 30A
  • Voltage: 600V AC (250V DC)
  • Poles: 2
  • Mounting Type: Unit mount (feed-thru)
  • Interrupt Rating: 18kA at 600V AC, 35kA at 480V AC, 65kA at 240V AC
  • Series/Frame: PowerPacT H (HGL)
  • Trip Unit: Thermal magnetic
  • Certifications: UL, CSA, CE

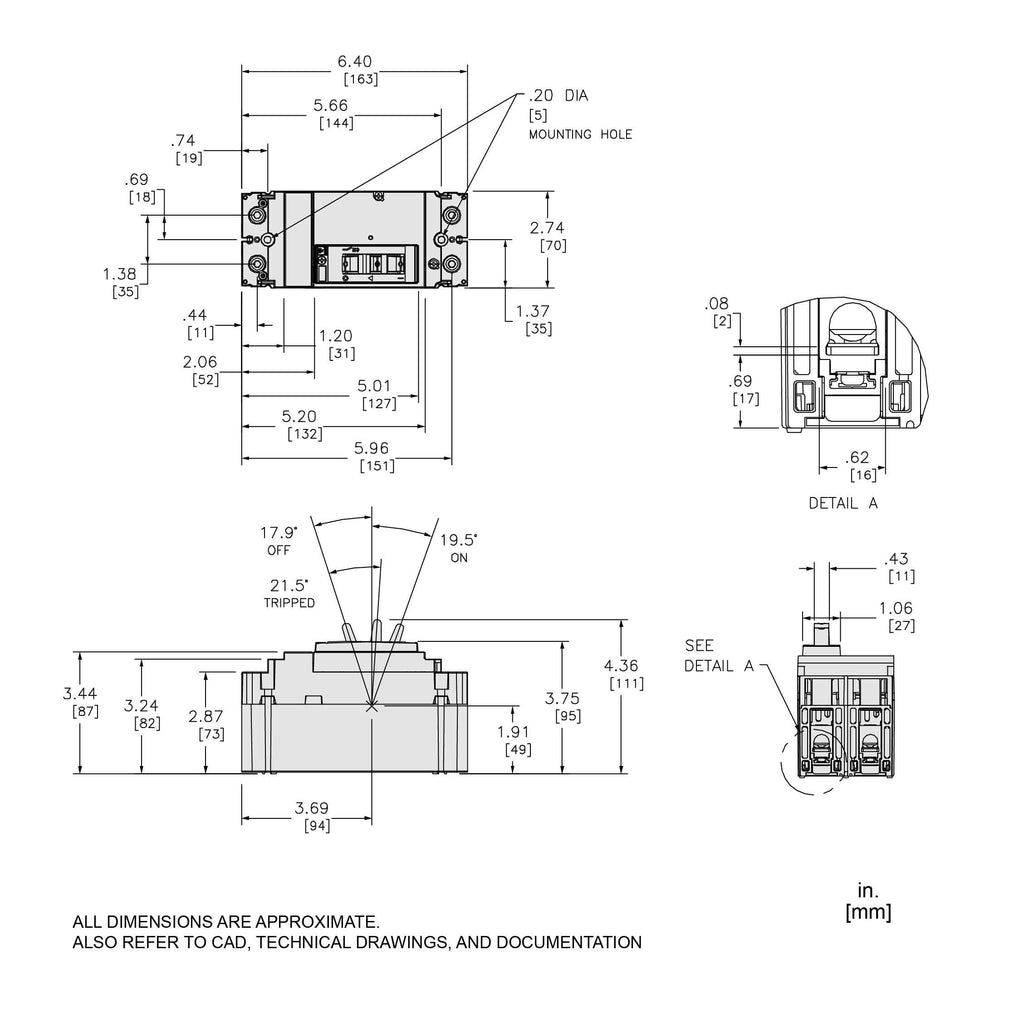

  • Dimensions: Approximately 6.4" H x 4.09" W x 3.39" D
  • Weight: 4.85 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: HGL26030
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : HGL
  • Voltage : 600
  • Amperage : 30
  • Phase : 1
  • Poles : 2
  • AIC rating : 35kA@480V
  • Connection : Bolt-On
  • Functions : Long Time and Instantaneous
  • Terminal Connection : Line/Load Lug
  • Frame Size : 150A/HG
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 3 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : Not Applicable

Product Data

  • UPC : 785901683254
  • GTIN : 00785901683254
  • Country of Origin : Mexico
  • Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
  • Weight : 3.04
  • Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification : UL, CSA, NOM
  • Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal

Accesories

Part Manufacture Sub Category
S29370
S29452
S29450
S29389
S29403
S29412
