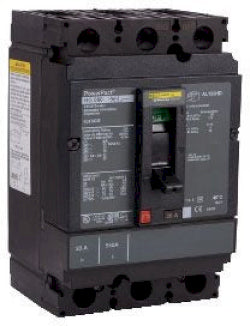

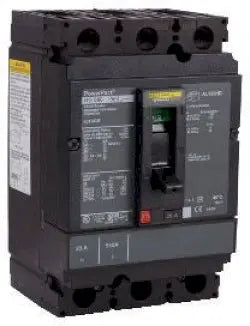

HGF36060 - Square D PowerPact H Frame 60A 3-Pole Molded Case Circuit Breaker 600VAC

HGF36060

HGF36060 is a 3-pole, 60 amp, 600VAC molded case circuit breaker from the Square D PowerPact H Frame series, designed for reliable protection in commercial and industrial applications. This Square D HGF36060 circuit breaker features a thermal-magnetic trip unit and is suitable for panel mount installations. It provides protection for circuits up to 600VAC and is UL 489 listed for safety and compliance.

• Part Number: HGF36060
• Manufacturer: Square D
• Series/Frame: PowerPact H Frame
• Amperage: 60A
• Voltage: 600VAC
• Poles: 3
• Mounting Type: Panel Mount
• Interrupt Rating: 35kA @ 480VAC
• Interrupt Rating: 18kA @ 600VAC
• Interrupt Rating: 65kA @ 240VAC
• Tripping Mechanism: Thermal-Magnetic
• Certification: UL 489 Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: HGF36060
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGF
• Voltage : 600
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Busbar Connection
• Frame Size : H
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901697473
• GTIN : 00785901697473
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.178
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
