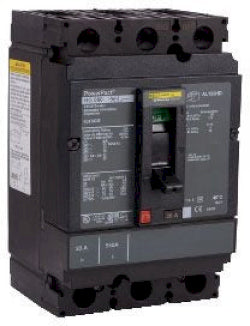

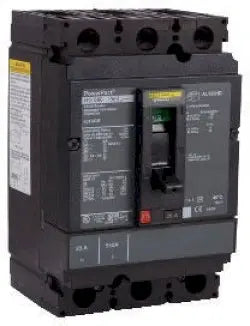

HGF36045 - Square D PowerPacT H 45A 3 Pole 600VAC 18kA Unit Mount Thermal Magnetic Circuit Breaker

HGF36045

HGF36045 is a three-pole, 45A, 600VAC circuit breaker from the Square D PowerPacT H series, designed for reliable protection in industrial and commercial power distribution systems. This unit mount breaker features a thermal magnetic trip unit and a robust 18kA interrupt rating, making it suitable for demanding electrical environments.Engineered for durability and safety, the HGF36045 offers a compact design with busbar terminal connections and is compatible with a wide range of accessories. It is ideal for applications requiring high short-circuit protection and dependable performance.

• Part Number: HGF36045
• Manufacturer: Square D
• Series: PowerPacT H
• Amperage: 45A
• Voltage: 600VAC
• Poles: 3
• Interrupt Rating: 18kA
• Mounting Type: Unit Mount
• Terminal Connection: Busbar
• Tripping Mechanism: Thermal Magnetic
• Continuous Current Rating: 80%
• Certifications: UL 489 Listed, CSA, NEMA, NMX, VDE, BS, CCC, IEC, CE

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: HGF36045
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGF
• Voltage : 600
• Amperage : 45
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Busbar Connection
• Frame Size : H
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.999
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
