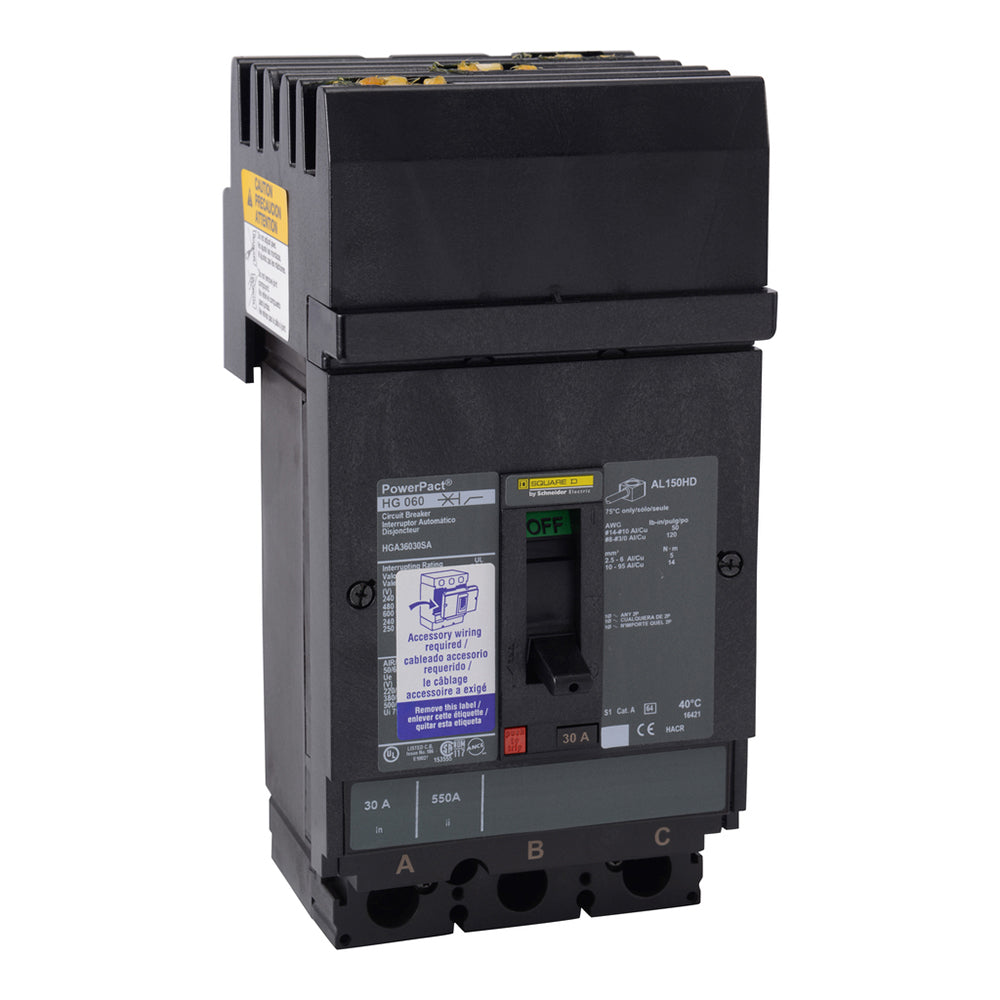

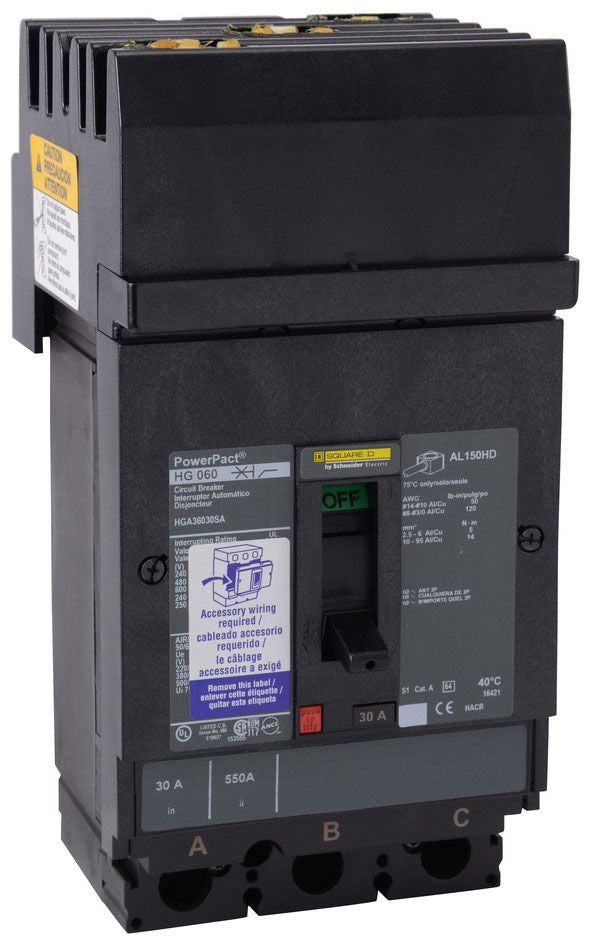

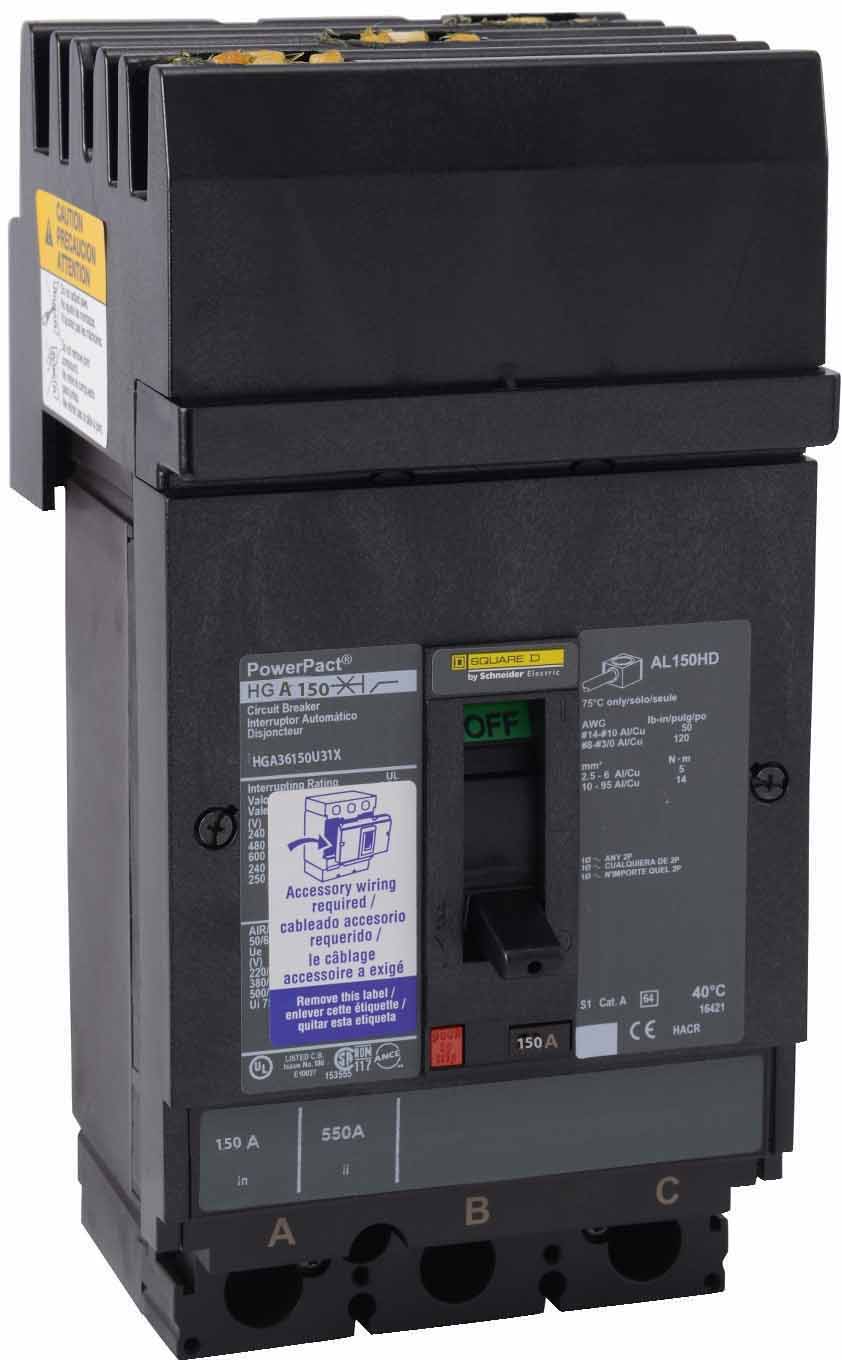

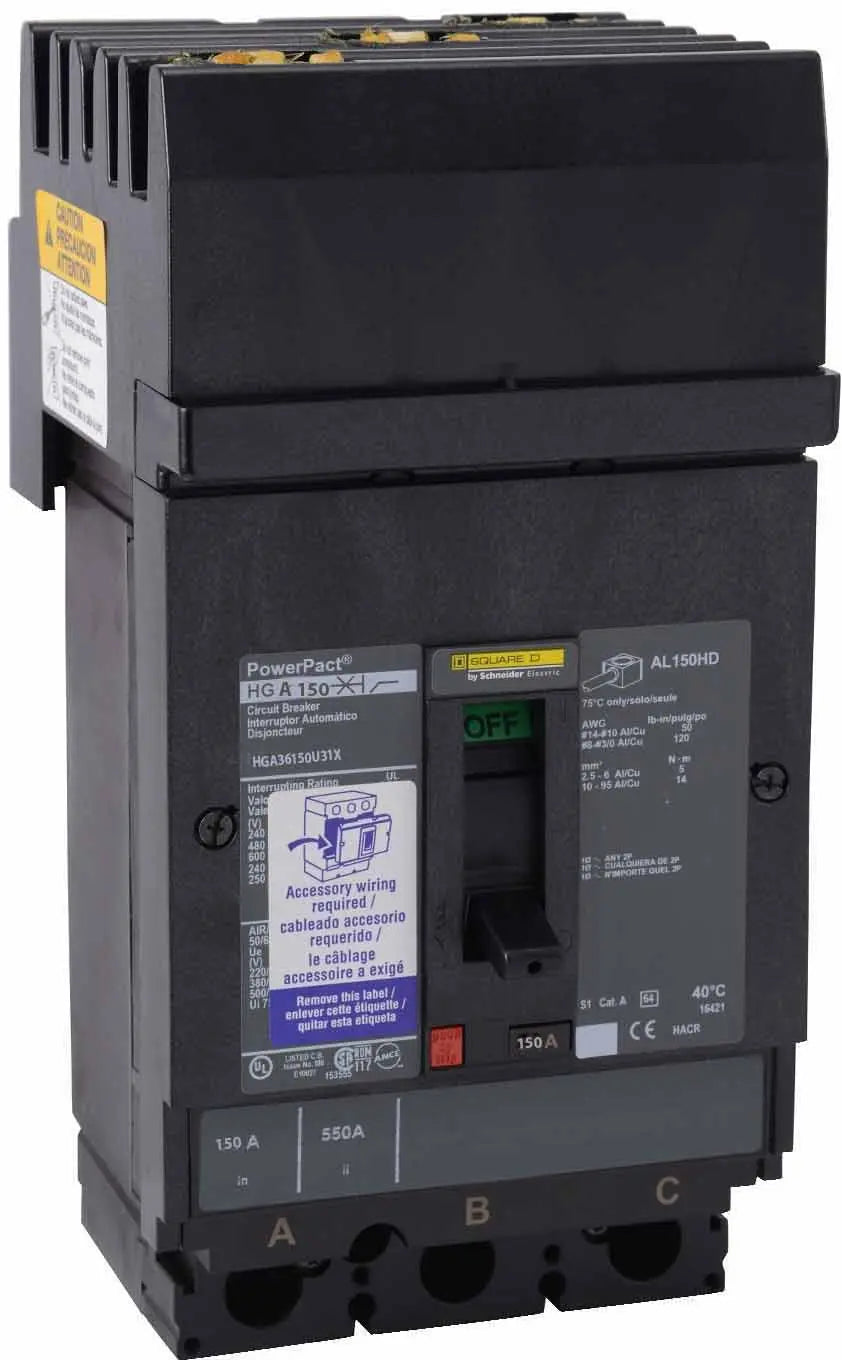

HGA36150U31X - Square D 150A 600V 3 Pole PowerPact H Circuit Breaker I-Line Plug-In

HGA36150U31X

HGA36150U31X is a Square D PowerPact H molded case circuit breaker with a 150 amp rating, 600 volt AC voltage, and 3 poles designed for I-Line plug-in mounting.This circuit breaker features a thermal magnetic trip unit with long time and instantaneous trip functions, high interrupting capacity of 18kA at 600VAC, and is suitable for reverse fed applications. It has an 80% continuous current rating and ABC phase connection. The breaker is UL 489 listed and certified by CSA, NEMA, IEC, and other standards.

Key Specifications
• Amperage: 150A
• Voltage: 600VAC
• Poles: 3
• Frame Type: PowerPact H (HGA)
• Mounting Type: I-Line plug-in
• Interrupt Rating: 18kA at 600VAC
• Trip Unit: Thermal Magnetic with long time and instantaneous trip
• Phase Connection: ABC
• Continuous Current Rating: 80%
• Certifications: UL 489, CSA, NEMA, IEC, CE
• Suitable for reverse fed applications

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HGA36150U31X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGA
• Voltage : 600
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Plug In Panelboard
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : I-Line, Lug
• Frame Size : H
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Solid State
• Phase Connection : ABC

Product Data

• UPC : 785901168461
• GTIN : 00785901168461
• Country of Origin : United States

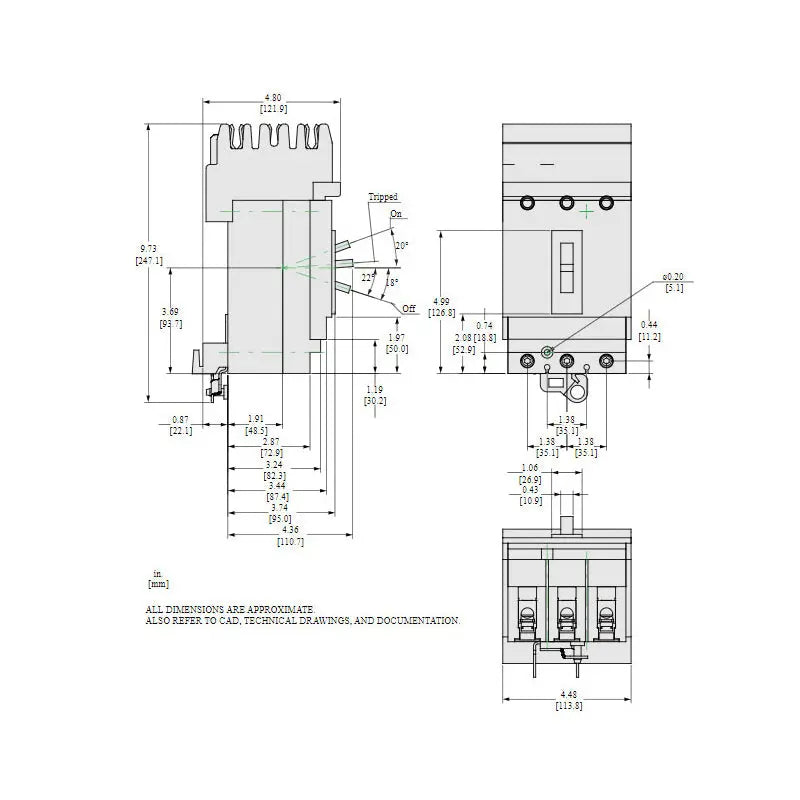

• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 6.382
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
