Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description

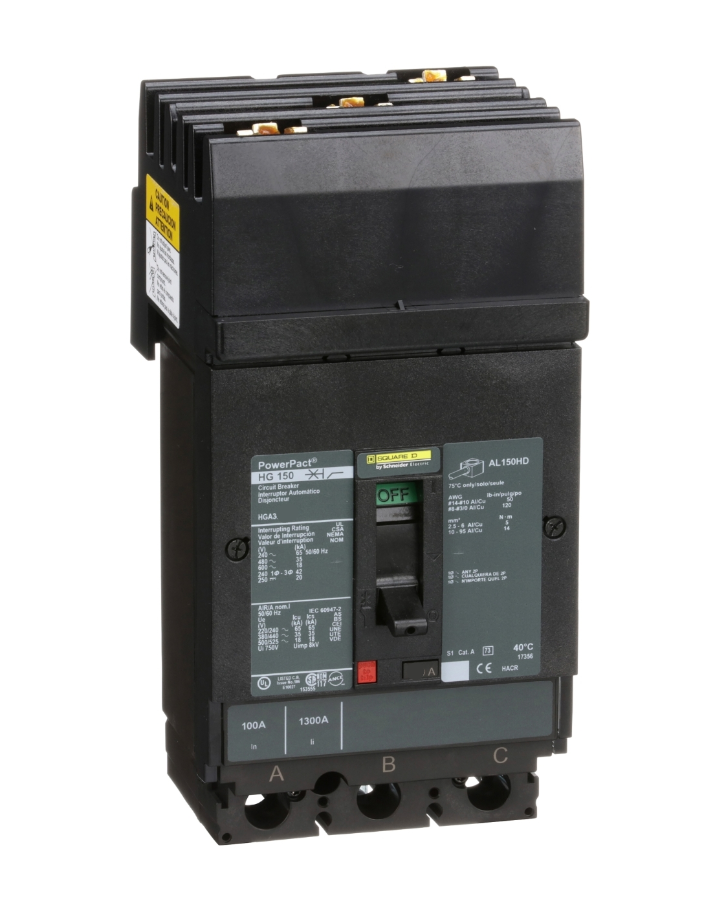

HGA36110UR
HGA36110UR is a Square D 110 Amp, 3 pole thermal magnetic molded case circuit breaker designed for power distribution applications.HGA36110UR features a 600VAC and 250VDC voltage rating with a unit mounting type. It provides reliable protection with a thermal magnetic trip unit and an interrupting rating of 65kA at 240VAC. This breaker complies with UL, CSA, CE, NEMA, NOM, IEC, and RoHS standards.
- Manufacturer: Square D
- Series: HG
- Amperage: 110A
- Voltage Rating: 600VAC, 250VDC
- Poles: 3
- Mounting Type: Unit Mount
- Interrupt Rating: 65kA at 240VAC
- Trip Unit: Thermal Magnetic
- Standards: UL, CSA, CE, NEMA, NOM, IEC, RoHS
- Actuator Type: Toggle
- Max Wire Size: 3 AWG
- Min Wire Size: 14 AWG
Specifications
- Part Number: HGA36110UR
- Manufacturer : Square D
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : HGA
- Voltage : 600
- Amperage : 110
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : I-Line Style Plug-In
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- Weight : 5
