HGA36100US - Square D PowerPacT H 100A 3-Pole 600VAC Molded Case Circuit Breaker

HGA36100US

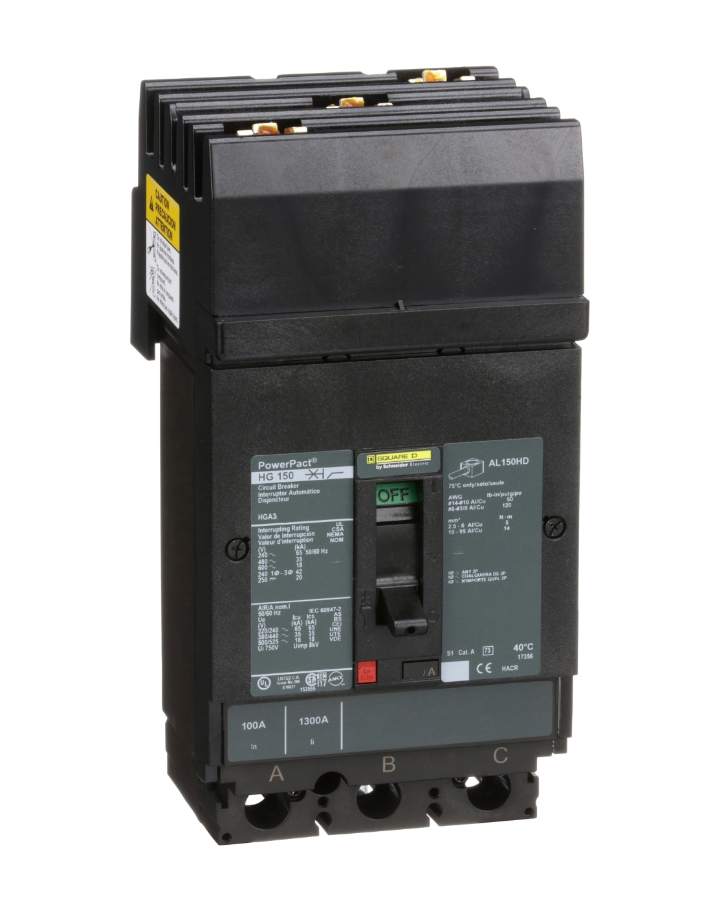

HGA36100US is a Square D PowerPacT H series molded case circuit breaker designed for industrial power distribution applications with thermal-magnetic protection.

This 3-pole circuit breaker features a 100 ampere line-rated current at 600VAC with an 18kA interrupting capacity at 600VAC and 35kA at 480VAC. The breaker utilizes i-line style plug-in mounting and includes long-time and instantaneous (LI) trip functions with thermal-magnetic protection technology. It is rated for 80% continuous current operation and accommodates AWG 14 through 3/0 aluminum or copper terminals. The H-frame design provides a magnetic hold current of 900-1700A adjustable range, making it suitable for reverse-fed applications and Class 612 i-line panel installations.

• Amperage: 100A
• Voltage: 600VAC
• Poles: 3
• Interrupting Capacity: 35kA at 480VAC, 18kA at 600VAC
• Frame Type: H-Frame PowerPacT
• Mounting: I-Line Style Plug-In
• Trip Functions: Long-Time and Instantaneous (LI)
• Protection Type: Thermal-Magnetic
• Continuous Rating: 80%
• Certifications: UL 489, CSA, NEMA, IEC 60947-2

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HGA36100US
• Manufacturer : Square D
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGA
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• Weight : 6
