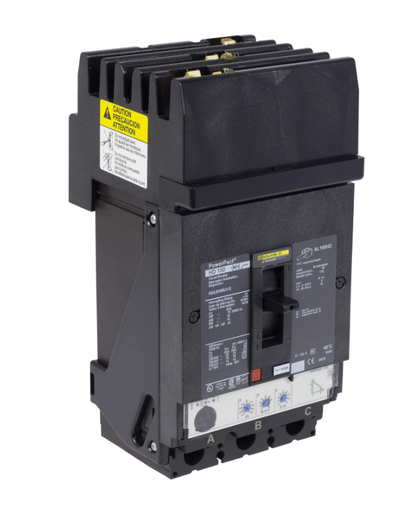

HGA36100U43X - Schneider Electric PowerPact H 100A 3 Pole 600V I-Line Plug-In Circuit Breaker

HGA36100U43X

HGA36100U43X is a 3-pole, 100A, 600VAC PowerPact H-frame molded case circuit breaker designed for reliable protection in commercial and industrial power distribution systems. This breaker features I-Line style plug-in mounting and is equipped with a Micrologic 5.2A trip unit for precise protection and monitoring. This PowerPact H-frame circuit breaker provides advanced protection with LSI (Long-Time, Short-Time, Instantaneous) trip functions and is suitable for high interrupting capacity applications. The breaker is designed for easy installation and maintenance in I-Line bus systems, making it ideal for demanding electrical environments.

• Part Number: HGA36100U43X
• Manufacturer: Schneider Electric
• Series/Frame: PowerPact H
• Poles: 3
• Amperage: 100A
• Voltage: 600VAC
• Mounting Type: I-Line Plug-In
• Interrupt Rating: 18kA @ 600VAC
• Phase: 3-Phase
• Connection: ABC
• Trip Unit: Micrologic 5.2A
• Trip Functions: LSI (Long-Time, Short-Time, Instantaneous)
• UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HGA36100U43X
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGA
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Frame Size : H Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Solid State

Product Data

• UPC : 060648628289
• GTIN : 03606486282892
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 8.001
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
