HGA36030 - Square D PowerPacT H 30A 3 Pole 600/690VAC 35kAIC I-Line Plug-In Molded Case Circuit Breaker, Thermal Magnetic Trip, UL/CSA/CE/NEMA/IEC/NOM Certified

HGA36030

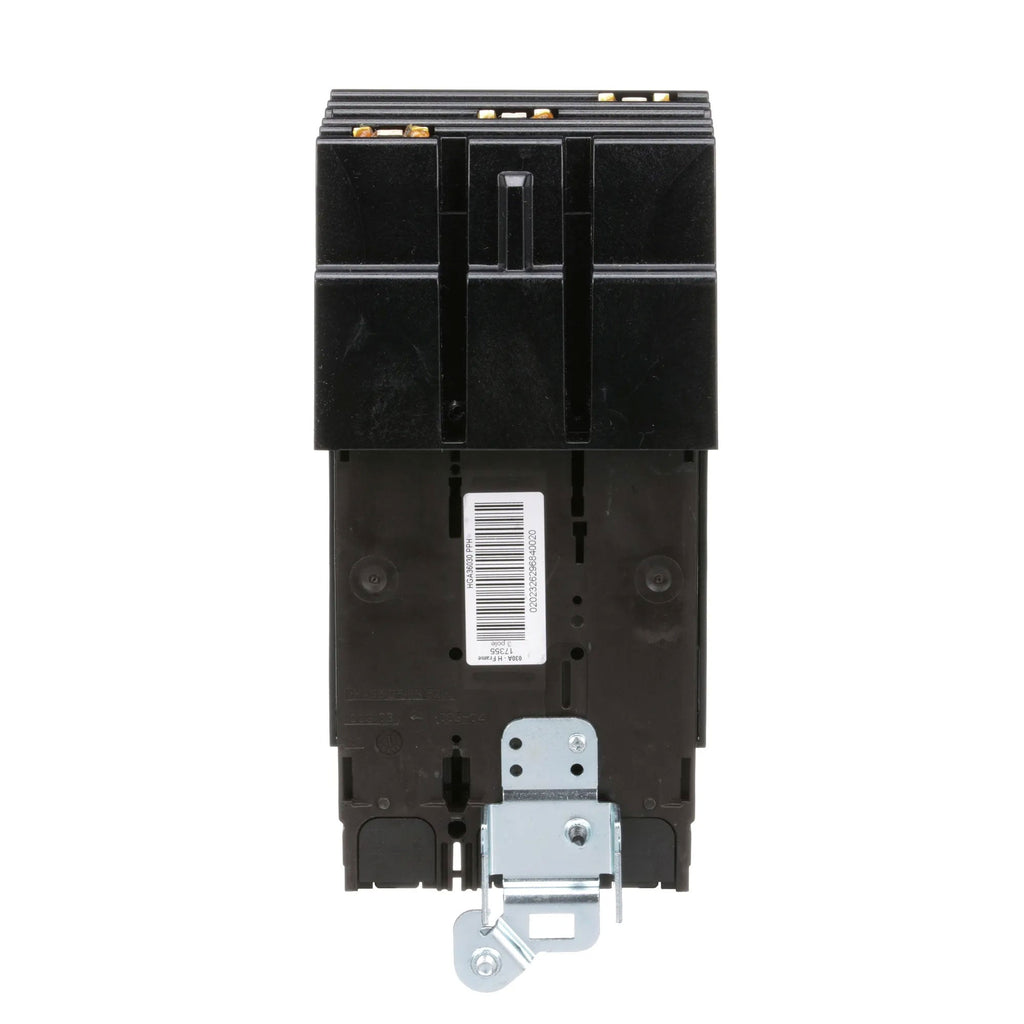

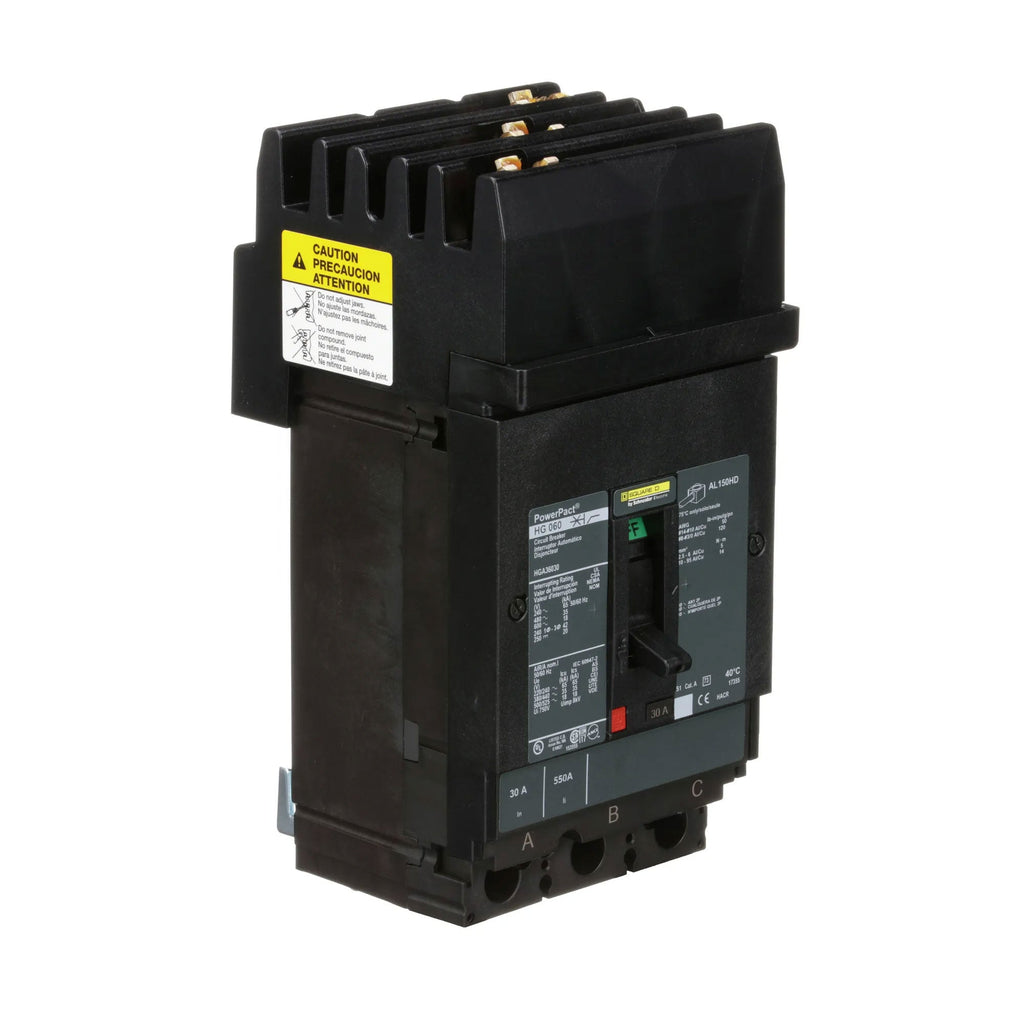

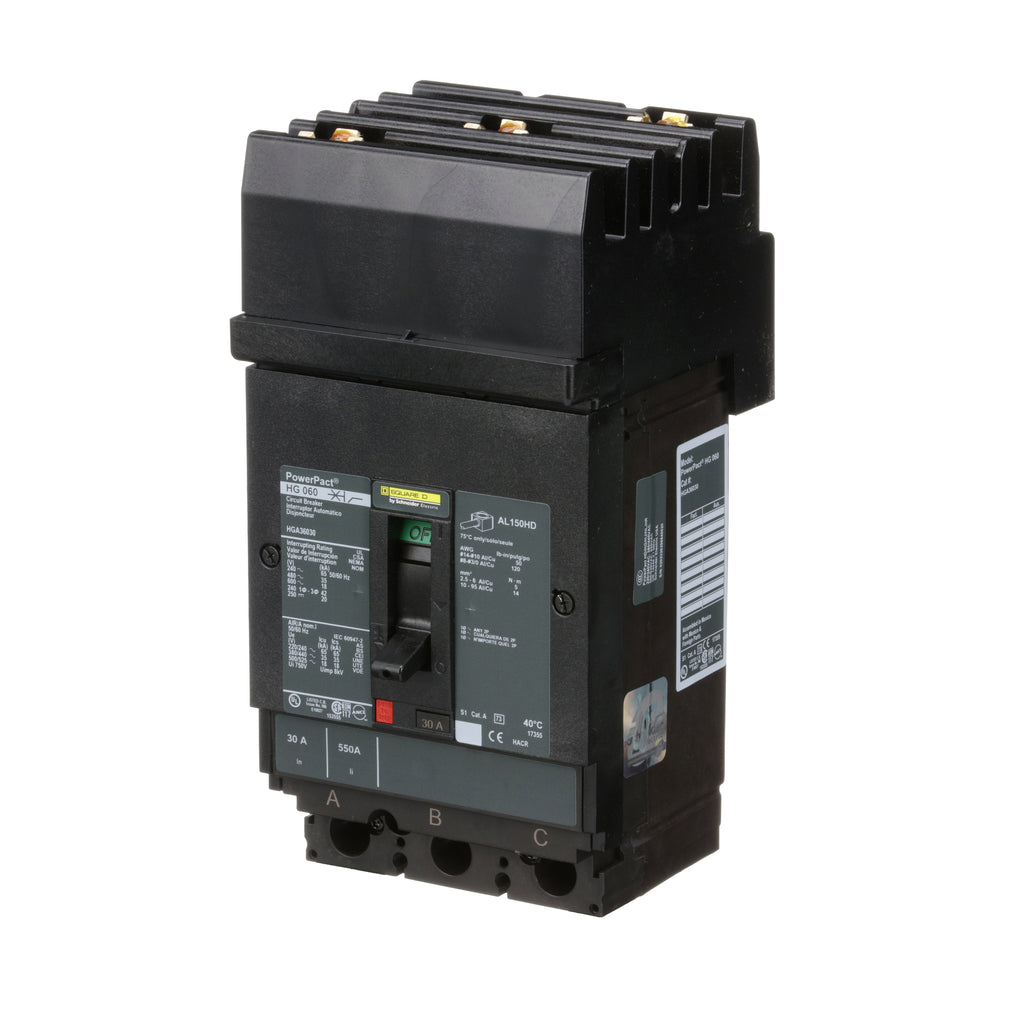

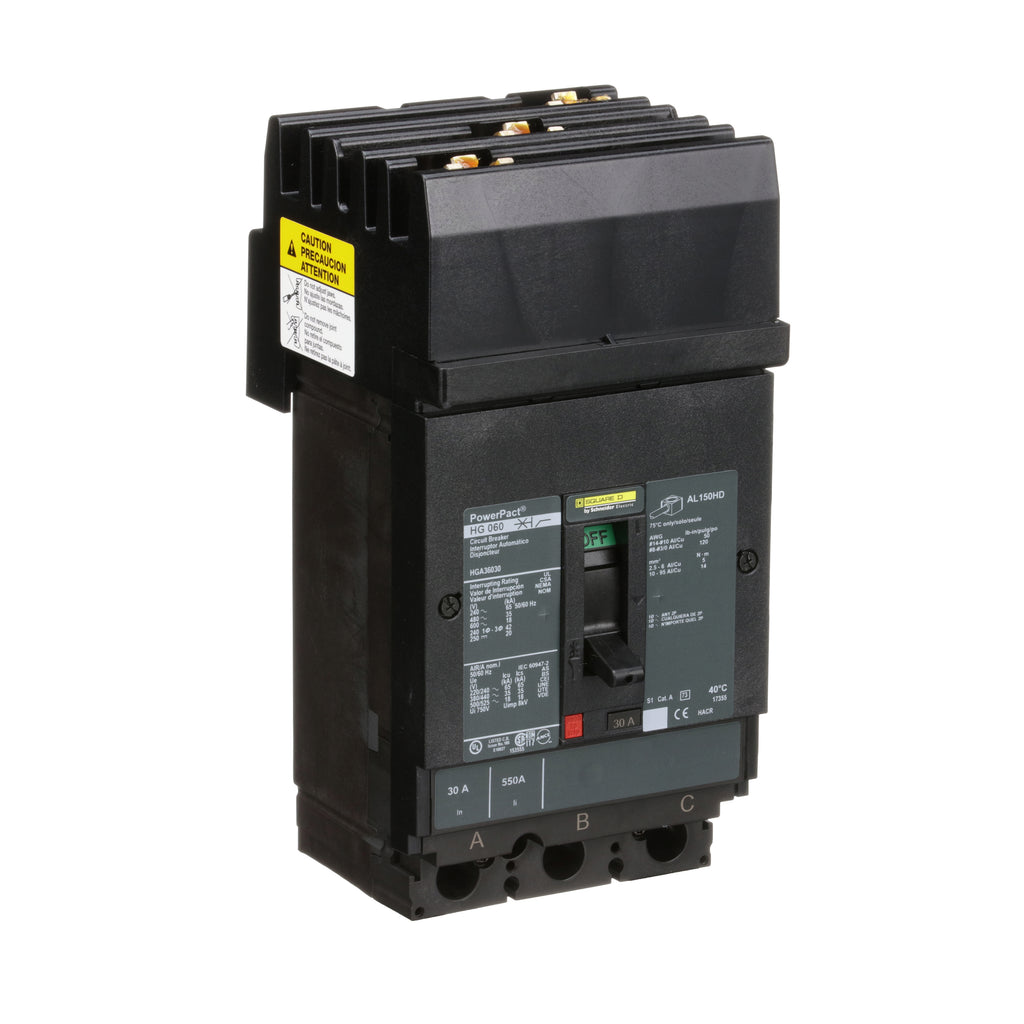

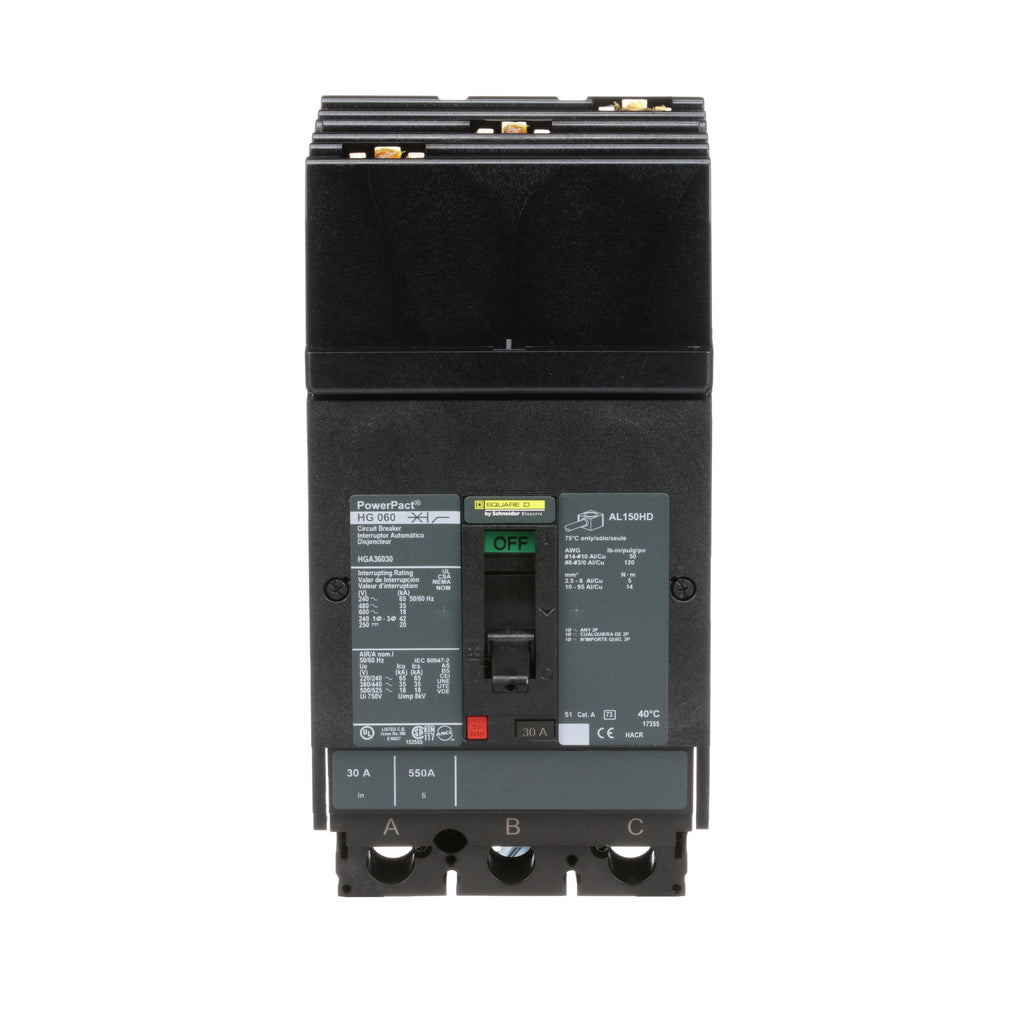

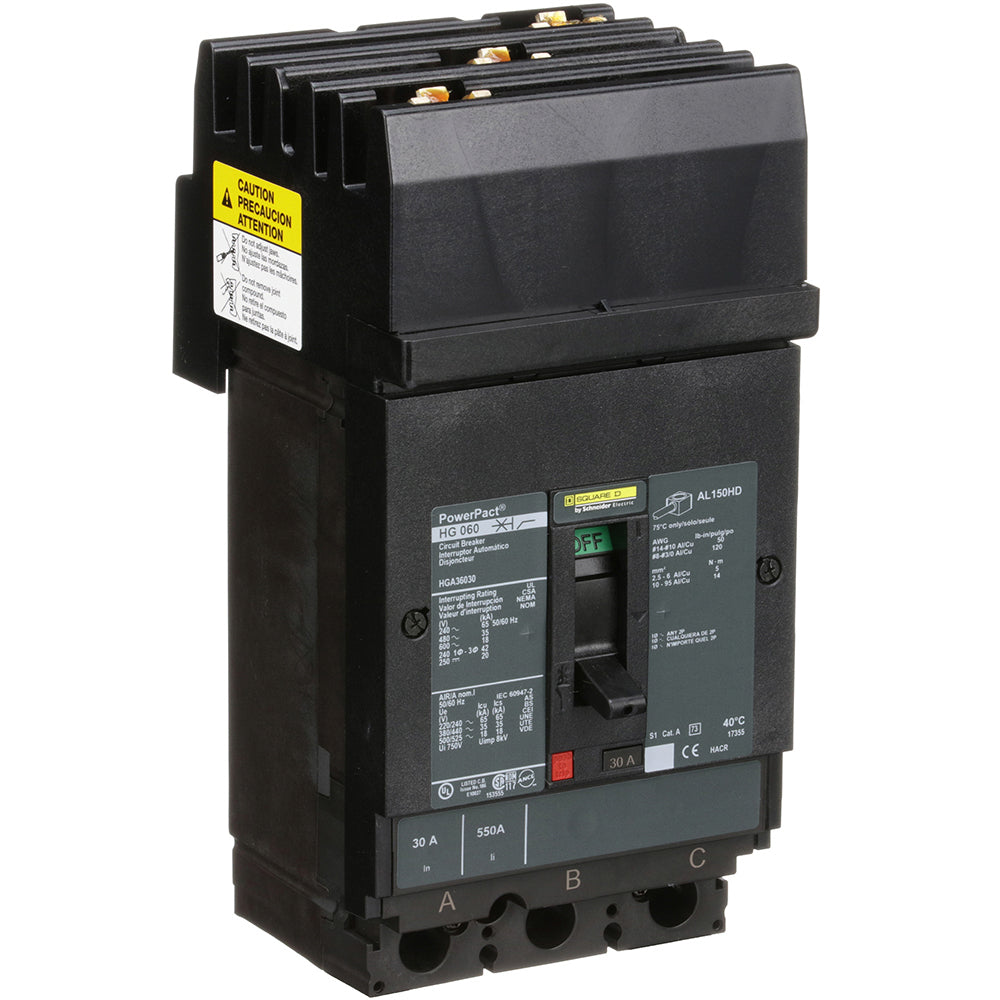

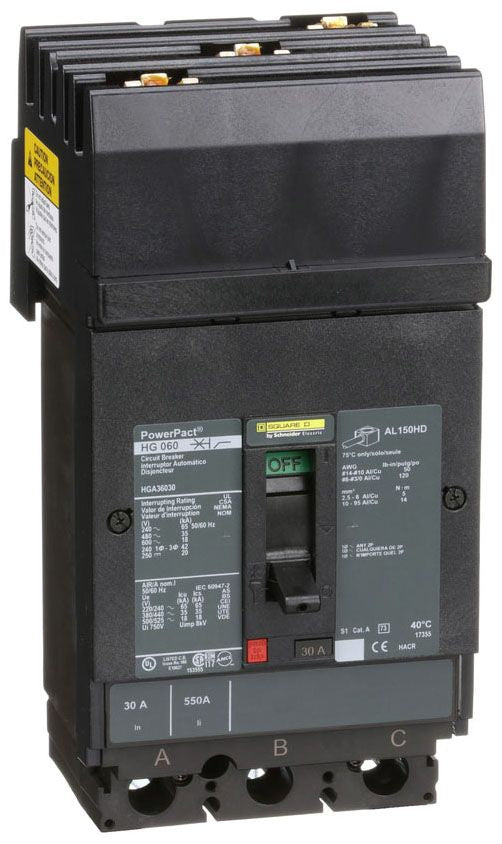

HGA36030 is a Square D PowerPacT H-Frame 3-pole molded case circuit breaker designed for robust circuit protection in commercial and industrial applications.

This thermal magnetic trip unit breaker features a 30A current rating, 600/690VAC voltage rating, and a high interrupting capacity of 35kAIC at 480VAC. It is engineered for I-Line plug-in mounting, making it ideal for Class 611/612 I-Line panelboards and switchboards. The HGA36030 supports both copper and aluminum conductors (AWG 14 to 3/0) and is approved for use in demanding environments with a temperature range of -25 to 70°C. Certifications include UL, CSA, CE, NEMA, IEC, and NOM, ensuring compliance with international standards.

Key Specifications

• Amperage: 30A
• Voltage: 600/690VAC, 250VDC
• Poles: 3
• Mounting Type: I-Line plug-in
• Interrupt Rating: 35kAIC at 480VAC
• Series/Frame: PowerPacT H, HGA frame
• Trip Unit: Thermal magnetic, LI (long-time and instantaneous)
• Certifications: UL, CSA, CE, NEMA, IEC, NOM, HACR
• Connection: Load side lug
• Wire Size: AWG 14 to 3/0, copper or aluminum
• Temperature Range: -25 to 70°C
• Actuator: Toggle

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HGA36030
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGA
• Voltage : 600
• Amperage : 30
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Plug In Panelboard
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 150A/HG
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901601364
• GTIN : 00785901601364
• Country of Origin : Mexico

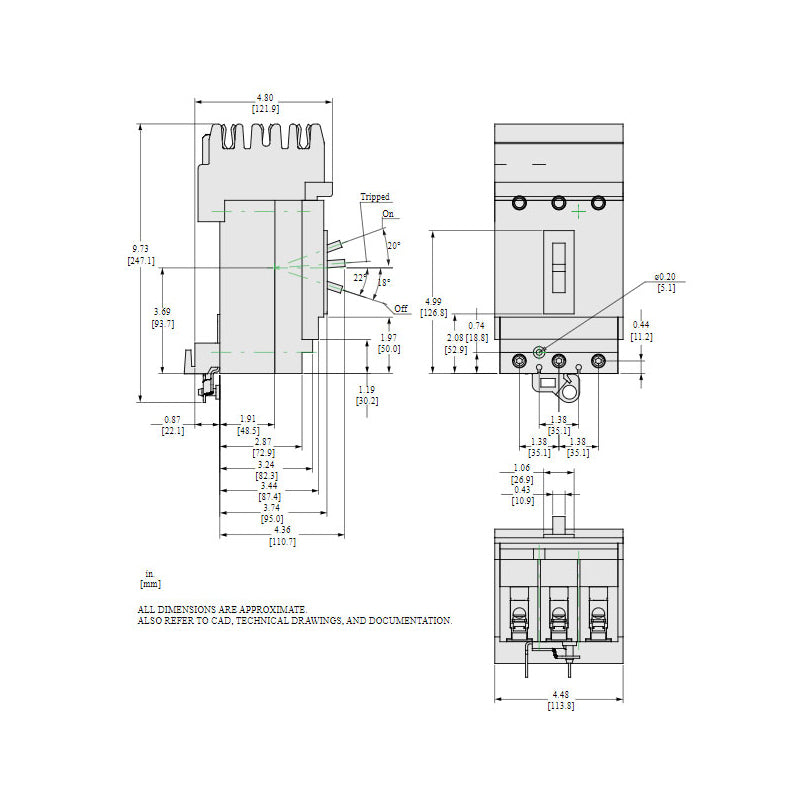

• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5.501
• Panel Type : I Line Panelboards
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
