HGA261001 - Square D PowerPact H 100A 2 Pole 600V Thermal Magnetic Molded Case Circuit Breaker I-Line Mount

Save $791.66
SKU: HGA261001-New
Condition: New
Price:
$767.34 $1,559.00
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

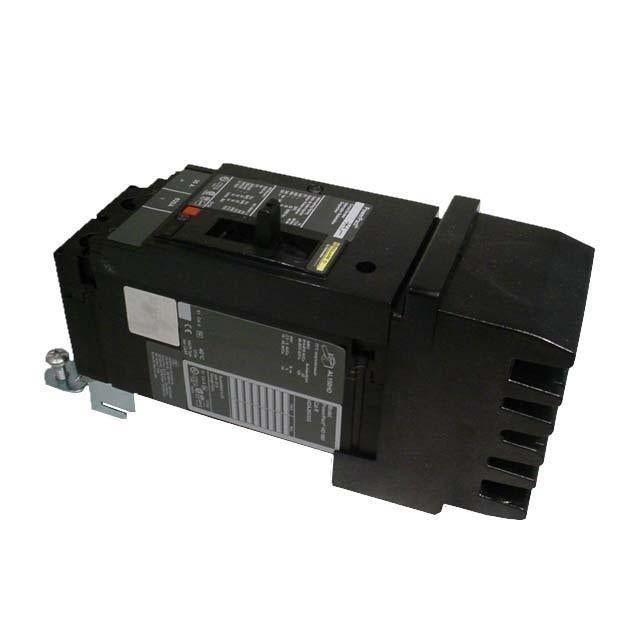

HGA261001 - Square D I-Line Style Plug-In 100 Amp 2 Pole Circuit Breaker - Essential Electric Supply
HGA261001 - Square D Plug In Panelboard 600V 100A 2 pole circuit breaker 35kA@480V - Essential Electric Supply
HGA261001 - Square D PowerPact H 100A 2 Pole 600V Thermal Magnetic Molded Case Circuit Breaker I-Line Mount - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
HGA261001 - Square D I-Line Style Plug-In 100 Amp 2 Pole Circuit Breaker - Essential Electric Supply
HGA261001 - Square D Plug In Panelboard 600V 100A 2 pole circuit breaker 35kA@480V - Essential Electric Supply
HGA261001 - Square D PowerPact H 100A 2 Pole 600V Thermal Magnetic Molded Case Circuit Breaker I-Line Mount - Essential Electric Supply

Description

HGA261001


HGA261001 is a Square D PowerPact H series 100A 2 pole thermal magnetic molded case circuit breaker designed for I-Line mounting applications, providing reliable overload and short circuit protection for commercial and industrial power systems. This circuit breaker features a robust H frame construction, 600V AC maximum voltage rating, and is suitable for use in I-Line busway systems. It offers high interrupting capacity and is UL listed for safety and compliance in demanding environments.
  • Part Number: HGA261001
  • Manufacturer: Square D
  • Series/Frame: PowerPact H
  • Amperage: 100A
  • Poles: 2 Pole
  • Maximum Voltage: 600V AC
  • Mounting Type: I-Line
  • Interrupt Rating: 18kA @ 600V, 35kA @ 480V, 65kA @ 240V
  • Trip Unit: Thermal Magnetic
  • Certifications: UL 489, CSA, CE, RoHS
  • Standards: IEC 60947-2, HACR Rated
  • Application: Overload and short circuit protection
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: HGA261001
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : HGA
  • Voltage : 600
  • Amperage : 100
  • Phase : 1
  • Poles : 2
  • AIC rating : 35kA@480V
  • Connection : Plug In Panelboard
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : Lug
  • Frame Size : 150A/HG
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 3 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : AB

Product Data

  • UPC : 785901651529
  • GTIN : 00785901651529
  • Country of Origin : Mexico
  • Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
  • Weight : 4.2
  • Panel Type : I Line Panelboards
  • Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification : UL, CSA, NOM
  • Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
