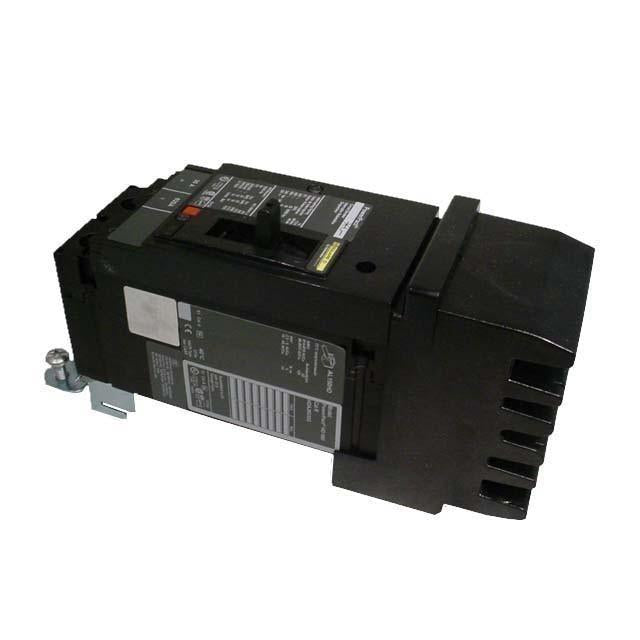

HGA260904 - Square D 90 Amp 600 Volt 2 Pole Thermal Magnetic Circuit Breaker I-Line Plug-In

HGA260904

HGA260904 is a Square D 2 pole circuit breaker rated for 90 amps and 600 volts with thermal magnetic trip unit and I-Line plug-in mounting.This molded case circuit breaker features a Powerpact H frame with a 150A/HG frame size, designed for reliable protection with long-time and instantaneous trip functions. It offers high interrupt ratings of up to 65 kA at 240 V AC and 20 kA at 500 V DC, suitable for demanding electrical applications. The breaker is UL listed and supports reverse fed applications.

• Manufacturer: Square D
• Part Number: HGA260904
• Amperage: 90 A
• Voltage Rating: 600 V AC/DC
• Poles: 2
• Frame Type: H (Powerpact H)
• Mounting: I-Line Style Plug-In
• Trip Unit: Thermal Magnetic (Long-Time and Instantaneous)
• Interrupt Rating: 65 kA @ 240 V AC, 35 kA @ 480 V AC, 18 kA @ 600 V AC, 20 kA @ 500 V DC
• Series: HG
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HGA260904
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HGA
• Voltage : 600
• Amperage : 90
• Phase : 1
• Poles : 2
• AIC rating : 35kA@480V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous
• Frame Size : H Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 094705148945
• GTIN : 00785901542421
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.001
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
