Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
HGA260802

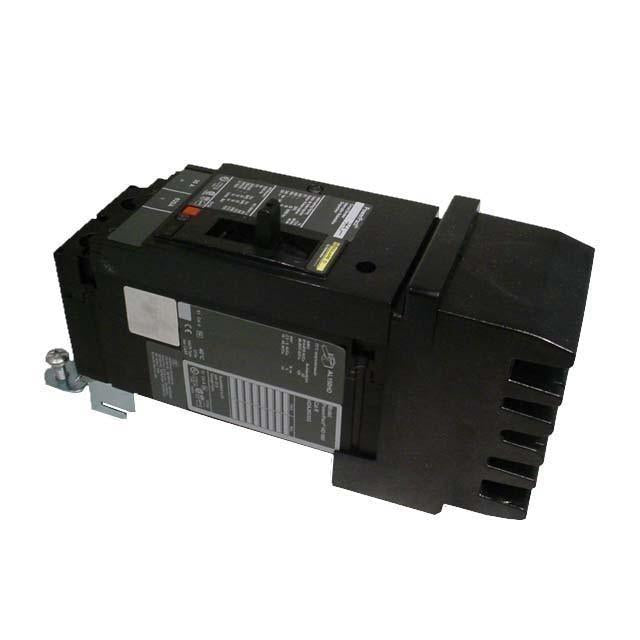

HGA260802 is a Square D PowerPact H molded case circuit breaker designed for industrial and commercial power distribution applications.
This thermal-magnetic circuit breaker features a 2-pole configuration with an 80-amp line rated current and 600VAC voltage rating. The H-Frame design provides reliable protection with an 18kA interrupt rating at 600V and 35kA at 480V. The I-Line mounting configuration allows for flexible installation in standard electrical enclosures. With an 80% continuous current rating and 800A magnetic hold current, this breaker delivers consistent performance in demanding electrical systems.
- Part Number: HGA260802
- Manufacturer: Square D (Schneider Electric)
- Frame Type: H-Frame
- Amperage: 80A
- Poles: 2
- Voltage: 600VAC
- Trip Unit: Thermal-Magnetic
- Interrupt Rating: 18kA @ 600V, 35kA @ 480V
- Mounting: I-Line
- Magnetic Hold Current: 800A
- Continuous Current Rating: 80%
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: HGA260802
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : HGA
- Voltage : 600
- Amperage : 80
- Phase : 1
- Poles : 2
- AIC rating : 35kA@480V
- Connection : Plug In Panelboard
- Functions : Long Time and Instantaneous
- Terminal Connection : Lug
- Frame Size : 150A/HG
- Temp Rating : -13–158 °F (-25–70 °C)
- MCM Size : Min. Wire Size 14 AWG Max. Wire Size 3 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
- Phase Connection : AC
Product Data
- UPC : 785901491071
- GTIN : 00785901491071
- Country of Origin : Mexico
- Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
- Weight : 3.001
- Panel Type : I Line Panelboards
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- Certification : UL, CSA, NOM
- Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
