Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
HFXD63B250

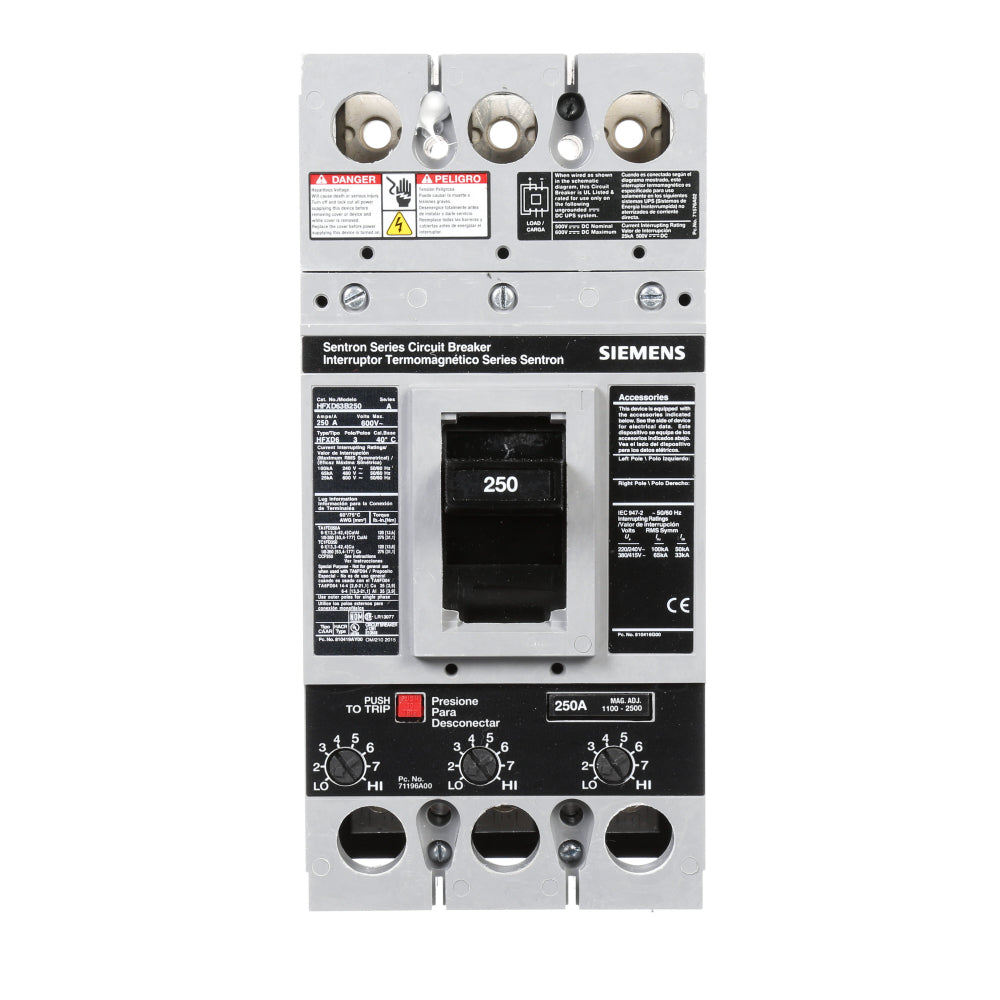

HFXD63B250 - Siemens 3-pole molded case circuit breaker with thermal magnetic trip, rated at 250A and 600V.The Siemens HFXD63B250 features a HFXD frame, bolt-on mounting, and LI long-time and instantaneous protection functions. It provides an interrupting rating of 25kAIC at 600V and 65kAIC at 480V, suitable for 3-phase applications with UL and IEC approvals.
- Part Number: HFXD63B250
- Manufacturer: Siemens
- Frame/Series: HFXD
- Amperage: 250A
- Voltage: 600VAC
- Poles: 3
- Phase: 3
- Mounting Type: Bolt-On
- Trip Unit: Thermal Magnetic
- Functions: LI (Long-Time, Instantaneous)
- Interrupt Rating: 25kAIC@600V, 65kAIC@480V
- Approvals: UL, IEC
Additional Information
Lugs are not included and must be purchased separately
Specifications
- Part Number: HFXD63B250
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : HFXD
- Voltage : 600 AC
- Amperage : 250
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : FD Frame
- Temp Rating : 104 ¡F (40 ¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643318519
- GTIN : 00783643318519
- Country of Origin : Mexico
- Dimensions : 5.906 x 9.843 x 6.693 (W x H x D) Inches
- Weight : 8.501 lb
- Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
- Certification : UL, IEC
