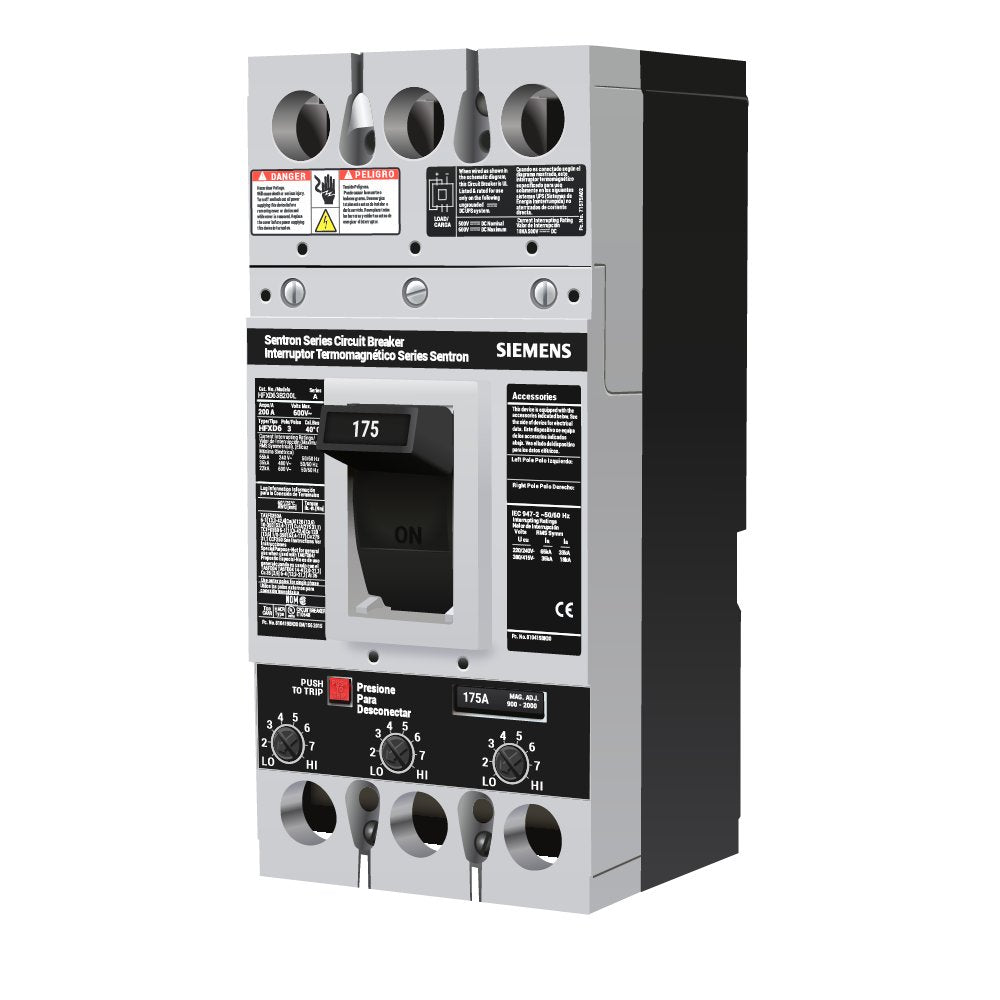

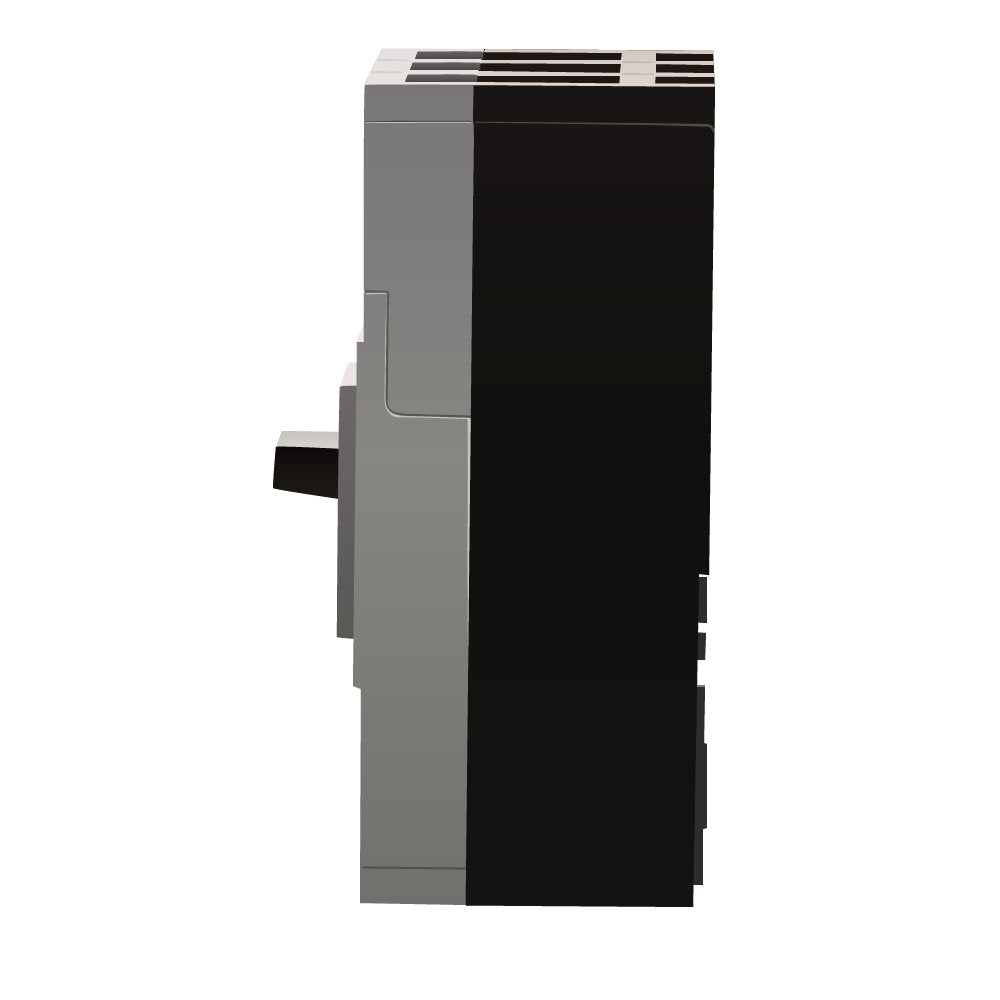

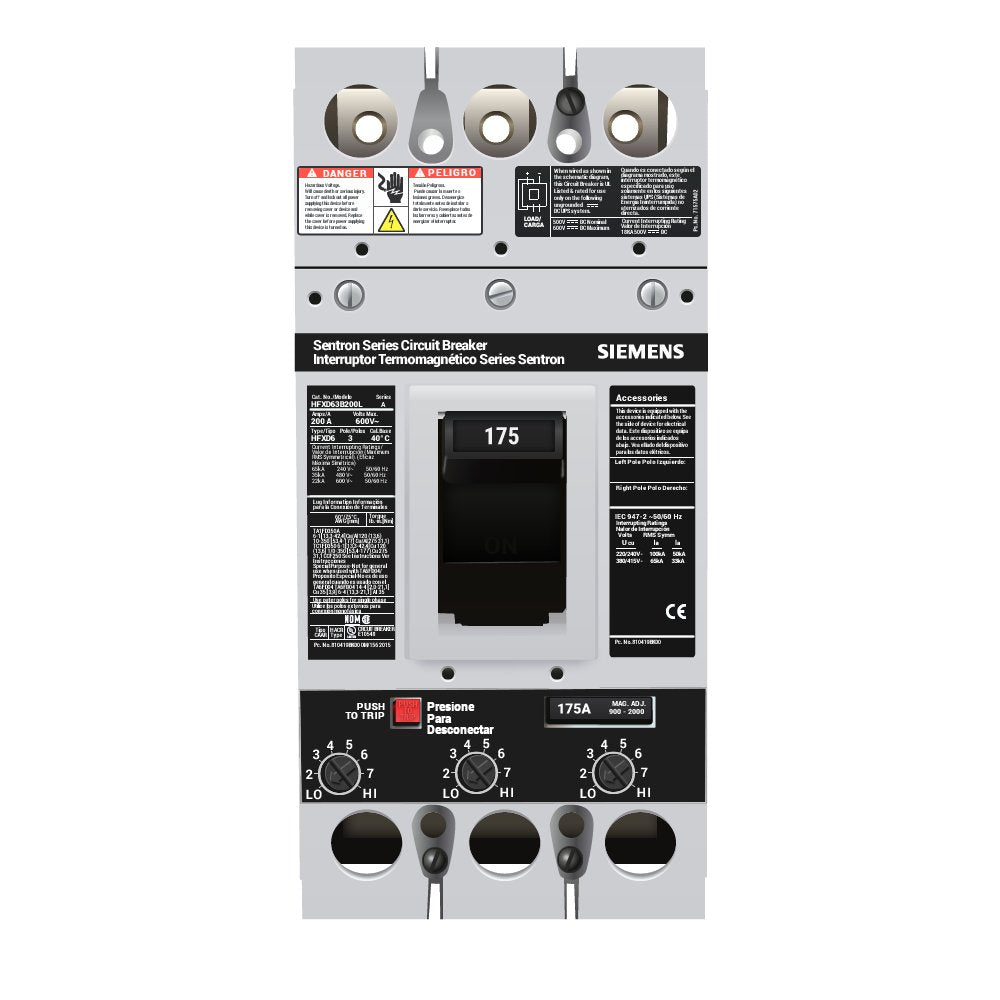

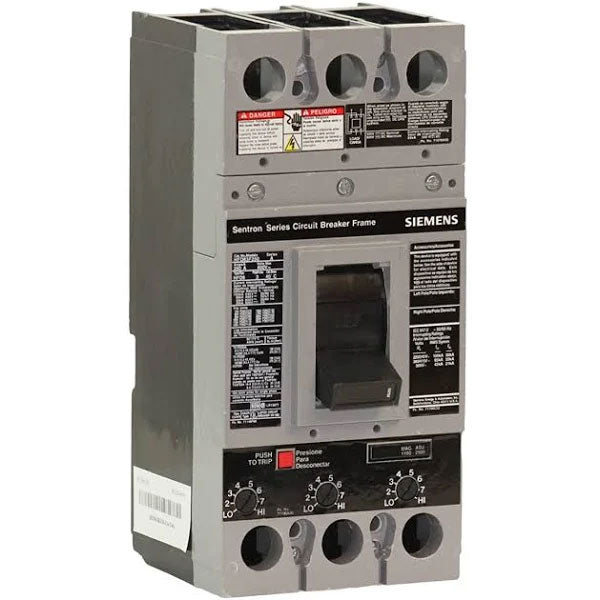

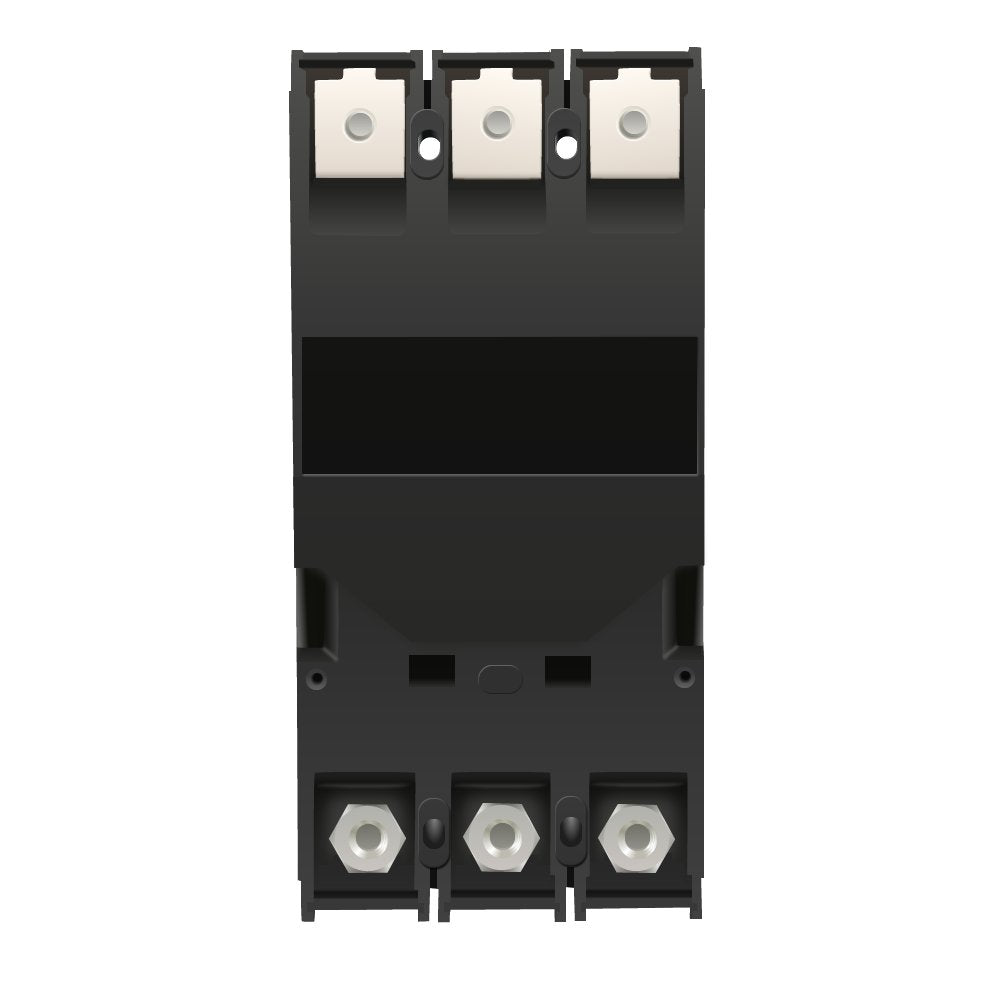

HFXD63B175L - Siemens Sentron FXD 3 Pole 175A 600V Molded Case Circuit Breaker

HFXD63B175L

HFXD63B175 - Siemens Sentron molded case circuit breaker with thermal magnetic trip, 3-pole, 175A rating, and FD frame.This Siemens HFXD63B175 is a type FXD6 low voltage circuit breaker featuring a non-interchangeable thermal magnetic trip unit with 900-2000A trip range. It provides standard breaking capacity rated at 22kA at 600VAC and 35kA at 480V, designed for 40 deg C operation in motor circuit applications as disconnecting means and short circuit protection.

• Part Number: HFXD63B175
• Manufacturer: Siemens
• Type: Sentron Molded Case Circuit Breaker
• Frame: FD (FXD6)
• Amperage: 175A
• Voltage: 600VAC
• Poles: 3
• Phase: 3
• Trip Type: Thermal Magnetic
• Trip Range: 900-2000A
• Interrupt Rating: 22kA@600V, 35kA@480V
• Mounting: Bolt-On / Freestanding

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Line and load side lugs included (TA1FD350A)

Specifications

• Part Number: HFXD63B175L
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : HFXD
• Voltage : 600 AC
• Amperage : 175
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Frame Size : FD Frame
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643084513
• GTIN : 00783643084513
• Country of Origin : Mexico
• Dimensions : 5.906 x 9.843 x 6.693 (W x H x D) Inches
• Weight : 9.017
• Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
• Certification : Ul Listed
• Wire Size : AWG 6 to 350KCM, Cu, AWG 4 to 350KCM, Al
