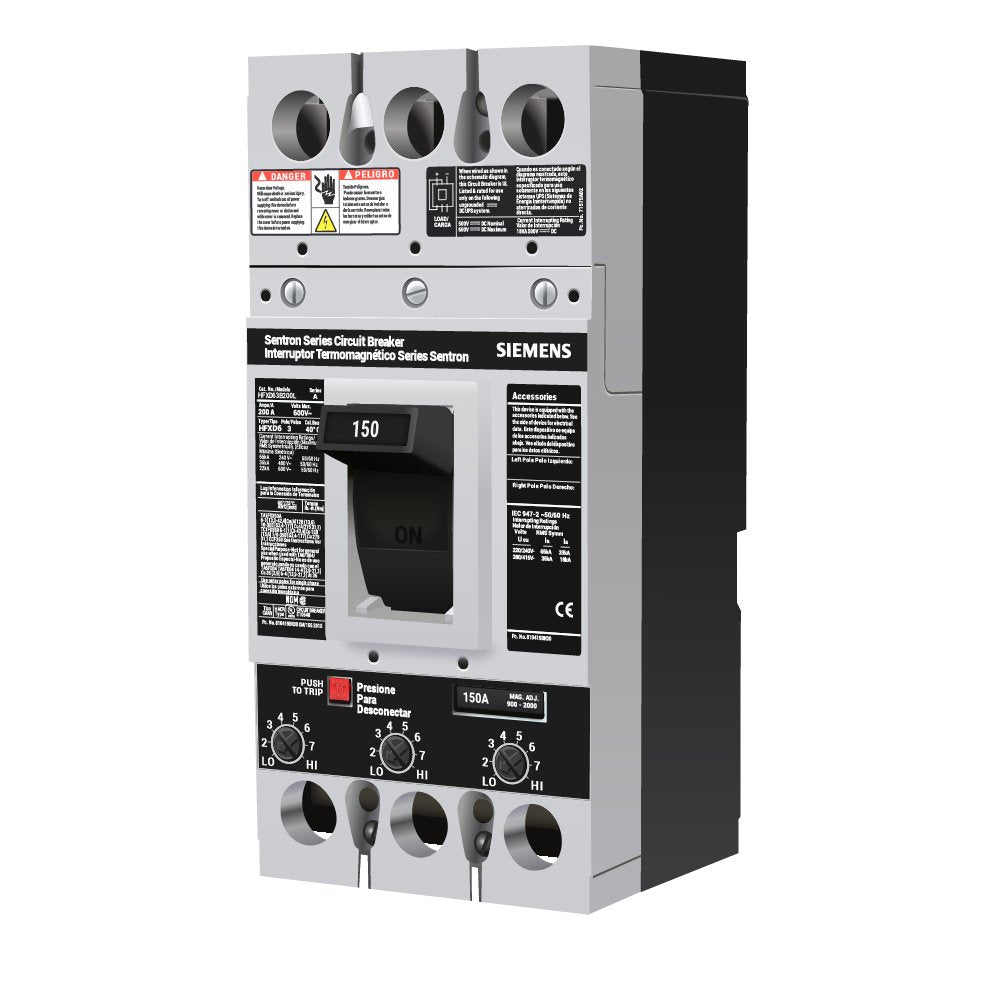

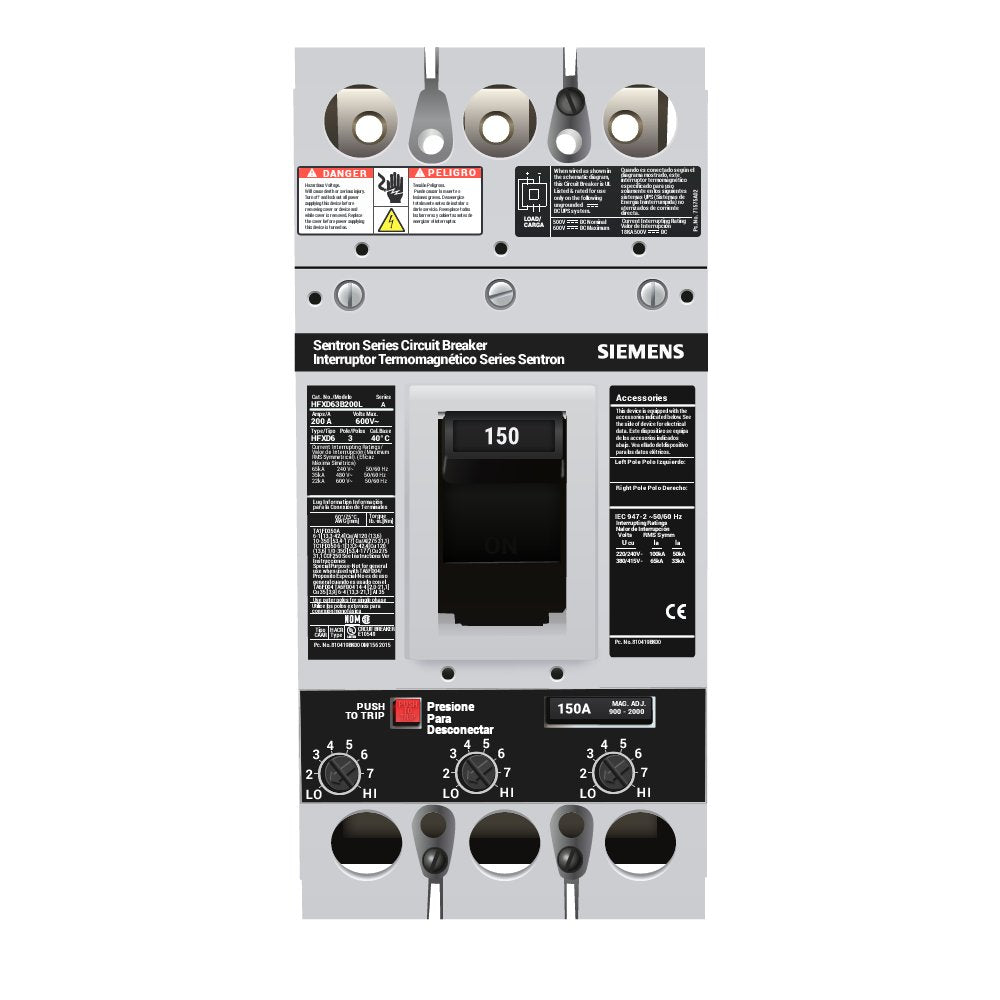

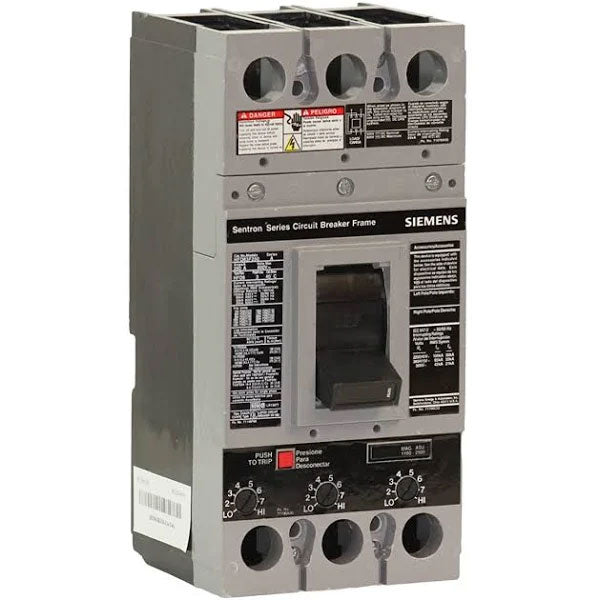

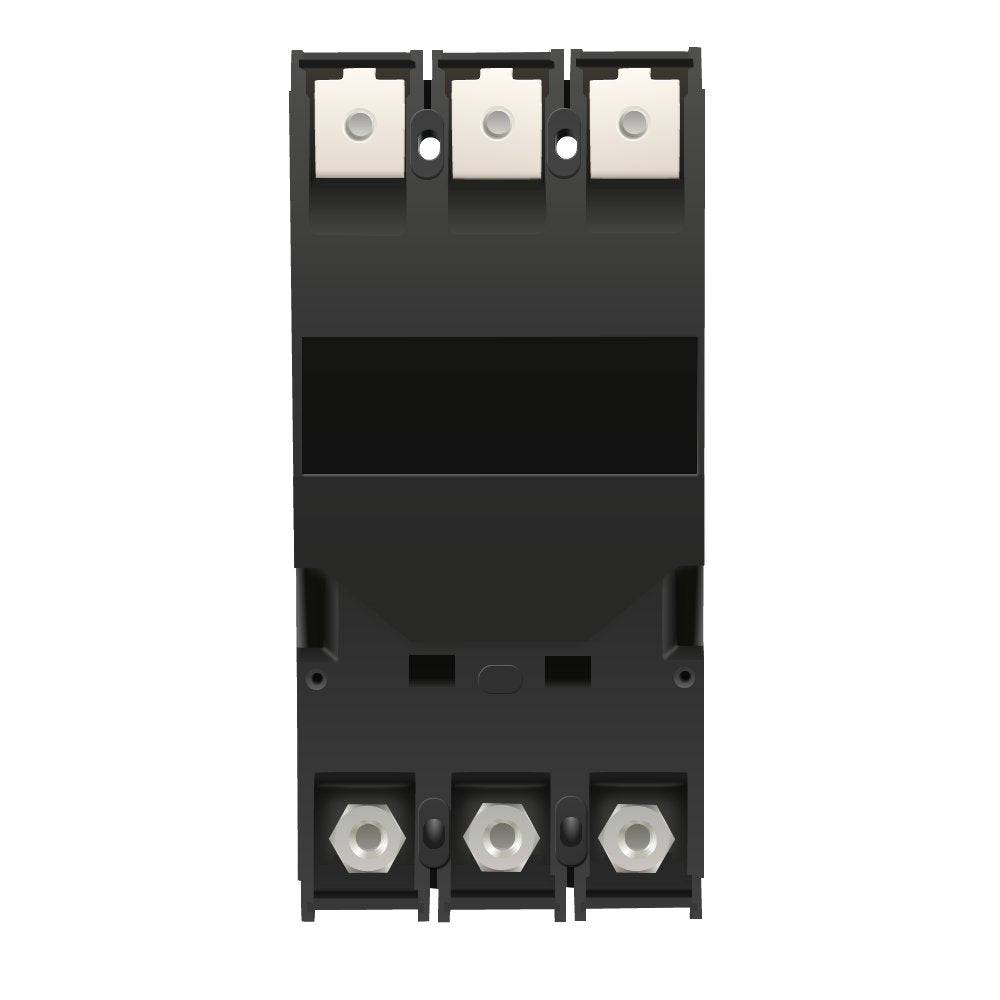

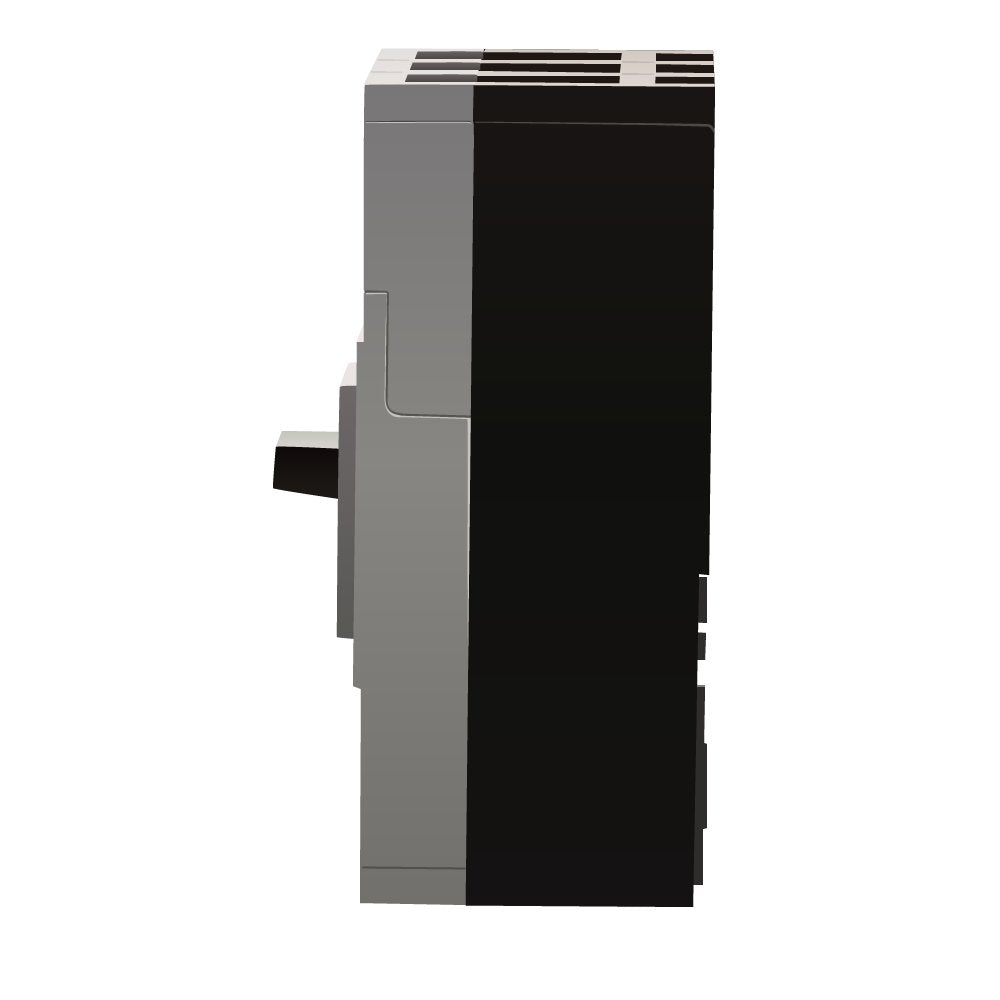

HFXD63B150L - Siemens 150A 3 Pole 600V Molded Case Circuit Breaker FXD Frame Thermal Magnetic Trip

HFXD63B150L

HFXD63B150 - Siemens Sentron Series molded case circuit breaker, 3-pole, 150A, thermal magnetic trip with long-time and instantaneous functions.This FD frame breaker features standard breaking capacity at 40 degrees C, bolt-on mounting, and non-interchangeable trip unit. Rated for 600V AC, 3-phase applications with 35kA interrupt at 480V and 22kA at 600V. UL listed for reverse feed, suitable for line/load lug connections.

• Part Number: HFXD63B150
• Manufacturer: Siemens
• Frame: FD
• Amperage: 150A
• Voltage: 600V AC
• Poles: 3
• Phase: 3
• Mounting: Bolt-On
• Trip Type: Thermal Magnetic
• Trip Functions: LI (Long-Time, Instantaneous)
• Interrupt Rating: 35kA@480V, 22kA@600V
• Temperature Rating: 40C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Line and load side lugs included (TA1FD350A)

Specifications

• Part Number: HFXD63B150L
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : HFXD
• Voltage : 600 AC
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Frame Size : FD Frame
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643084506
• GTIN : 00783643084506
• Country of Origin : Mexico
• Dimensions : 5.906 x 9.843 x 6.693 (W x H x D) Inches
• Weight : 9.017
• Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
• Certification : Ul Listed
• Wire Size : AWG 6 to 350KCM, Cu, AWG 4 to 350KCM, Al
