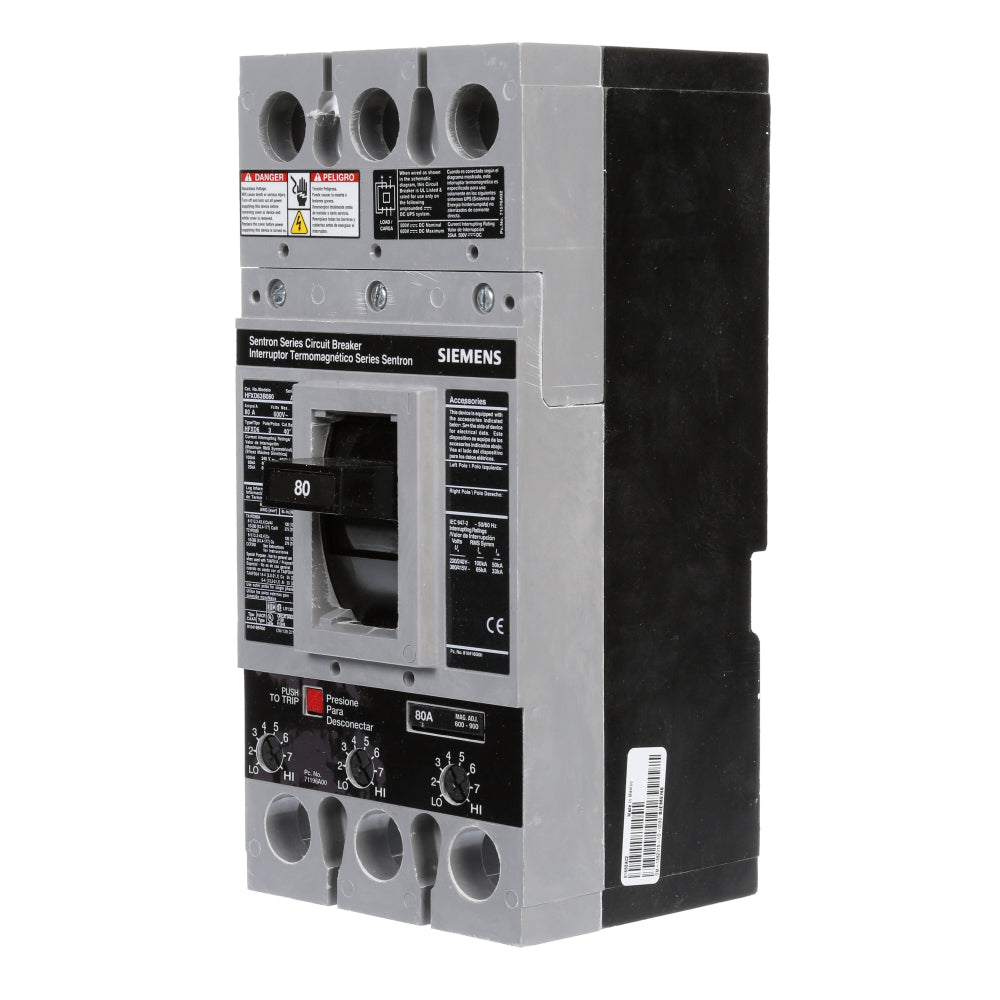

HFXD63B080 - Siemens 3 Pole 80A 600V Molded Case Circuit Breaker

HFXD63B080

HFXD63B080 is a 3-pole molded case circuit breaker from Siemens designed for standard 40 degree C ambient applications with high breaking capacity and non-interchangeable trip unit. This low voltage Sentron breaker features thermal-magnetic trip protection and is rated for 80 amperes at 600VAC, making it suitable for industrial and commercial power distribution systems. The FD frame design provides 100% rated frames with field-installable external accessories and series-connected short circuit ratings for enhanced flexibility and protection.

• Amperage: 80A
• Voltage: 600VAC
• Poles: 3
• Frame: FD
• Trip Unit: Thermal-Magnetic
• Interrupt Rating: 25kAIC at 600VAC
• Mounting: Molded Case
• Certifications: UL 489, IEC 60947-2
• Ambient Temperature: Standard 40 degree C
• Breaking Capacity: High

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Lugs are not included and must be purchased separately

Specifications

• Part Number: HFXD63B080
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : HFXD
• Voltage : 600 AC
• Amperage : 80
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Frame Size : FD Frame
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643318434
• GTIN : 00783643318434
• Country of Origin : Mexico
• Dimensions : 5.906 x 9.843 x 6.693 (W x H x D) Inches
• Weight : 7.5
• Panel Type : S4, P4, SPP, F1,FC1, FCII, CDP-5, CDP-6, SB1-3, S5, P5, SPP/FPP, F2
