HFDE308033 - Cutler Hammer 80A 600V 3 Pole F Frame Molded Case Circuit Breaker with Electronic LS Trip, 65kAIC @ 480V, Bolt-On Mount, UL/CSA/CE Certified

HFDE308033

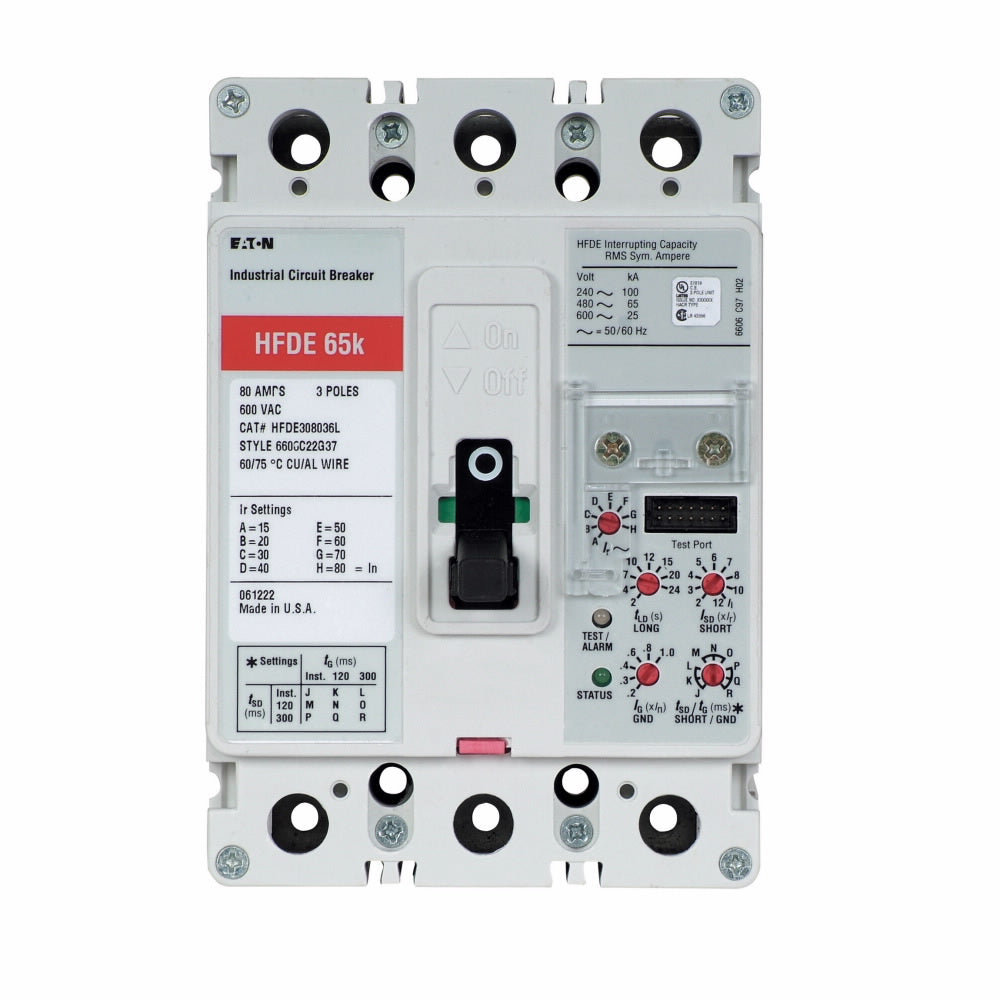

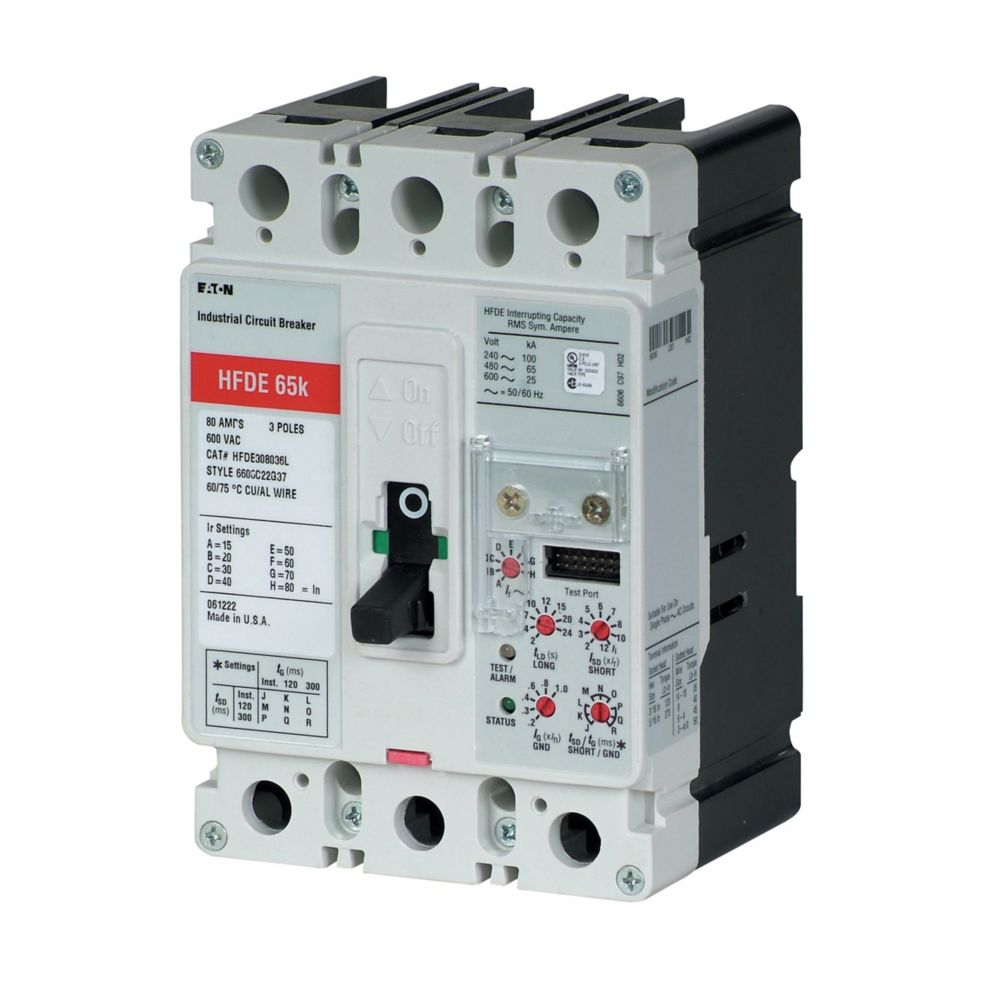

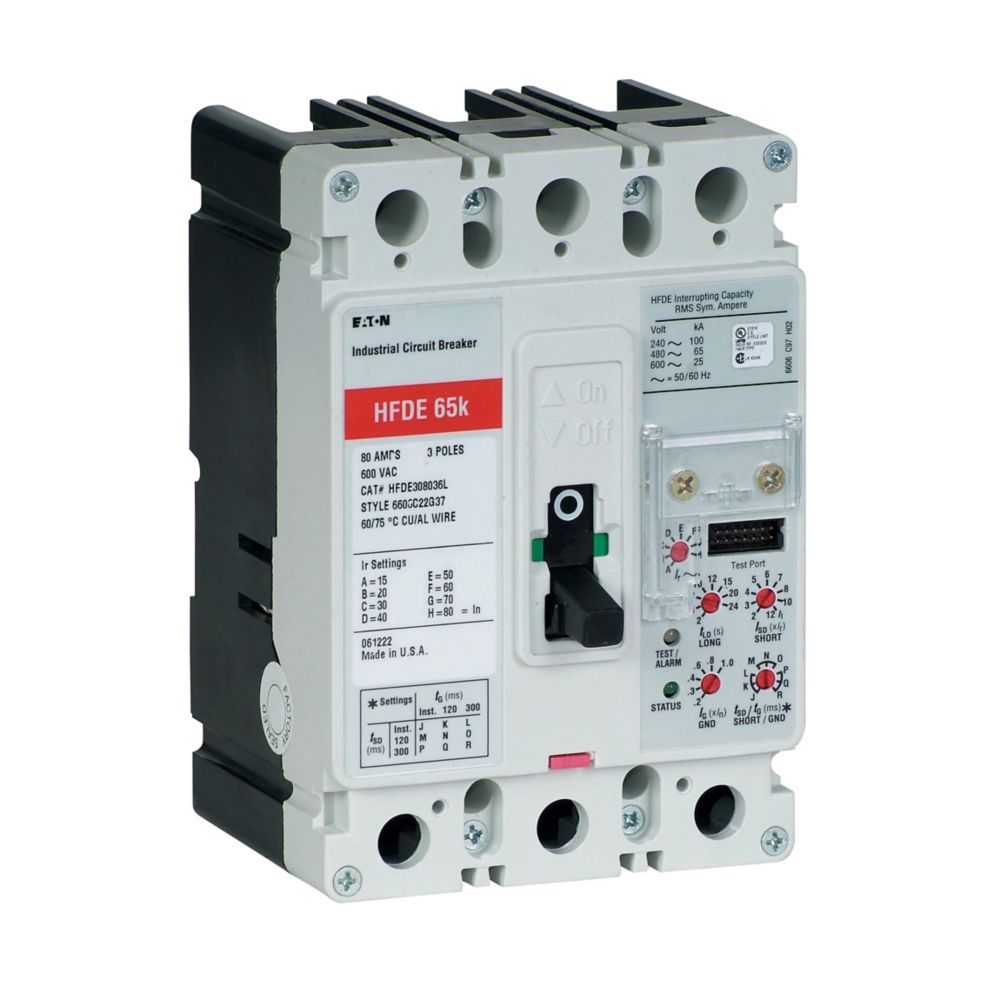

HFDE308033 - Eaton Series C F-frame electronic molded case circuit breaker with Digitrip RMS 310 LS trip, rated at 80A, three-pole, 600VAC.This F-frame breaker features electronic LS trip protection with adjustable settings, high-speed blow-open contact design, and ratings up to 100kAIC at 240V, 65kAIC at 480V. It supports panel or bolt-on mounting for 50/60 Hz systems and harsh environments.

• Amperage Rating: 80A
• Poles: 3
• Voltage Rating: 600VAC, 250VDC
• Frame: F-frame
• Trip Unit: Digitrip RMS 310 Electronic LS
• Interrupt Rating: 100kA @ 240VAC, 65kA @ 480VAC
• Mounting: Panel/Bolt-On
• Certifications: UL, CSA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HFDE308033
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HFDE
• Voltage : 480 AC
• Amperage : 80
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LS - Long-Time and Short-Time
• Frame Size : F Frame
• Protection : Solid State

Product Data

• UPC : 786685112428
• GTIN : 00786685112428
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 6 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 3.99
• Certification : UL Listed
