Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Eaton
- Brand
- Cutler Hammer
- Sub-Category
- Lug Terminal Kit
- Series
- Series C
- Frame
- C
- Rated current
- 100
- Voltage
- 600VAC
- Barrels
- 1
- Country of origin
- Dominican Republic
- MCM Size
- 106
- Metal Type
- Aluminum
- Compatible Frames
- F
- UPC
- 786679027011
- GTIN
- 00786679027011
Show all specifications (4 more)
- Dimensions
- 1.9 in x 0.6 in x 1.5 in (Length/Depth x Height x Width)
- Weight
- 0.2
- Certification
- UL
- Wire Size
- AWG 14 to AWG 1/0, Cu/Al
Product description & additional details
3T100FB

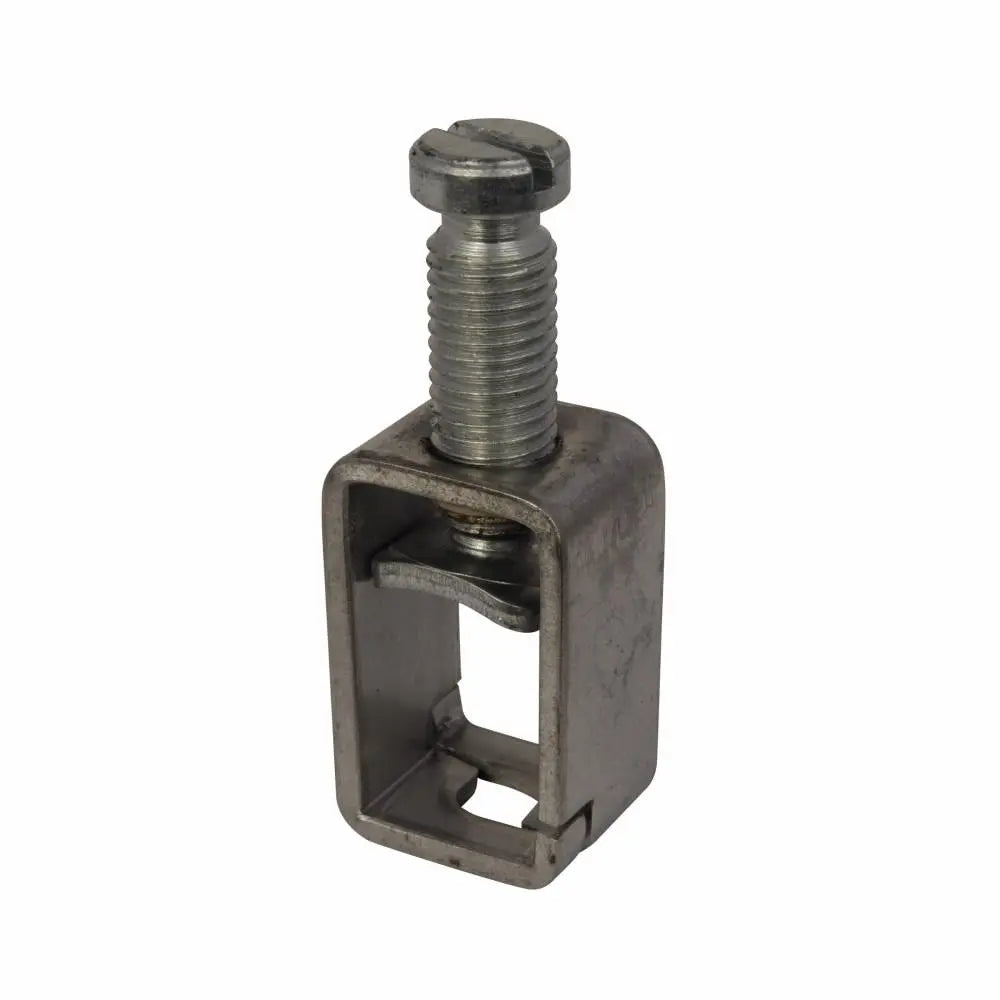

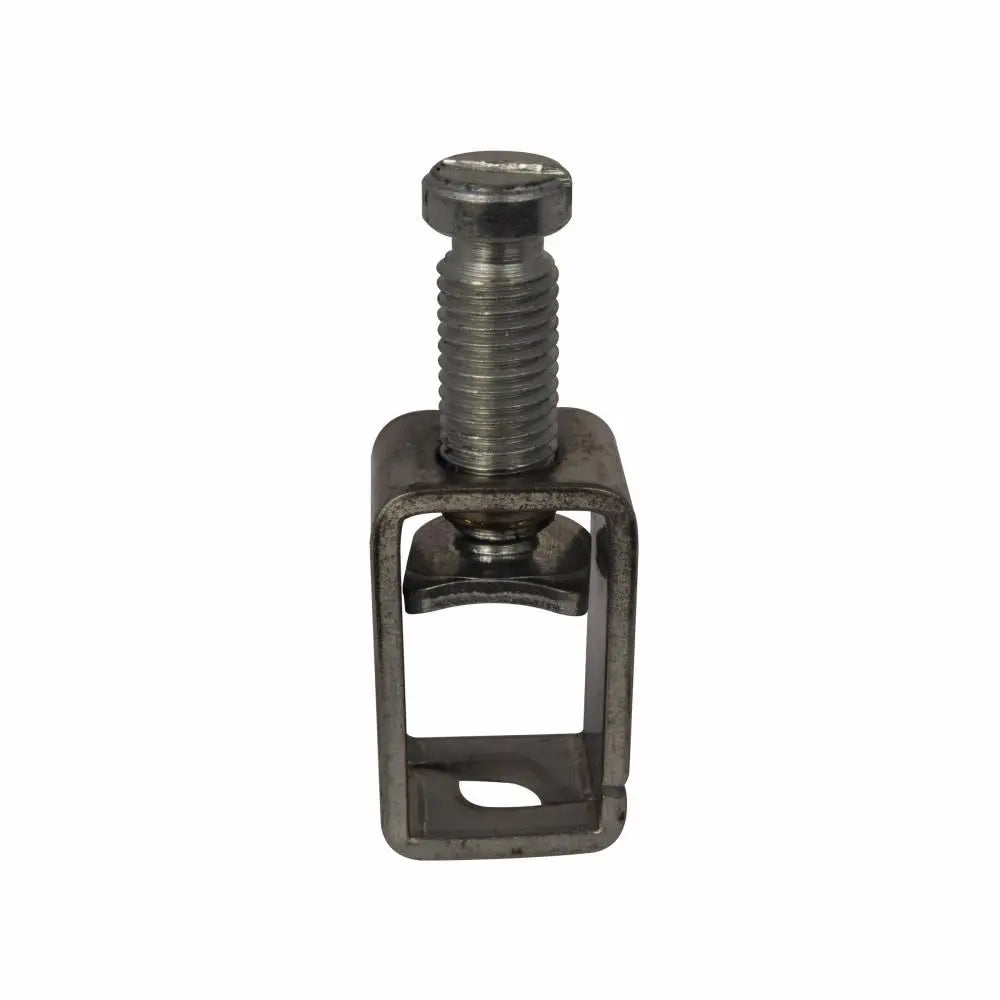

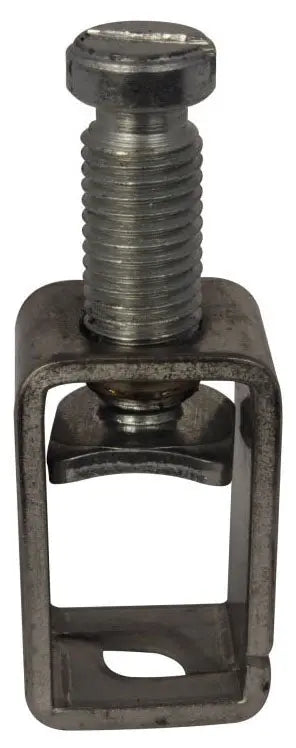

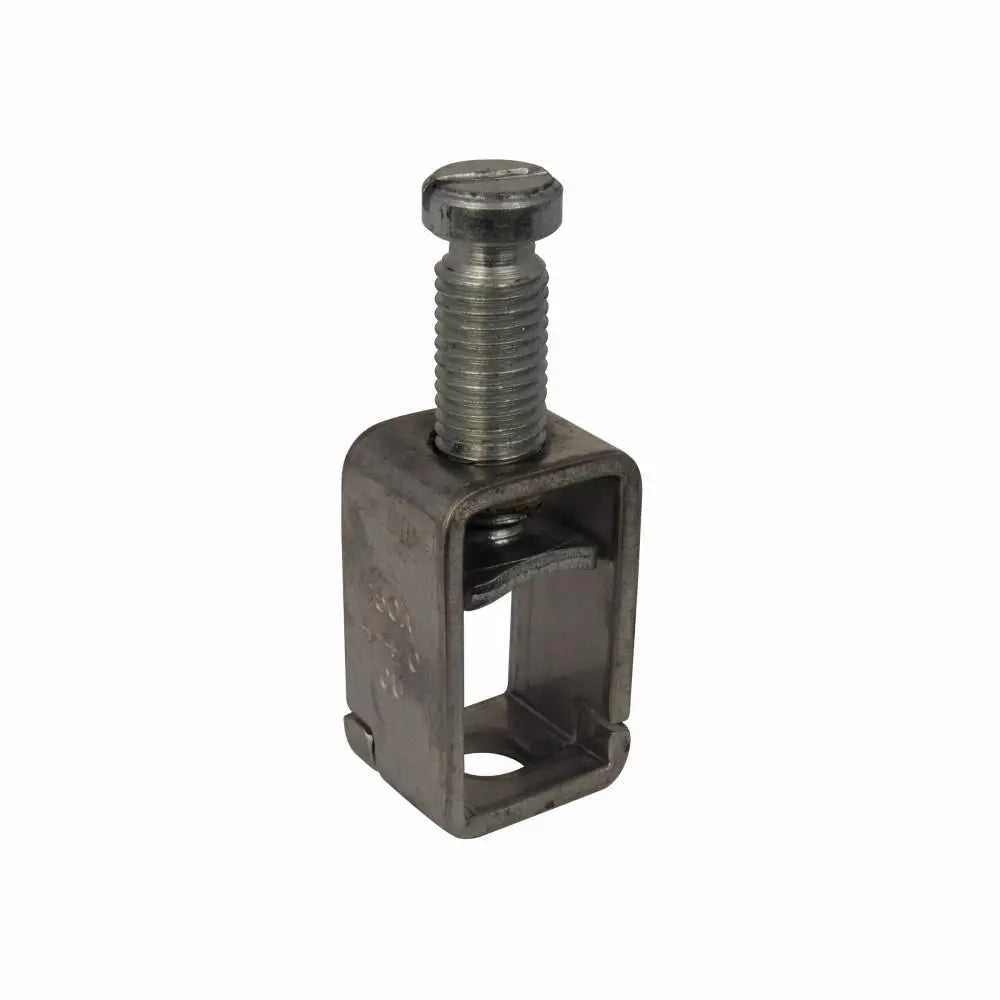

3T100FB is a Cutler Hammer molded case circuit breaker lug terminal kit designed for reliable electrical connections in industrial and commercial applications.
This terminal kit is compatible with Series C, F Frame molded case circuit breakers and is field installable. It supports a wide range of conductor sizes and is certified for use in demanding environments. The kit includes three terminals, each rated for 100A, making it ideal for three-phase systems.
-
Key Specifications
- Amperage: 100A
- Voltage: 600VAC
- Poles: 3 (kit includes three terminals)
- Mounting Type: Field installable lug terminal
- Interrupt Rating: Not specified in available data
- Series/Frame: Series C, F Frame (also listed as Frame J-K in some references)
- Trip Unit: Not applicable (lug terminal accessory)
- Certifications: CSA, E2186
- Conductor Size: #14–1/0 AWG
- Material: Suitable for copper or aluminum conductors
- Package: Three terminals per kit
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 3T100FB
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Lug Terminal Kit
- Family : Series C
- Type : C
- Voltage : 600VAC
- Amperage : 100
- MCM Size : 106
- Barrels : 1
- Metal Type : Aluminum
- Compatible Frames : F
Product Data
- UPC : 786679027011
- GTIN : 00786679027011
- Country of Origin : Dominican Republic
- Dimensions : 1.9 in x 0.6 in x 1.5 in (Length/Depth x Height x Width)
- Weight : 0.2
- Certification : UL
- Wire Size : AWG 14 to AWG 1/0, Cu/Al
