Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
HFDE308032

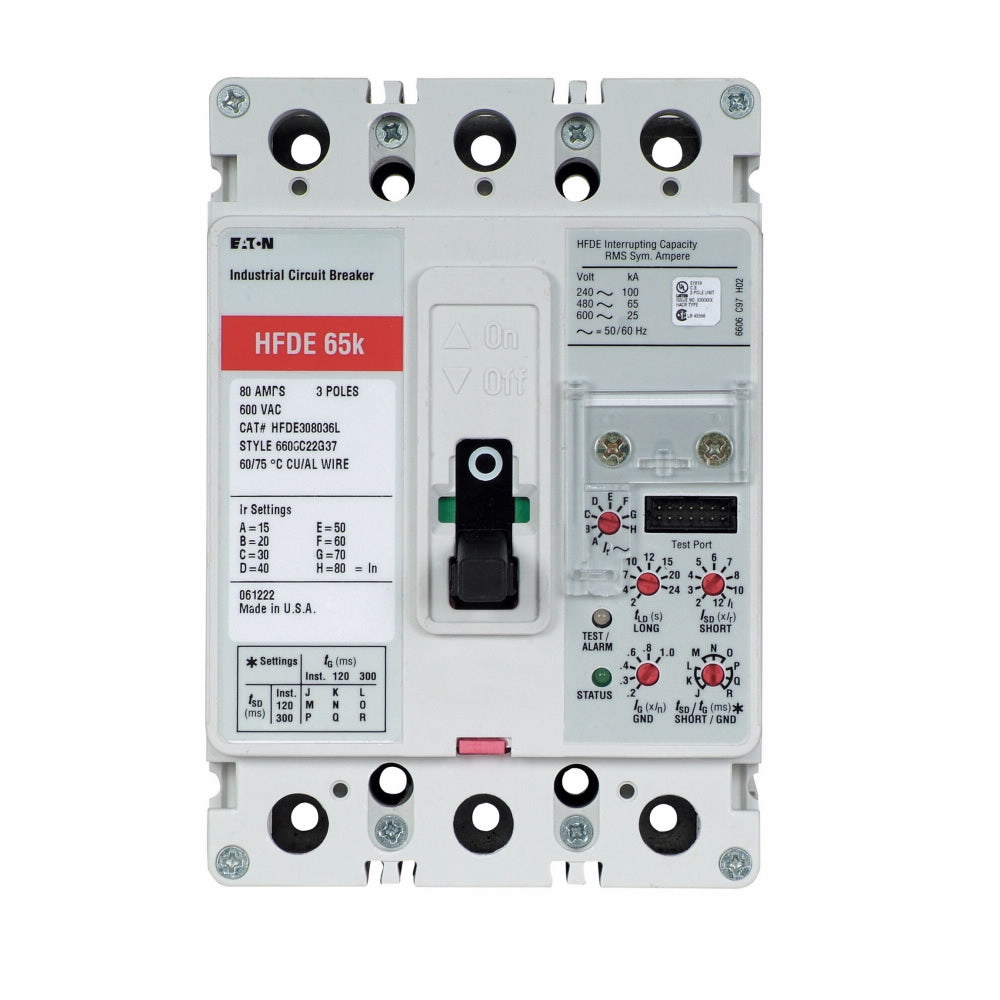

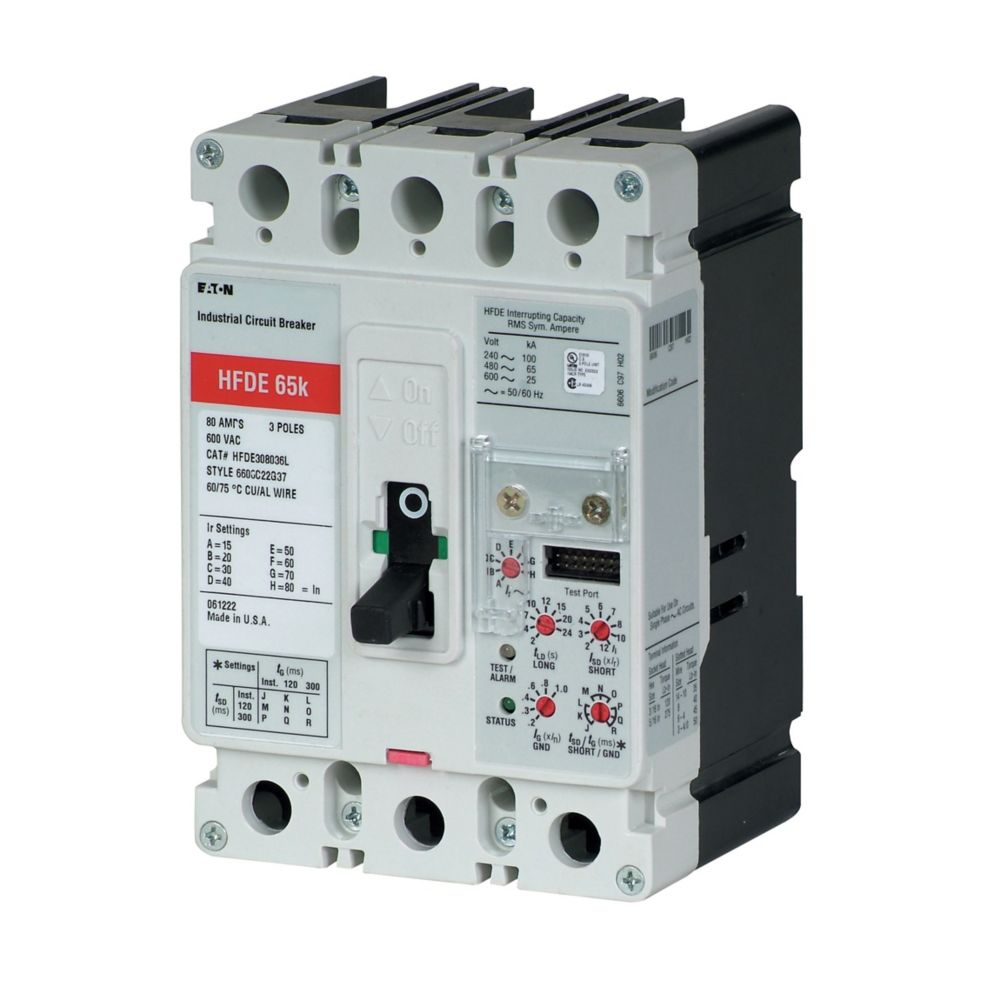

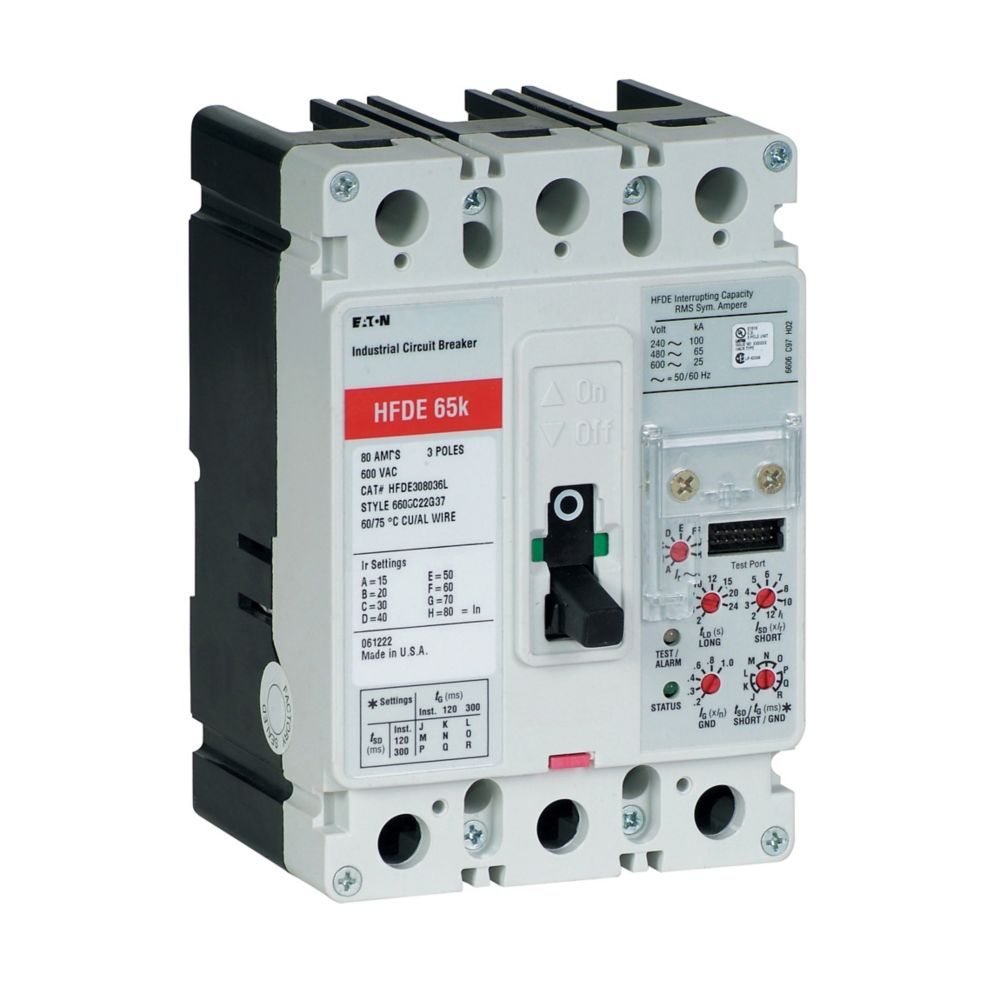

HFDE308032 - Eaton Series C F-frame electronic molded case circuit breaker with Digitrip 310 RMS LSI trip unit.This three-pole breaker features 80A rating, 600VAC/250VDC maximum voltage, panel mounting, and high interrupt ratings including 100kAIC at 240VAC and 65kAIC at 480VAC. It includes patented high-speed blow-open contact design for superior arc interruption performance in industrial applications.
- Part Number: HFDE308032
- Manufacturer: Eaton
- Type: Electronic Molded Case Circuit Breaker
- Frame: F-Frame, Series C
- Poles: 3
- Amperage: 80A
- Voltage Rating: 600VAC, 250VDC
- Trip Unit: Digitrip 310 RMS, Electronic LSI
- Mounting: Panel
- Interrupt Rating: 100kAIC @ 240VAC, 65kAIC @ 480VAC
- Frequency: 50/60 Hz
- Certifications: UL Listed
Specifications
- Part Number: HFDE308032
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : HFDE
- Voltage : 480 AC
- Amperage : 80
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LSI - Long-Time, Short-Time and Instantaneous Trip
- Frame Size : F Frame
- Protection : Solid State
Product Data
- UPC : 786685112510
- GTIN : 00786685112510
- Country of Origin : Dominican Republic
- Dimensions : 3.38 in x 6 in x 4.13 in (Length/Depth x Height x Width)
- Weight : 4.1
- Certification : UL Listed
