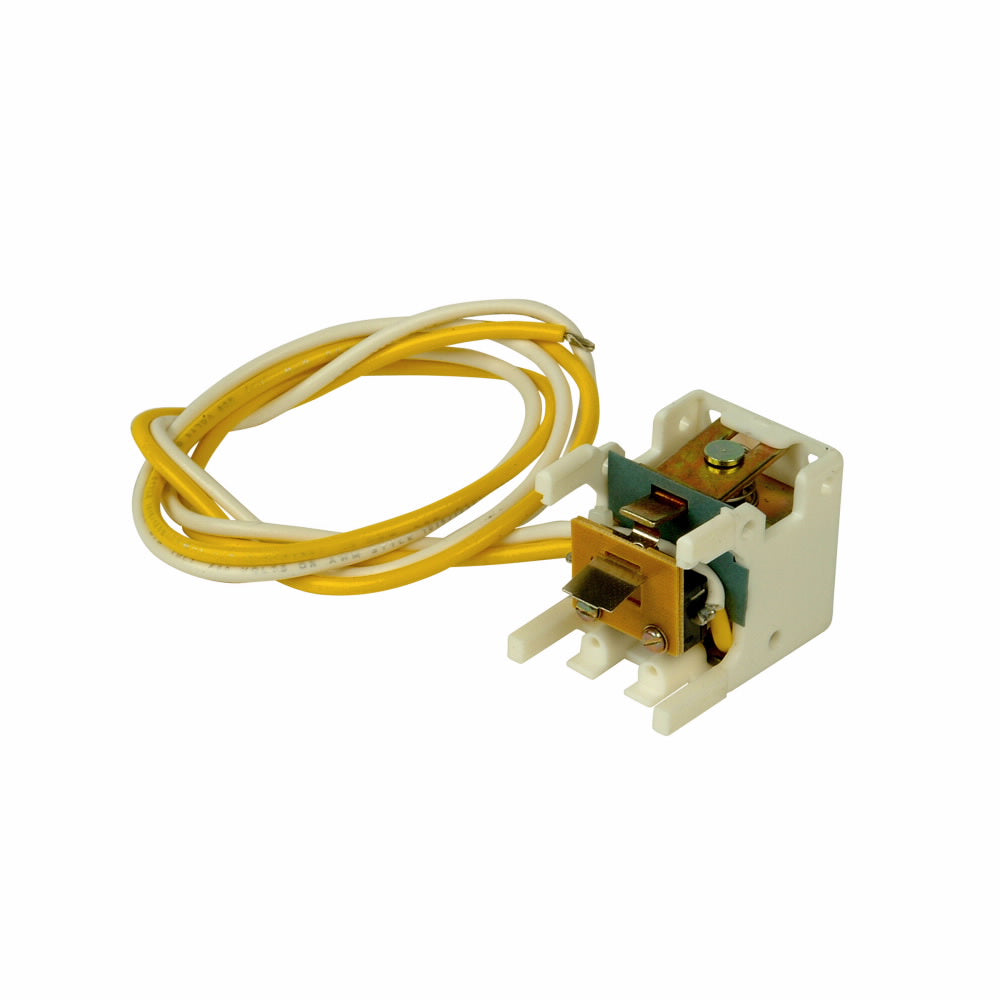

SNT1LP18K - Cutler Hammer Shunt Trip Accessory 415-600VAC Dual Voltage, F-Frame, Left Pole Mount

SNT1LP18K

SNT1LP18K is a Cutler Hammer shunt trip accessory designed for F-frame molded case circuit breakers, providing remote trip capability with dual voltage ratings from 415 to 600 VAC.

This shunt trip features a left pole mounting style and a pigtail lead connection for easy field installation. It supports control voltages of 415-600 VAC at 50/60 Hz and 220-250 VDC, making it compatible with various FDB, FD, HFD, HFDDC, FDC, FG, E2F, and E2FM frame breakers. The device is rated for industrial applications requiring reliable remote tripping functionality and meets applicable UL and ANSI standards.

Key Specifications
• Manufacturer: Cutler Hammer (Eaton Division)
• Type: Shunt Trip Accessory
• Voltage Rating: 415-600 VAC, 220-250 VDC
• Frequency: 50/60 Hz
• Mounting: Left Pole Mount
• Connection: Pigtail Lead
• Frame Compatibility: F-Frame Breakers (FDB, FD, HFD, HFDDC, FDC, FG, E2F, E2FM)
• Power Rating: Up to 590 VA at 600 VAC
• Certifications: UL 1066, UL 489, ANSI C37 compliant (per reconditioned product standards)
• Dimensions: Approx. 2.5 x 2.9 x 6.7 inches
• Weight: Approx. 0.35 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: SNT1LP18K
• Manufacturer : Cutler Hammer
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Shunt Trip
• Family : Series C
• Type : C
• Voltage : 415/600VAC, 220/250VDC
• Amperage : 225
• Poles : 3
• Connection : Pigtail Leads
• Control Voltage Minimum : 415
• Compatible Frames : FD
• Control Voltate Maximum : 600

Product Data

• UPC : 786679553183
• GTIN : 00786679553183
• Country of Origin : Dominican Republic
• Dimensions : 6.7 in x 2.5 in x 2.9 in (Length/Depth x Height x Width)
• Weight : 0.35
