HFD3090L - Cutler Hammer 90A 600V 3 Pole Series C Molded Case Circuit Breaker Thermal Magnetic

HFD3090L

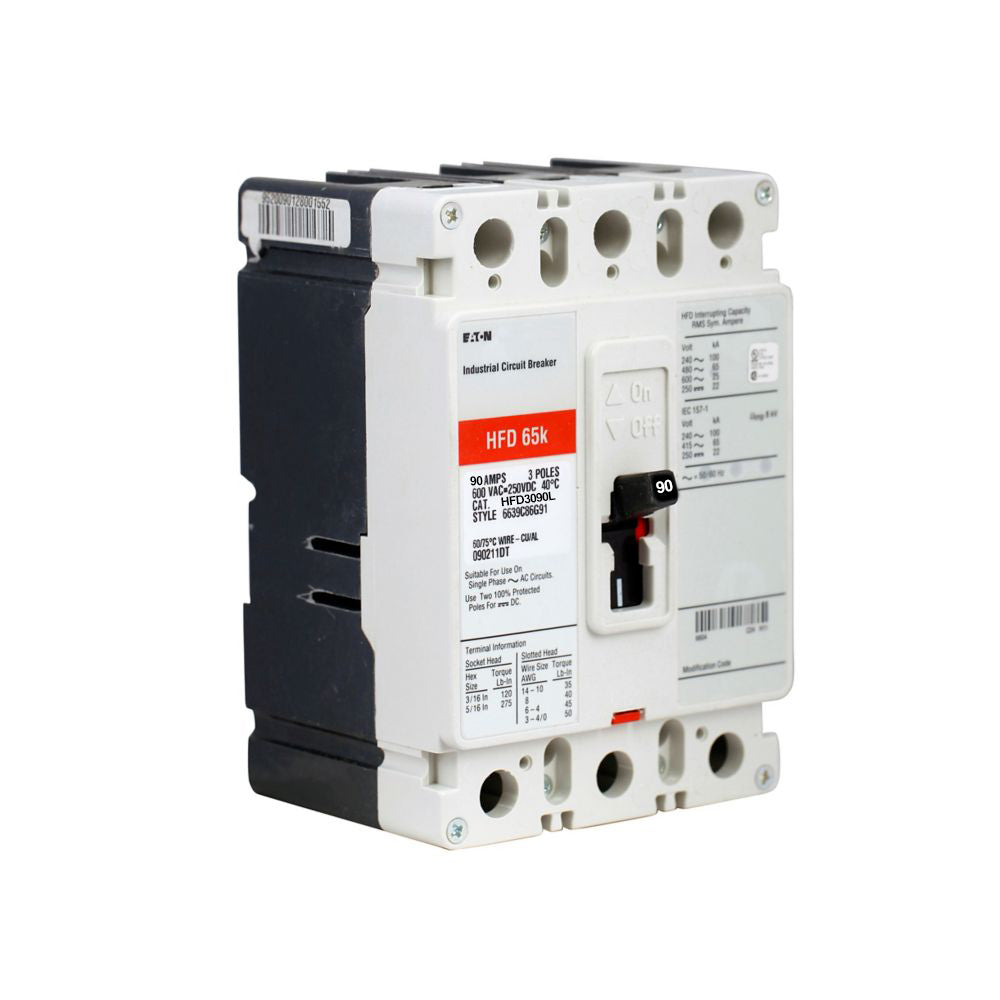

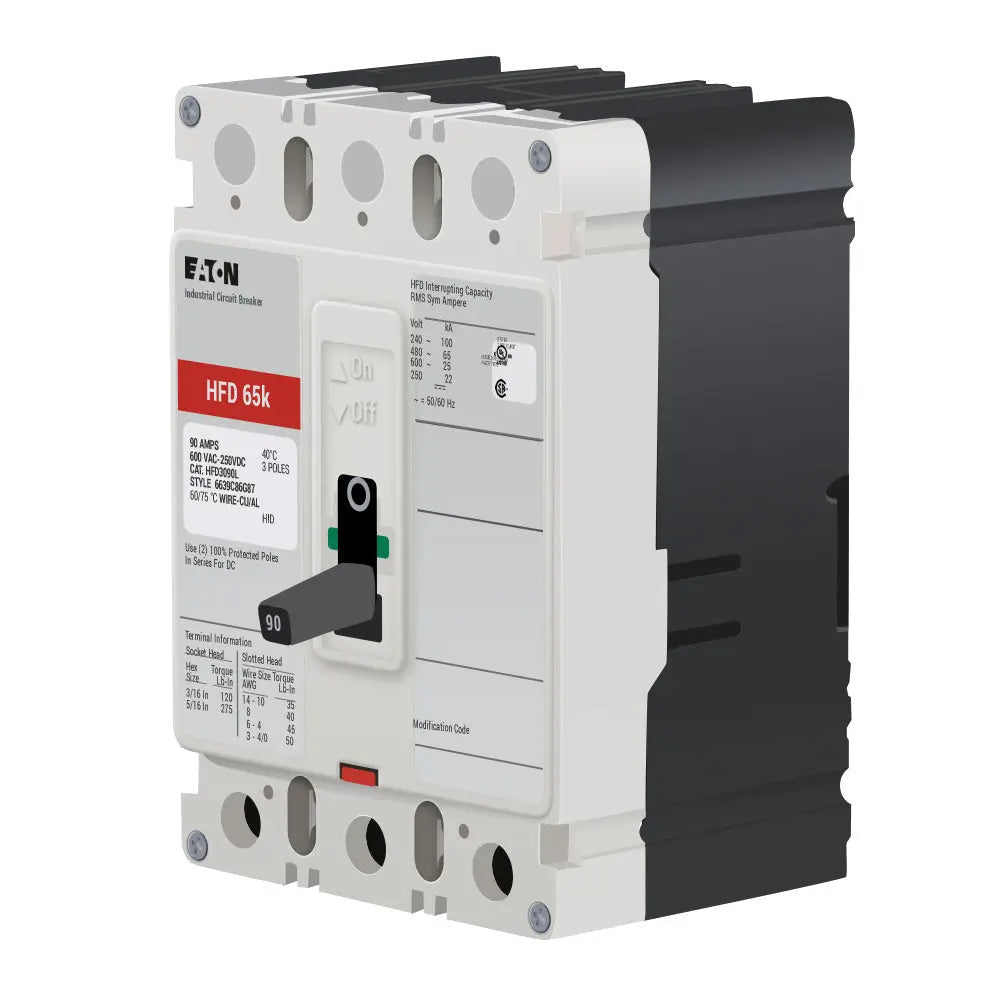

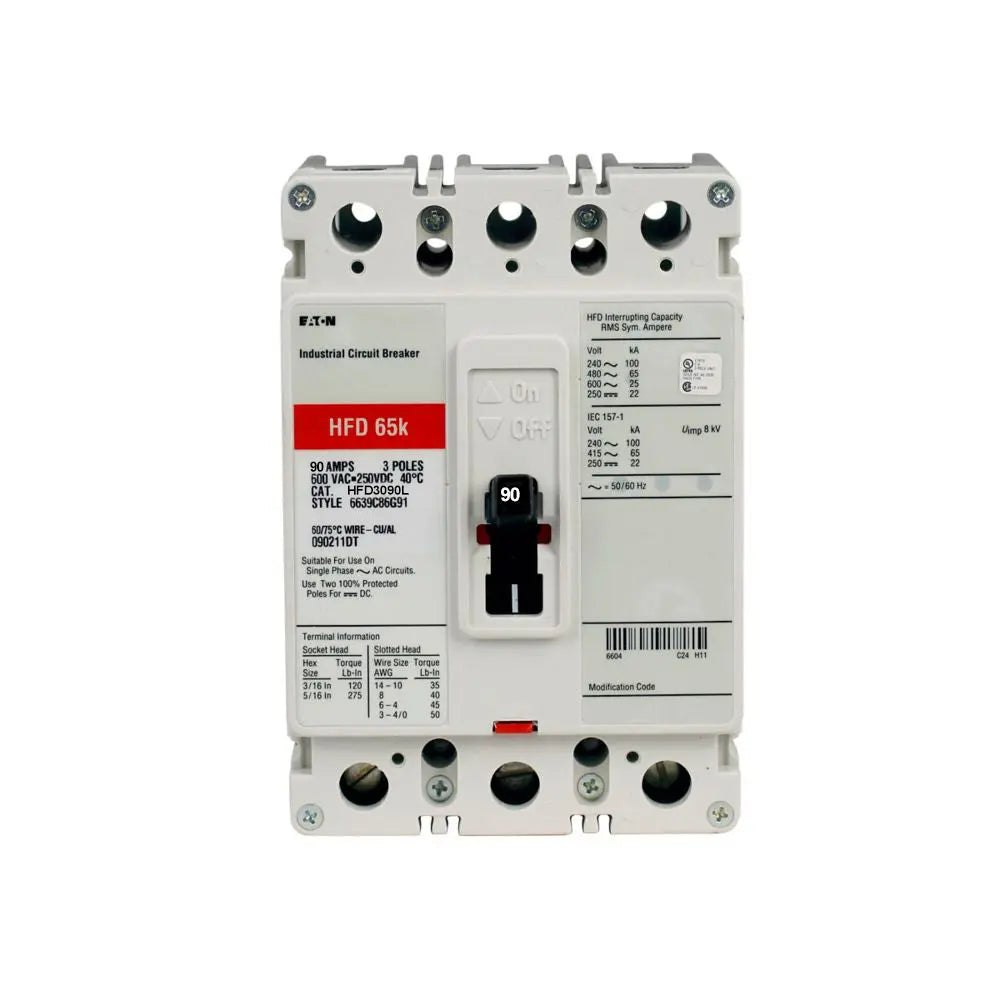

HFD3090L is a 90 Amp, 3 Pole, Series C molded case circuit breaker from Cutler Hammer designed for panel mount applications with thermal magnetic trip.This breaker features a 600 VAC voltage rating, 65kA interrupting capacity at 480 VAC, and 100kA interrupting rating at 240 VAC. It has a fixed thermal magnetic trip unit, F frame size, and is UL and CSA certified for industrial use.

• Amperage: 90 Amps
• Voltage Rating: 600 VAC, 250 VDC
• Poles: 3
• Interrupting Rating: 65kA @ 480 VAC, 100kA @ 240 VAC
• Series/Frame: Series C, F Frame
• Trip Unit: Thermal Magnetic, Fixed Trip
• Mounting Type: Panel Mount (Bolt-On)
• Certifications: UL, CSA, CE
• Frequency: 50/60 Hz
• Dimensions: Approx. 4.125" W x 3.375" D x 6" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HFD3090L
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HFD
• Voltage : 600 AC
• Amperage : 90
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Frame Size : F Frame
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679175170
• GTIN : 00786679175170
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 6 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 4.55
• Certification : UL Listed
