Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
HFD3015L

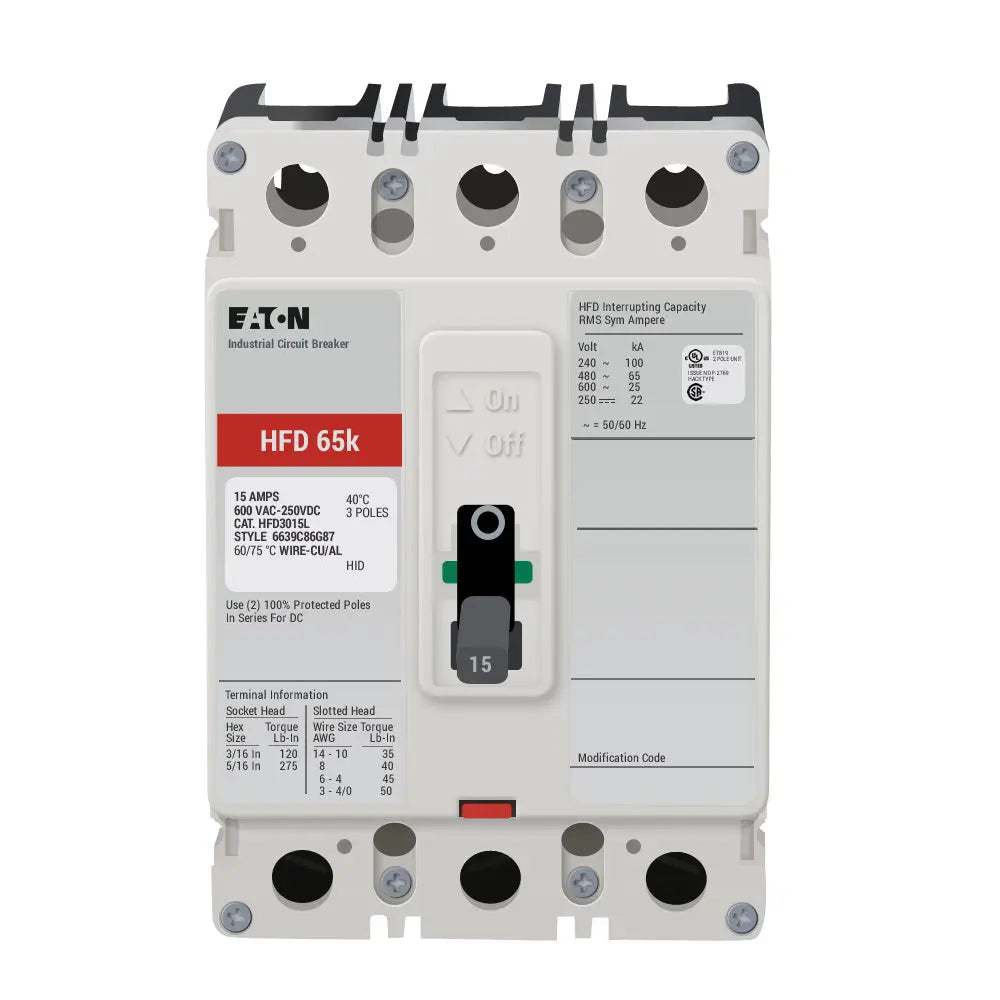

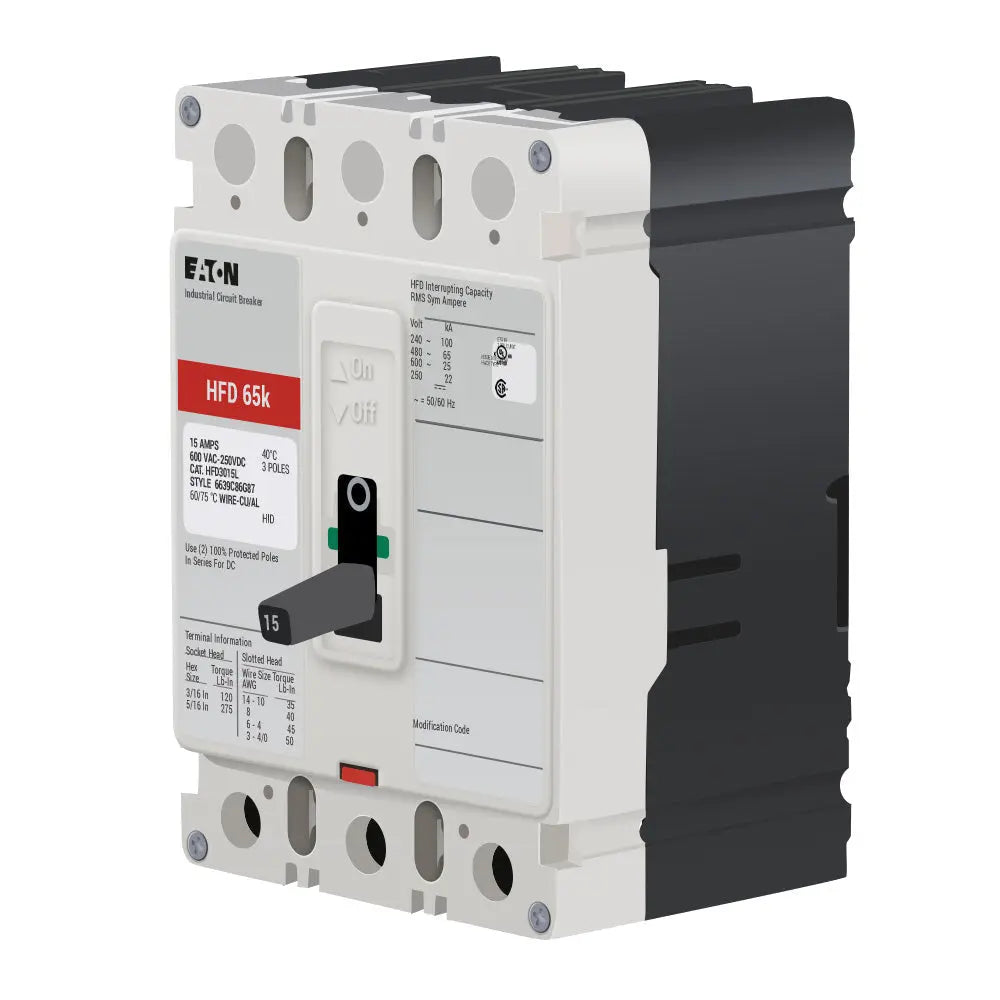

HFD3015L is a Cutler Hammer Series C molded case circuit breaker designed for reliable protection in electrical systems.This 3-pole breaker features a 15 ampere rating and supports voltages up to 600 VAC and 250 VDC. It includes a T186 trip unit and is part of the F-frame Series C line, offering a high interrupting capacity of 65kA at 480V. The breaker is suitable for feed-thru connection and rated for operation at 40 degrees Celsius.
- Key Specifications
- Manufacturer: Cutler Hammer
- Part Number: HFD3015L
- Amperage: 15 A
- Voltage Rating: 600 VAC / 250 VDC
- Poles: 3
- Series/Frame: Series C, F-frame
- Trip Unit: T186
- Interrupt Rating: 65kA @ 480V
- Mounting Type: Feed-Thru
- Operating Temperature: 40¡C
- Part Number: HFD3015L
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : HFD
- Voltage : 600 AC
- Amperage : 15
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : F Frame
- Protection : Thermal Magnetic
- UPC : 786679175064
- GTIN : 00786679175064
- Country of Origin : Dominican Republic
- Dimensions : 3.38 in x 6 in x 4.13 in (Length/Depth x Height x Width)
- Weight : 4.5
- Certification : UL Listed
