Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
HFD3045

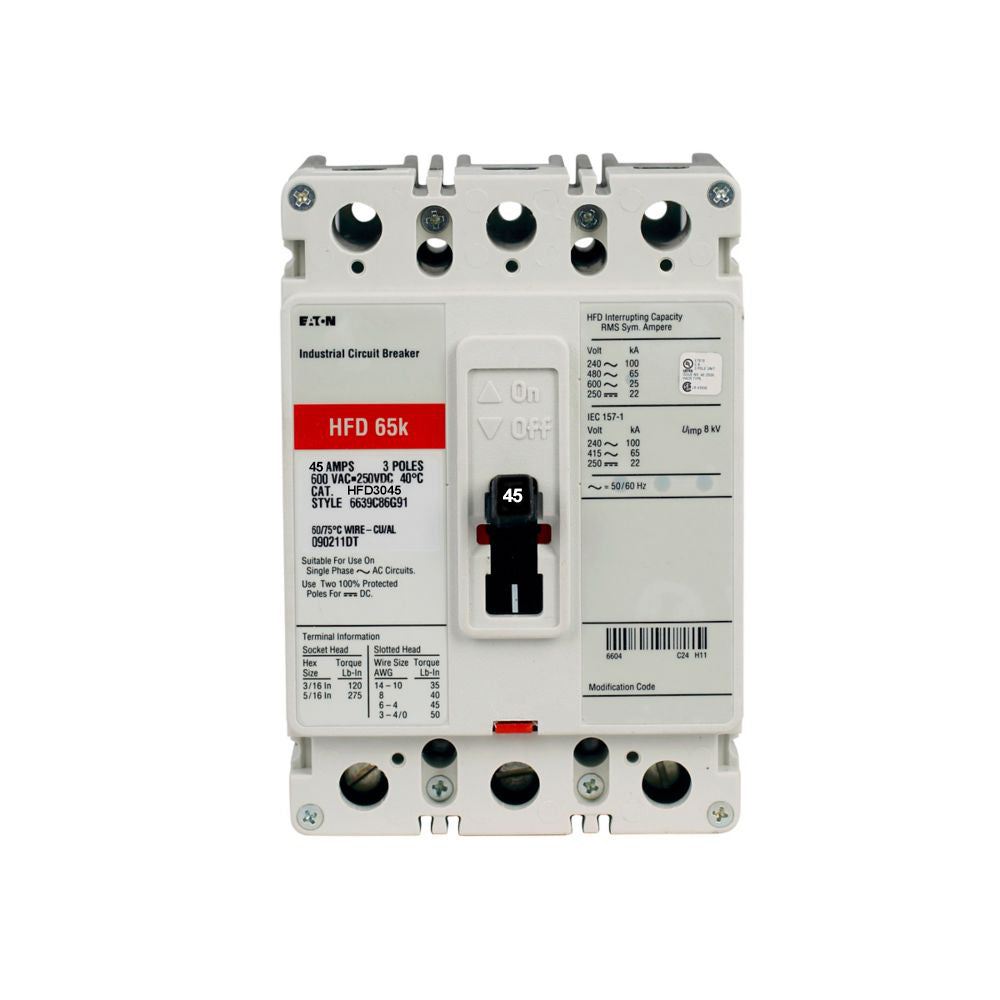

HFD3045 - Eaton Series C F-frame molded case circuit breaker with fixed thermal-magnetic trip, rated at 45A, three-pole, 600VAC.This complete HFD breaker features fixed thermal and fixed magnetic trip functions, load side terminals, and high interrupting capacity including 65kAIC at 480VAC and 100kAIC at 240VAC. It operates at 50/60Hz with a maximum voltage of 600VAC/250VDC, designed for reliable overcurrent protection in industrial applications.
- Part Number: HFD3045
- Manufacturer: Eaton
- Amperage Rating: 45A
- Voltage Rating: 600VAC, 250VDC
- Poles: Three-pole
- Frame: F-frame
- Series: Series C
- Trip Type: Fixed thermal, fixed magnetic
- Interrupt Rating: 65kAIC @ 480VAC, 100kAIC @ 240VAC
- Terminals: Load side
- Frequency: 50/60Hz
Specifications
- Part Number: HFD3045
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : HFD
- Voltage : 600 AC
- Amperage : 45
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : F Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 786679175934
- GTIN : 00786679175934
- Country of Origin : Dominican Republic
- Dimensions : 3.38 in x 6 in x 4.13 in (Length/Depth x Height x Width)
- Weight : 4.3
- Certification : UL Listed
