Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Eaton
- Brand
- Cutler Hammer
- Sub-Category
- Shunt Trip
- Series
- Series C
- Frame
- C
- Rated current
- 225
- Voltage
- 12/24VDC
- Poles
- 3
- Connection
- Pigtail Leads
- Country of origin
- Dominican Republic
- Control Voltage Minimum
- 12
- Compatible Frames
- FD
- Control Voltate Maximum
- 24
- UPC
- 786679553145
Show all specifications (3 more)
- GTIN
- 00786679553145
- Dimensions
- 5.5 in x 3 in x 3.1 in (Length/Depth x Height x Width)
- Weight
- 0.35
Product description & additional details
SNT1LP03K

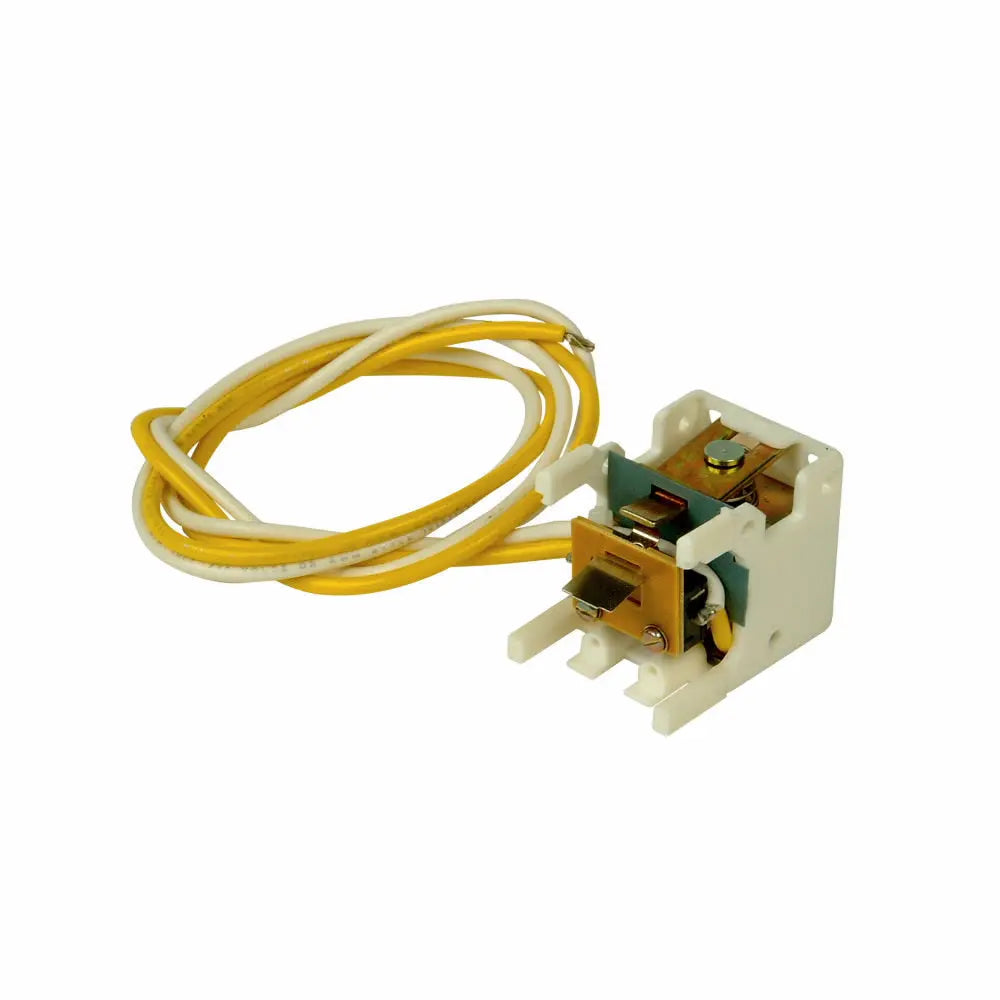

SNT1LP03K is a Cutler Hammer shunt trip accessory designed for Series C circuit breakers, providing remote tripping capability with 12-24V AC/DC operation.This shunt trip features pigtail leads for easy installation on the left side of the breaker, compatible with Type F frame breakers. It operates at 12-24 volts AC or DC and is factory-installed or field-installed to enhance circuit breaker functionality.
- Manufacturer: Cutler Hammer (Eaton)
- Part Number: SNT1LP03K
- Type: Shunt Trip Accessory
- Voltage: 12-24V AC/DC
- Mounting: Left side mounted
- Connection: Pigtail leads
- Compatible Frame: Series C, Type F
- Application: Remote trip for molded case circuit breakers
- Installation: Factory or field installable
- Certifications: Eaton standard compliance
Specifications
- Part Number: SNT1LP03K
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Shunt Trip
- Family : Series C
- Type : C
- Voltage : 12/24VDC
- Amperage : 225
- Poles : 3
- Connection : Pigtail Leads
- Control Voltage Minimum : 12
- Compatible Frames : FD
- Control Voltate Maximum : 24
Product Data
- UPC : 786679553145
- GTIN : 00786679553145
- Country of Origin : Dominican Republic
- Dimensions : 5.5 in x 3 in x 3.1 in (Length/Depth x Height x Width)
- Weight : 0.35
