Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
HDP36110

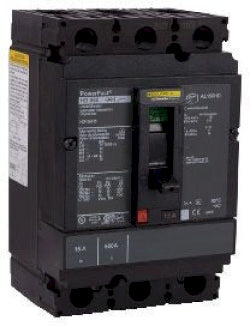

HDP36110 is a Square D 3 pole, 110 amp, 600 Volt molded case circuit breaker with a bolt-on mounting type and an 18kA interrupting rating at 480V.This HDP36110 breaker provides reliable thermal magnetic protection and is designed for use in industrial and commercial power distribution systems. It features a bolt-on connection, 3 poles, and is rated for 600VAC operation with an interrupting capacity of 18,000 amps at 480 volts. The breaker meets UL 489 standards and is suitable for various applications requiring robust circuit protection.
- Key Specifications
- Amperage: 110A
- Voltage: 600V AC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 18kA at 480V
- Frame/Series: HDP
- Trip Unit: Thermal Magnetic
- Certifications: UL 489 Listed
Specifications
- Part Number: HDP36110
- Manufacturer : Square D
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : HDP
- Voltage : 600
- Amperage : 110
- Phase : 3
- Poles : 3
- AIC rating : 18kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Frame Size : H Frame
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 606487054880
- GTIN : 03606490000000
- Dimensions : Height 6.42 in (163 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight : 5
- Wire Size : AWG 14 to AWG 3/0, Aluminum/Copper
