Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
HDM36030

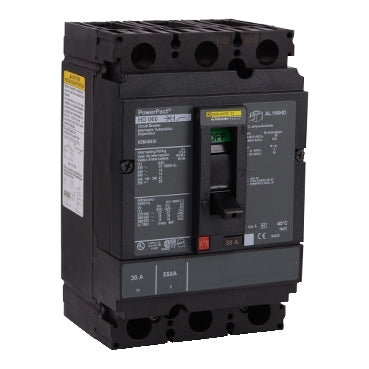

HDM36030 is a Square D 3 pole, 30 amp, 600 Volt bolt-on circuit breaker designed for reliable circuit protection.HDM36030 features a thermal-magnetic trip unit and a 14kA interrupt rating at 600VAC, suitable for panel mounting with lug terminal connections. It belongs to the PowerPact H series and provides robust performance in industrial and commercial electrical applications.
- Amperage: 30 Amp
- Voltage Rating: 600 Volt AC
- Number of Poles: 3
- Mounting Type: Bolt-On Panel Mount
- Interrupt Rating: 14kA at 600VAC
- Trip Unit: Thermal-Magnetic
- Terminal Connection: Lug
- Series/Frame: PowerPact H
Specifications
- Part Number: HDM36030
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : HDM
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 18kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : H Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 796474956058
- Country of Origin : Mexico
- Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
- Weight : 4.9
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- Certification : UL, CSA, NOM
- Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
