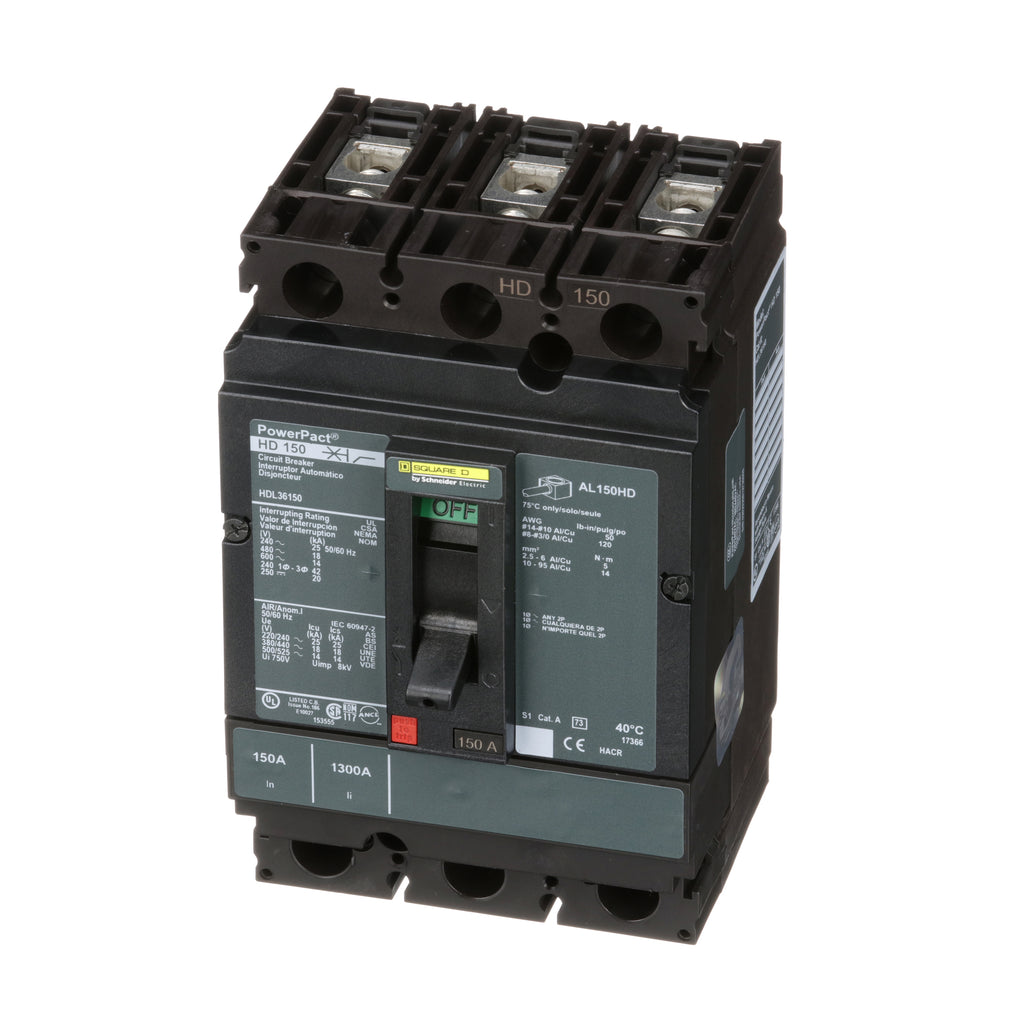

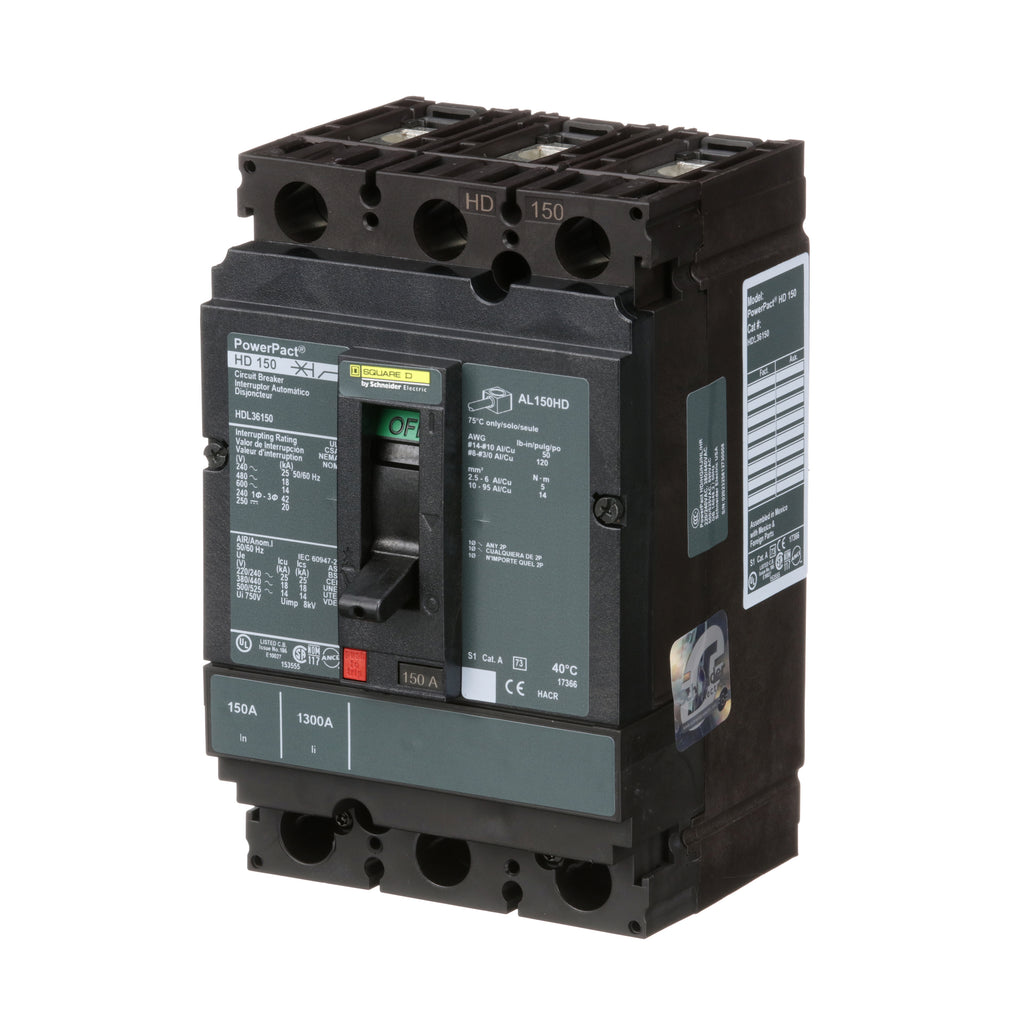

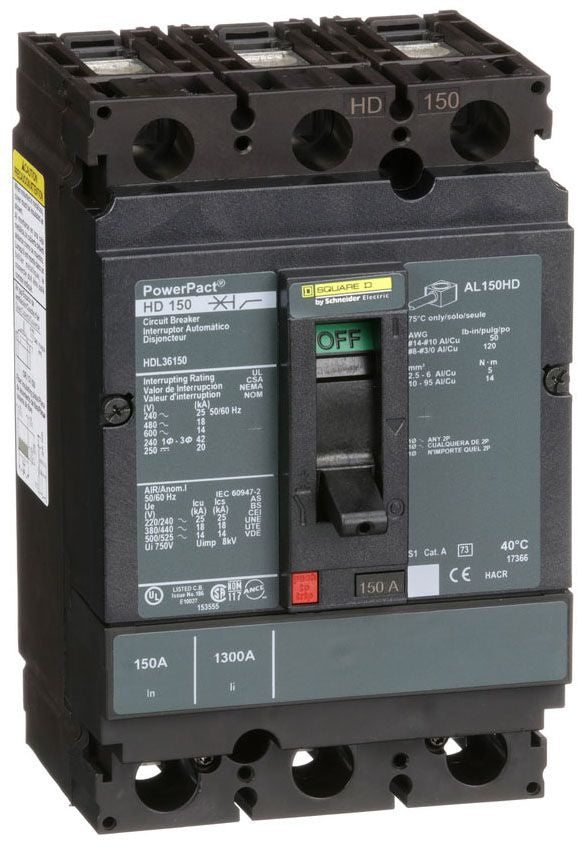

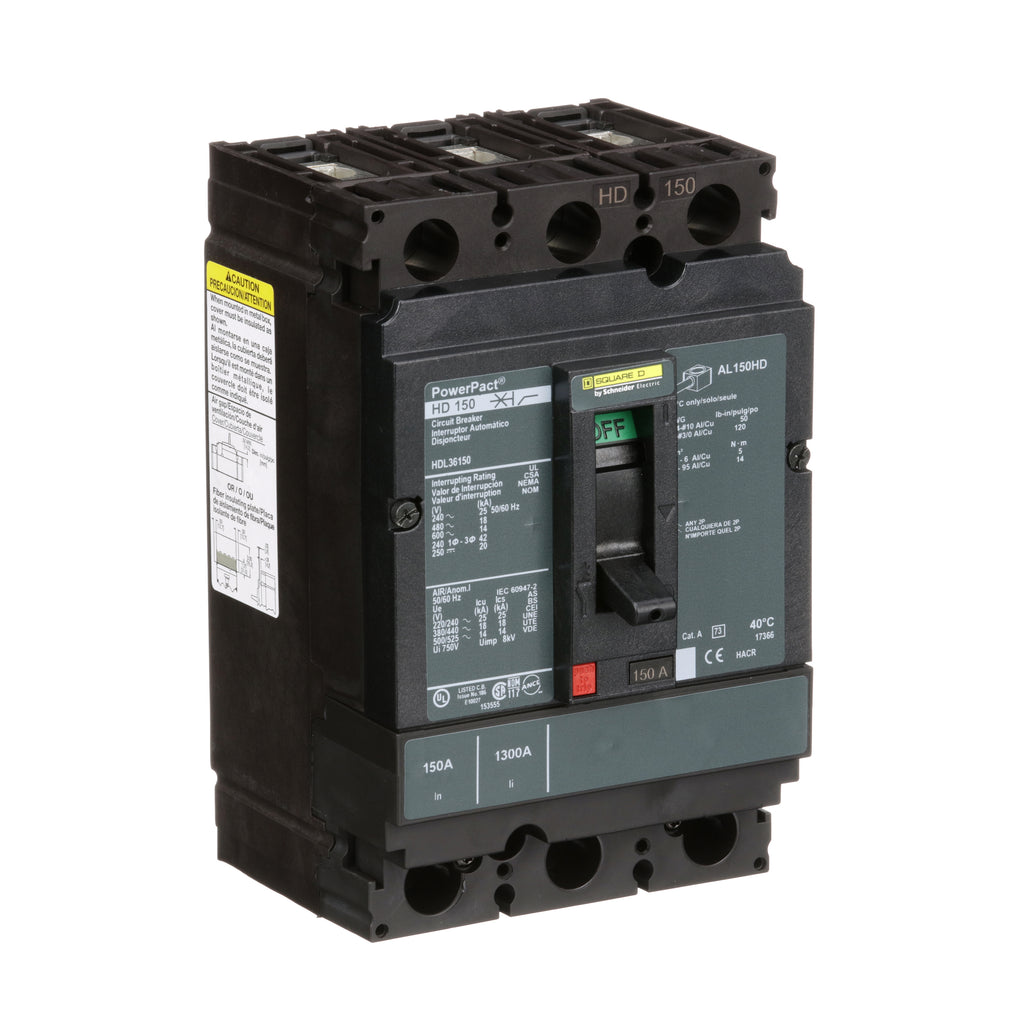

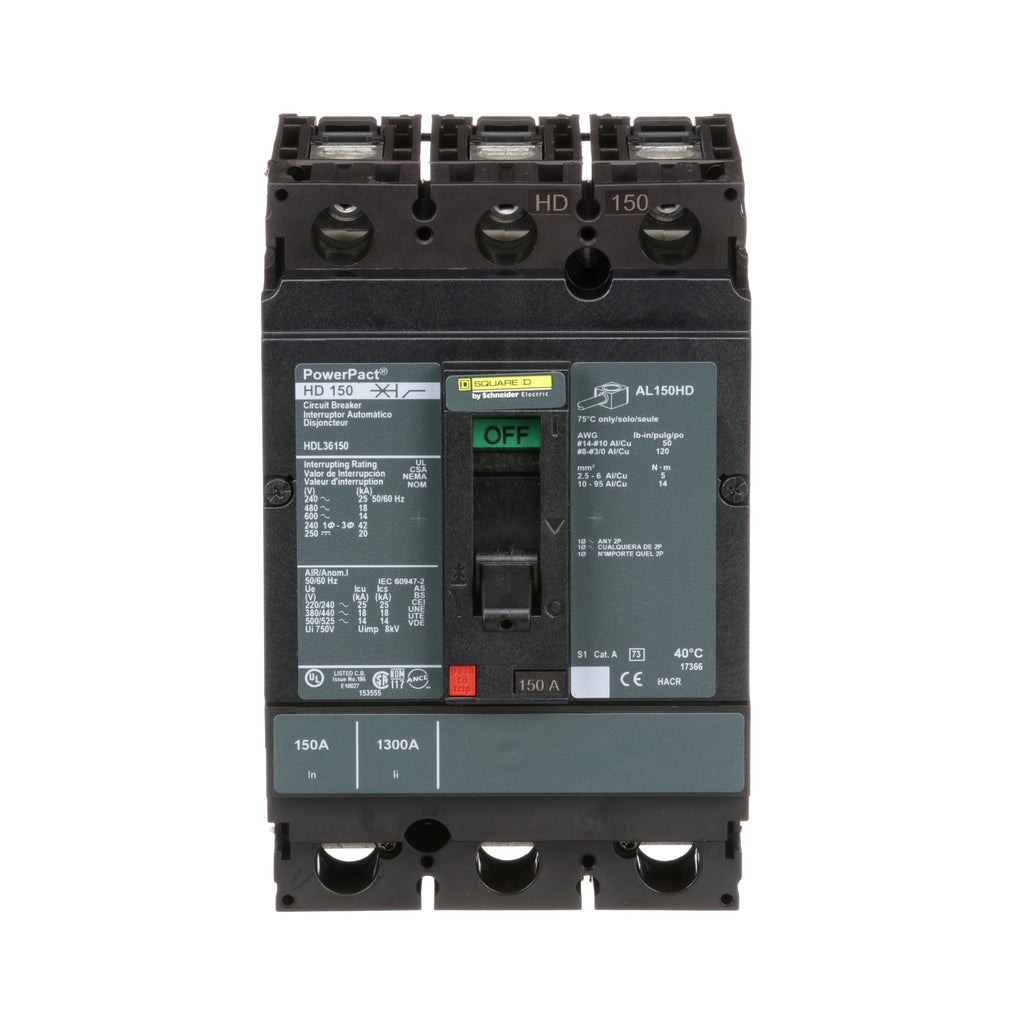

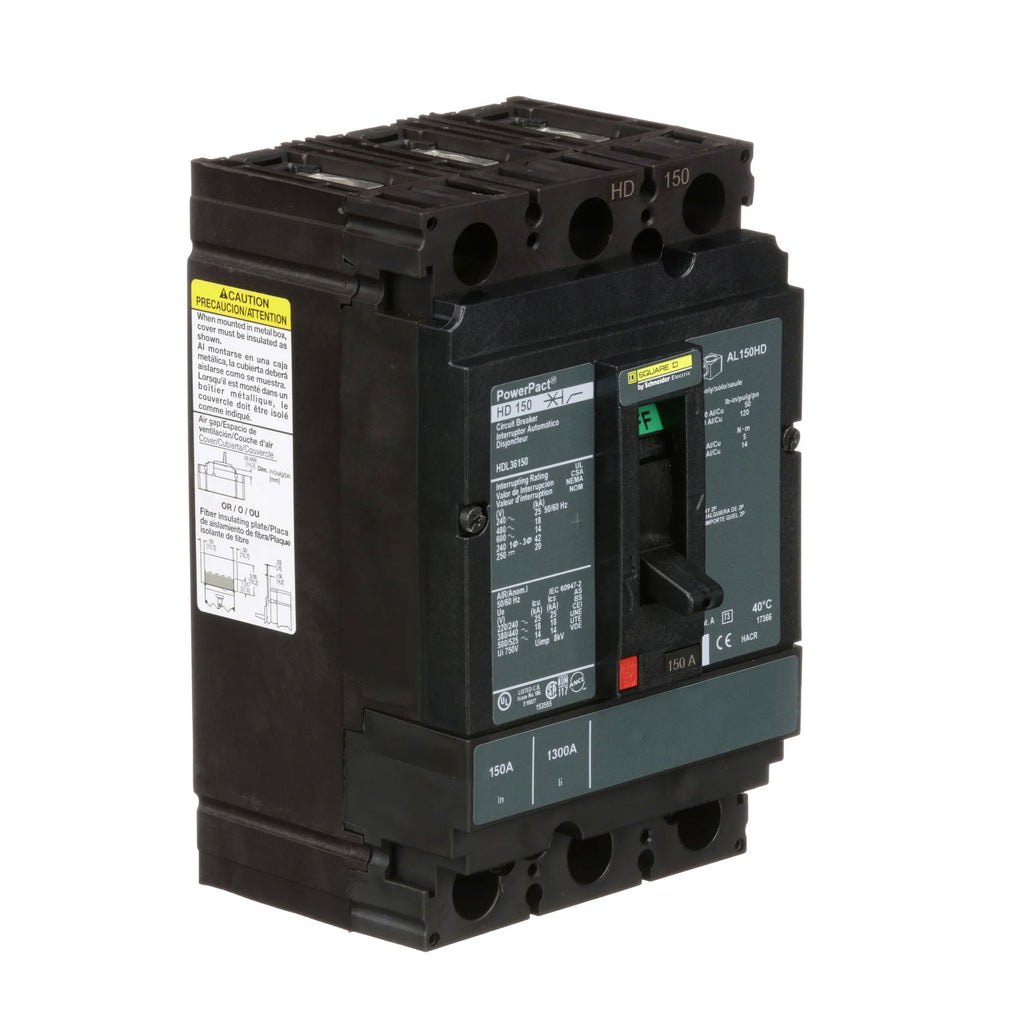

HDL36150 - Square D PowerPact H 150A 3 Pole 600VAC Molded Case Circuit Breaker

HDL36150

HDL36150 is a 150A, 3-pole, 600VAC molded case circuit breaker from the Square D PowerPact H series, designed for reliable overload and short-circuit protection in commercial and industrial applications. This thermal magnetic circuit breaker features a unit mount design, feed-thru connection type, and includes long-time and instantaneous trip functions. It is rated for 18kAIC at 480VAC and 14kA at 600VAC, with lugs for both line and load side connections. The HDL36150 is UL 489 listed and meets CSA, NEMA, IEC, and CE standards for safety and performance.

• Part Number: HDL36150
• Manufacturer: Square D
• Series/Frame: PowerPact H
• Amperage: 150A
• Voltage: 600VAC
• Poles: 3
• Mounting Type: Unit Mount
• Interrupt Rating: 18kAIC at 480VAC, 14kA at 600VAC
• Connection Type: Feed-Thru, Lugs
• Trip Unit: Thermal Magnetic
• Standards: UL 489, CSA, NEMA, IEC, CE
• Wire Gauge: AWG 14 to AWG 3/0 (Aluminum/Copper)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HDL36150
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDL
• Voltage : 600
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Line/Load Lug
• Frame Size : 150A/HD
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901623212
• GTIN : 00785901623212
• Country of Origin : Mexico

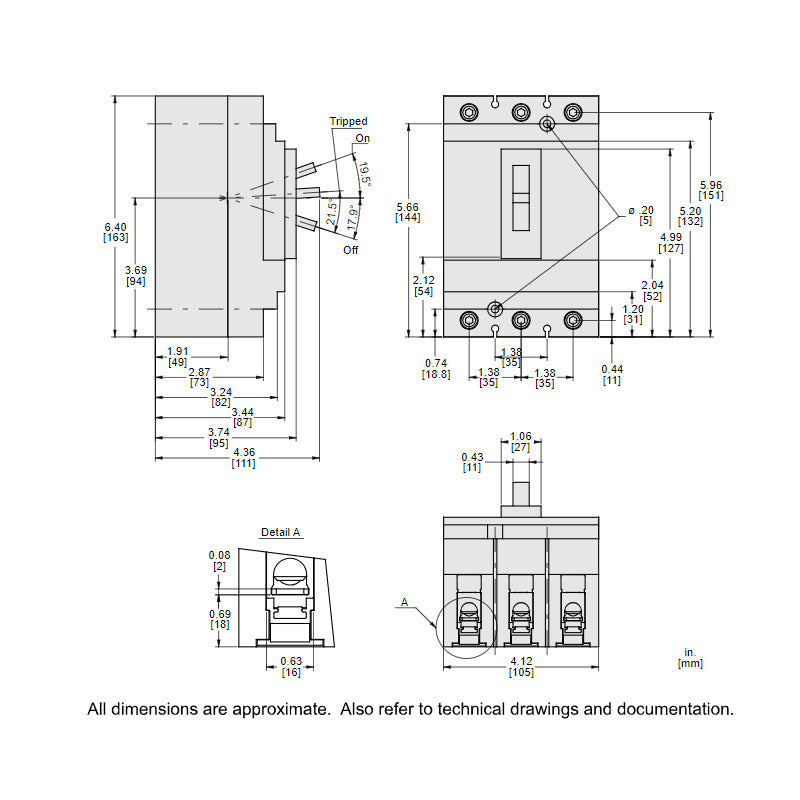

• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.149
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
