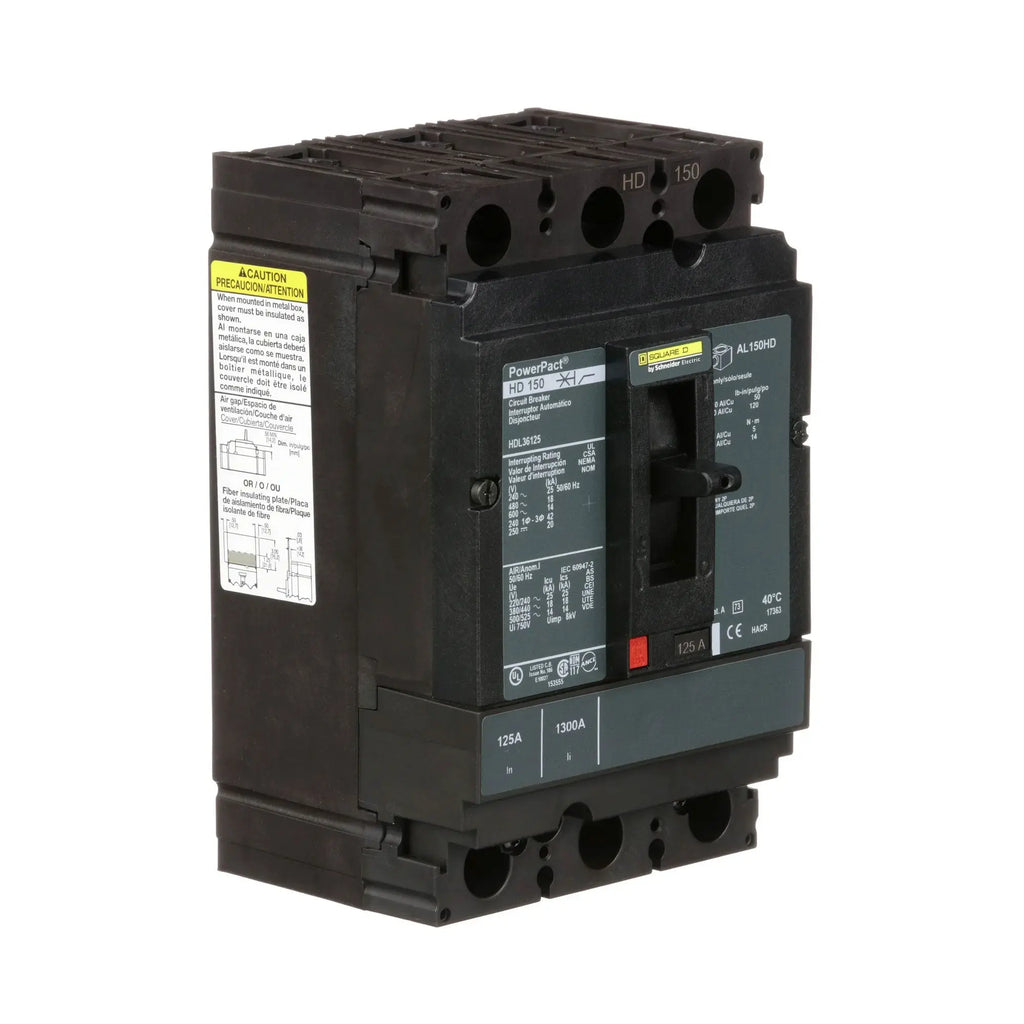

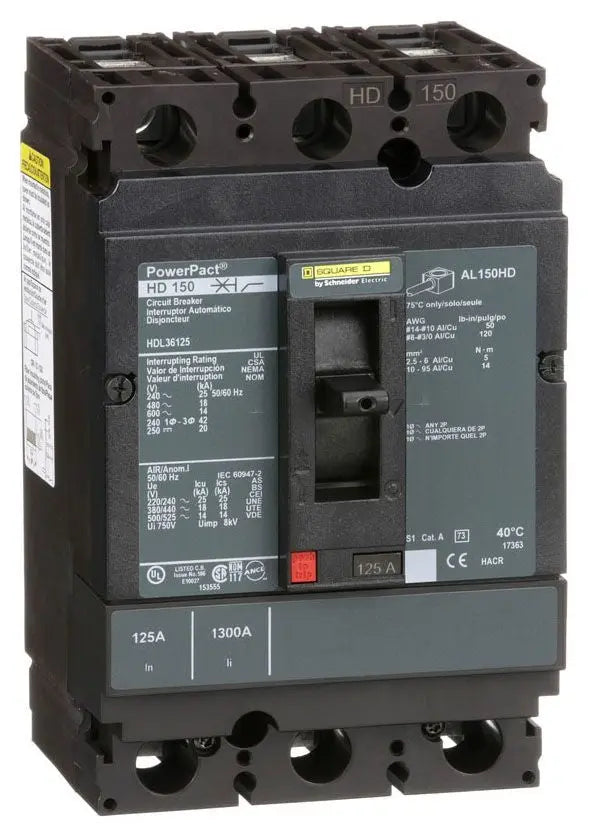

HDL36125 - Square D 125 Amp 600 Volt 3 Pole Thermal Magnetic Circuit Breaker PowerPacT H Frame

HDL36125

HDL36125 is a 3 pole, 125 amp thermal magnetic molded case circuit breaker designed for 600/690 VAC applications.HDL36125 features a PowerPacT H frame with unit mount construction, providing reliable overload and short circuit protection. It has an interrupt rating of 18kAIC at 480 VAC, includes long-time and instantaneous trip functions, and supports line and load side lug connections. Certified to UL, CSA, CE, IEC, NEMA, and NOM standards, it is suitable for industrial and commercial power distribution.

Key Specifications
• Amperage: 125 A
• Voltage Rating: 600/690 VAC
• Poles: 3
• Mounting Type: Unit mount
• Interrupting Rating: 18kAIC at 480 VAC
• Frame Type: PowerPacT H (HDL)
• Trip Unit: Thermal Magnetic with LI (long-time and instantaneous) functions
• Connection Type: Feed-thru with line and load side lugs
• Certifications: UL, CSA, CE, IEC, NEMA, NOM
• Wire Gauge: AWG 14 to AWG 3/0 Aluminum/Copper
• Operating Temperature: -25 to 70 °C
• Actuator Type: Toggle

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HDL36125
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDL
• Voltage : 600
• Amperage : 125
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Line/Load Lug
• Frame Size : 150A/HD
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901955849
• GTIN : 00785901955849
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.101
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
