Product Info
- Manufacturer: Square D
- Sub-Category: Molded Case
Description
HDL36110

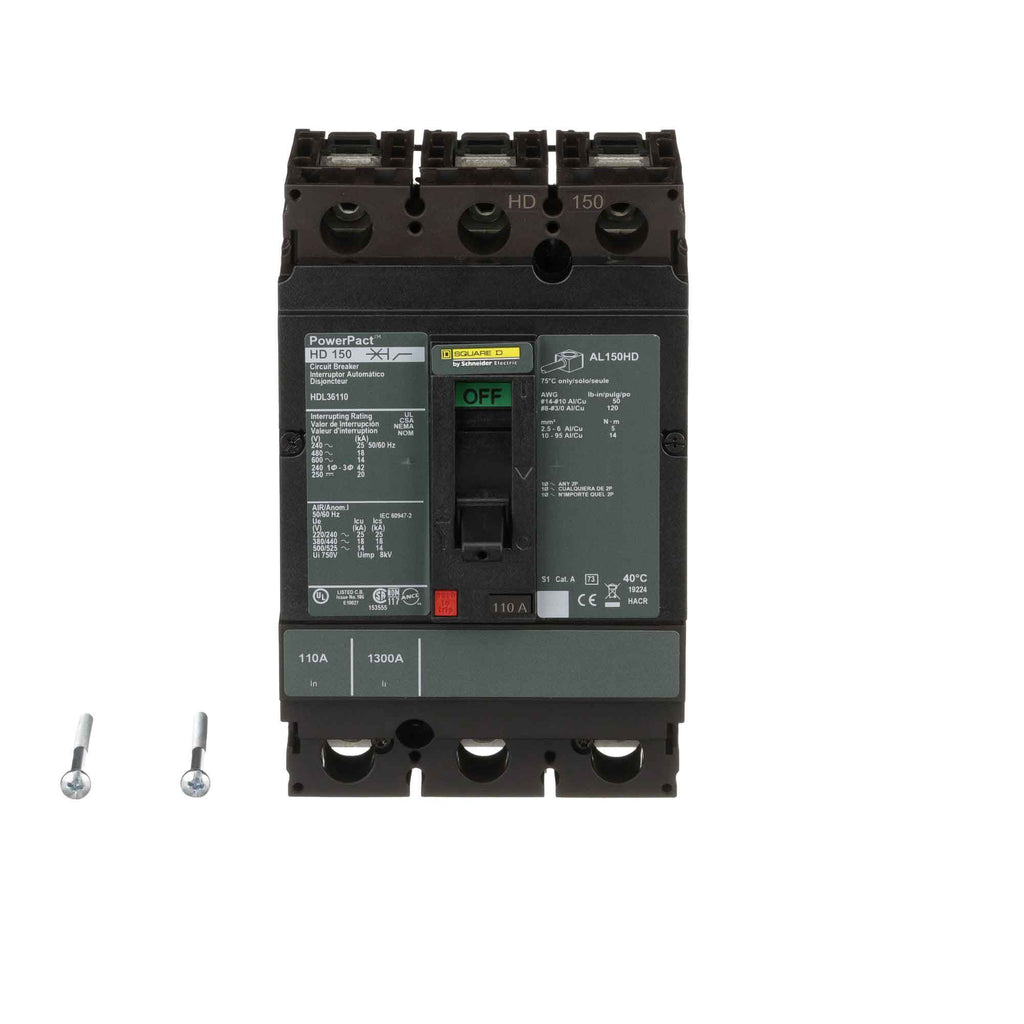

The Square D HDL36110 is a Molded Case Circuit Breaker. This type HDL circuit breaker is a member of The Powerpact family. The HDL36110 is a 3 pole, 600 Volt, 110 amp rated circuit breaker, with an AIC rating of 18kA@480V. The HDL36110 is manufactured by Square D. The HDL36110 uses a Feed-Thru connection. Includes Thermal Magnetic protection. Every part Essential Electric sells is also backed by our industry-leading gold standard 2-year warranty.
Specifications
- Part Number: HDL36110
- Manufacturer : Square D
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : HDL
- Voltage : 600
- Amperage : 110
- Phase : 3
- Poles : 3
- AIC rating : 18kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Lug
- Frame Size : H
- MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
- Temp Rating : 28-158 °F (-2-70 °C)
Product Data
- UPC : 785901623199
- GTIN : 00785901623199
- Country of Origin : Mexico
- Dimensions : Height 6.42 in (163 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight : 4.18
- Standards : UL, CSA, NEMA, NOM, CE
- Certification : UL, CSA, CCC, IEC, CE
- Wire Size : AWG 14...AWG 3/0 aluminum/copper terminal
