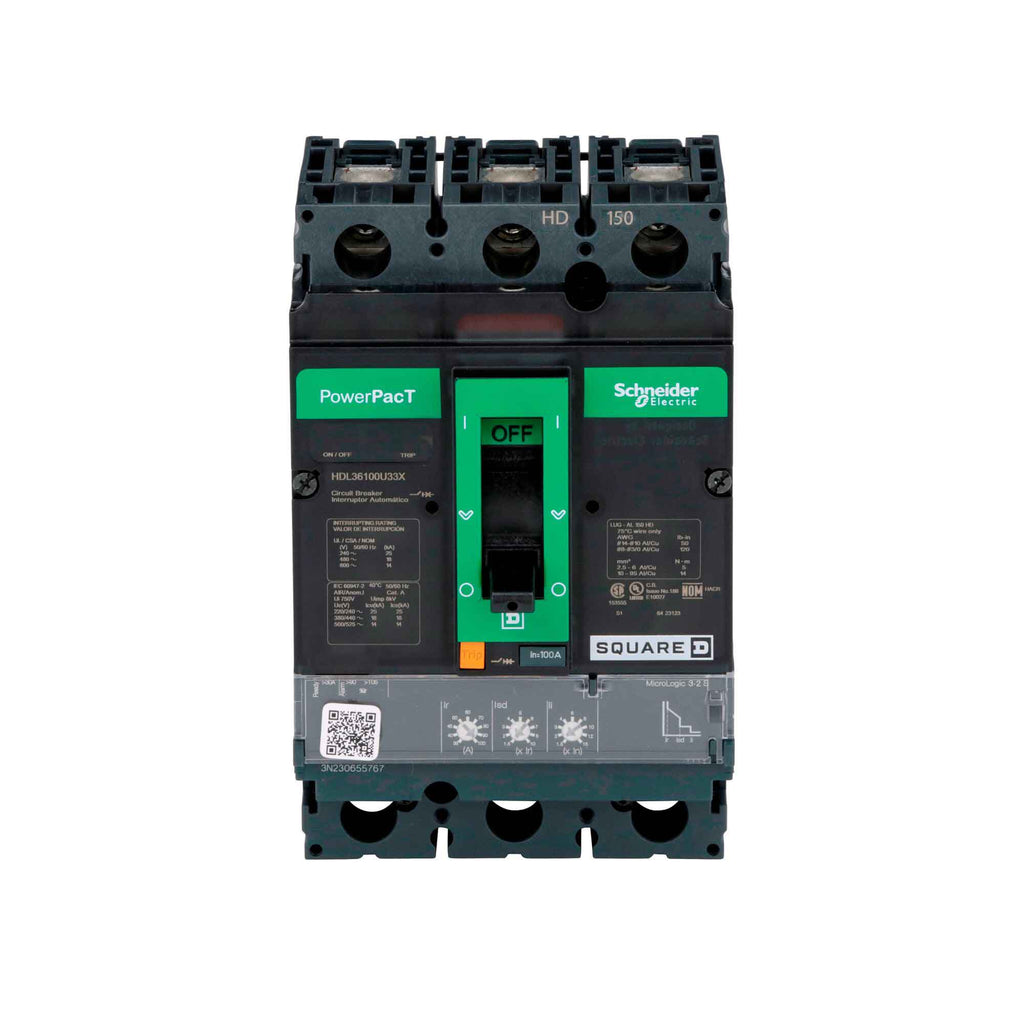

HDL36100U33X - Square D PowerPact H 100A 3 Pole Molded Case Circuit Breaker 600VAC 14kA Unit Mount

HDL36100U33X

HDL36100U33X is a 100A, 3 pole, 600VAC molded case circuit breaker from the Square D PowerPact H series, featuring solid state trip and unit mounting for reliable power distribution. This PowerPact H molded case circuit breaker is designed for commercial and industrial applications, offering electronic trip protection with long time, short time, and instantaneous trip functions. It features a 14kA interrupt rating at 600VAC, feed-thru connection type, and is suitable for use in distribution panels requiring UL 489, CSA, NEMA, NOM, IEC, CE, and RoHS compliance. The unit mount design allows for easy installation and replacement in compatible switchgear.

• Part Number: HDL36100U33X
• Manufacturer: Square D
• Series: PowerPact H
• Amperage: 100A
• Voltage: 600VAC
• Poles: 3
• Mounting Type: Unit Mount
• Interrupt Rating: 14kA at 600VAC
• Frame Type: H Frame
• Protection: Solid State Trip
• Standards: UL 489, CSA, NEMA, NOM, IEC, CE, RoHS
• Wire Gauge: AWG 14 to AWG 3/0 Aluminum/Copper

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HDL36100U33X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDL
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : Long Time, Short Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : H
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Solid State

Product Data

• UPC : 785901497035
• GTIN : 00785901497035
• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
