HDL36045 - Square D PowerPact H Frame 45 Amp 3 Pole Molded Case Circuit Breaker 600VAC Unit Mount D Interrupt

Save $535.92
SKU: HDL36045-New
Condition: New
Price:
$552.08 $1,088.00
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

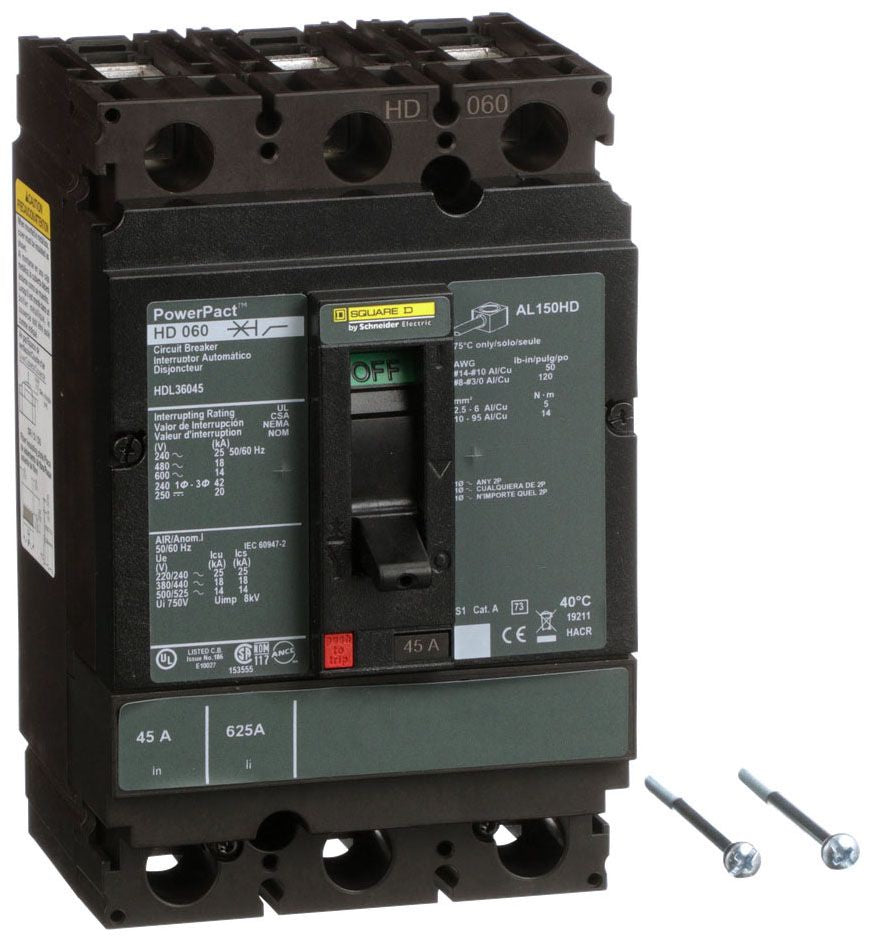

HDL36045 - Square D/ Schneider Electric Feed-Thru 45 Amp 3 Pole Circuit Breaker - Essential Electric Supply

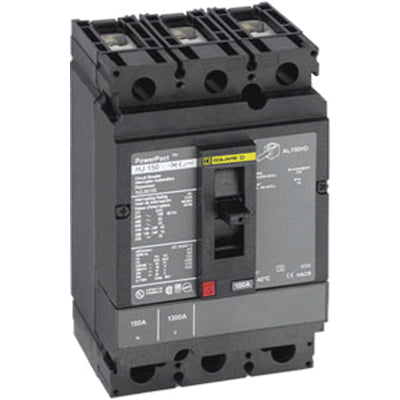

HDL36045 - Square D Bolt-On 600V 45A 3 pole circuit breaker 18kA@480V - Essential Electric Supply

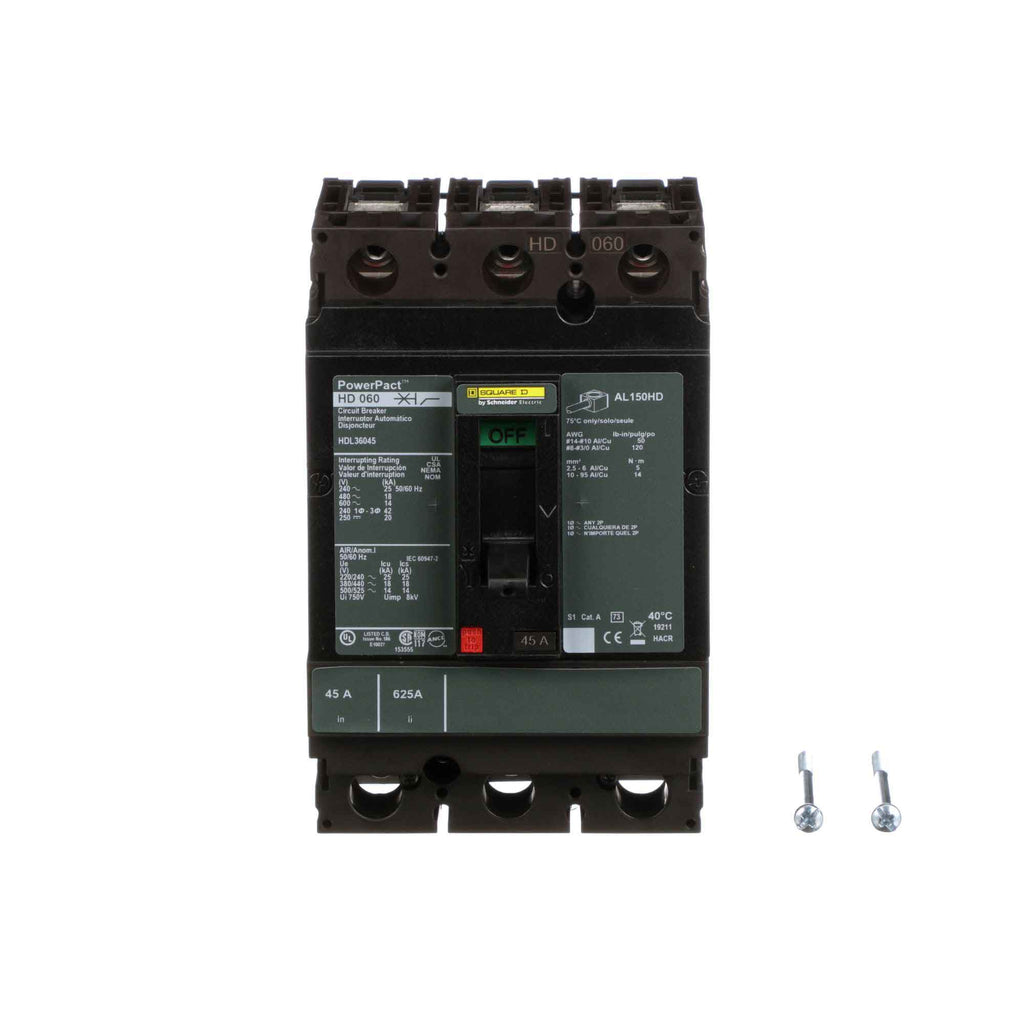

HDL36045 - Square D PowerPact H Frame 45 Amp 3 Pole Molded Case Circuit Breaker 600VAC Unit Mount D Interrupt - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
HDL36045 - Square D/ Schneider Electric Feed-Thru 45 Amp 3 Pole Circuit Breaker - Essential Electric Supply
HDL36045 - Square D Bolt-On 600V 45A 3 pole circuit breaker 18kA@480V - Essential Electric Supply
HDL36045 - Square D PowerPact H Frame 45 Amp 3 Pole Molded Case Circuit Breaker 600VAC Unit Mount D Interrupt - Essential Electric Supply

Description

HDL36045


HDL36045 is a Square D PowerPact H Frame 3 Pole molded case circuit breaker rated for 45 Amps and 600VAC, featuring unit mount design and D interrupt rating for reliable circuit protection. This thermal magnetic, current limiting circuit breaker is UL 489 listed and suitable for industrial and commercial power distribution applications requiring dependable overcurrent protection. The HDL36045 is designed for use in PowerPact H frame switchgear and offers robust performance in demanding environments.
  • Part Number: HDL36045
  • Manufacturer: Square D
  • Series/Frame: PowerPact H Frame
  • Amperage: 45 Amps
  • Number of Poles: 3 Pole
  • Maximum Voltage: 600 VAC, 250 VDC
  • Mounting Type: Unit Mount
  • Interrupt Rating: D (18 kA @ 480V, 25 kA @ 240V, 14 kA @ 600V)
  • Trip Unit: Thermal Magnetic
  • Certifications: UL 489 Listed
  • Standards: UL, CSA, CE
  • Application: Molded Case Circuit Breaker
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: HDL36045
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : HDL
  • Voltage : 600
  • Amperage : 45
  • Phase : 3
  • Poles : 3
  • AIC rating : 18kA@480V
  • Connection : Bolt-On
  • Functions : LI - Long-Time and Instantaneous
  • Terminal Connection : Line/Load Lug
  • Frame Size : 150A/HD
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 3 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : ABC

Product Data

  • UPC : 785901458876
  • GTIN : 00785901458876
  • Country of Origin : Mexico
  • Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
  • Weight : 4.08
  • Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification : UL, CSA, NOM
  • Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal

Accesories

Part Manufacture Sub Category
S29371
S29452
S29450
S29410
S29387
