HDL36040LU - Square D 40A 3-Pole Powerpact H Frame Molded Case Circuit Breaker 600VAC Thermal Magnetic Trip

HDL36040LU

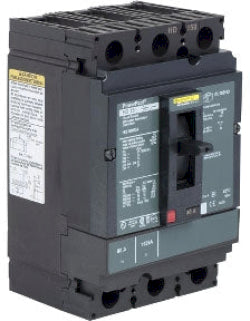

HDL36040LU is a Square D 40 Amp 3-Pole Powerpact H Frame molded case circuit breaker designed for reliable circuit protection.This circuit breaker features a thermal magnetic trip unit and is rated for 600 VAC maximum voltage. It has a D interrupt rating with breaking capacities of 25 kA at 240 VAC, 18 kA at 480 VAC, and 14 kA at 600 VAC. The breaker is unit mount type and complies with UL 489 standards. It supports line and load lug connections and is suitable for 50/60 Hz frequency applications.

• Amperage: 40 A
• Voltage Rating: 600 VAC / 250 VDC
• Number of Poles: 3
• Frame Type: H Frame
• Interrupt Rating: 25 kA @ 240 VAC, 18 kA @ 480 VAC, 14 kA @ 600 VAC
• Trip Unit: Thermal Magnetic
• Mounting Type: Unit Mount
• Standards: UL 489 Listed
• Frequency: 50/60 Hz
• Connection: Line/Load Lugs
• Series: Powerpact HDL

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HDL36040LU
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDL
• Voltage : 600
• Amperage : 40
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : H Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901219408
• GTIN : 00785901219408
• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.999
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
