HDL36030 - Square D 30A 600VAC 3 Pole Thermal Magnetic Circuit Breaker PowerPact H Series

HDL36030

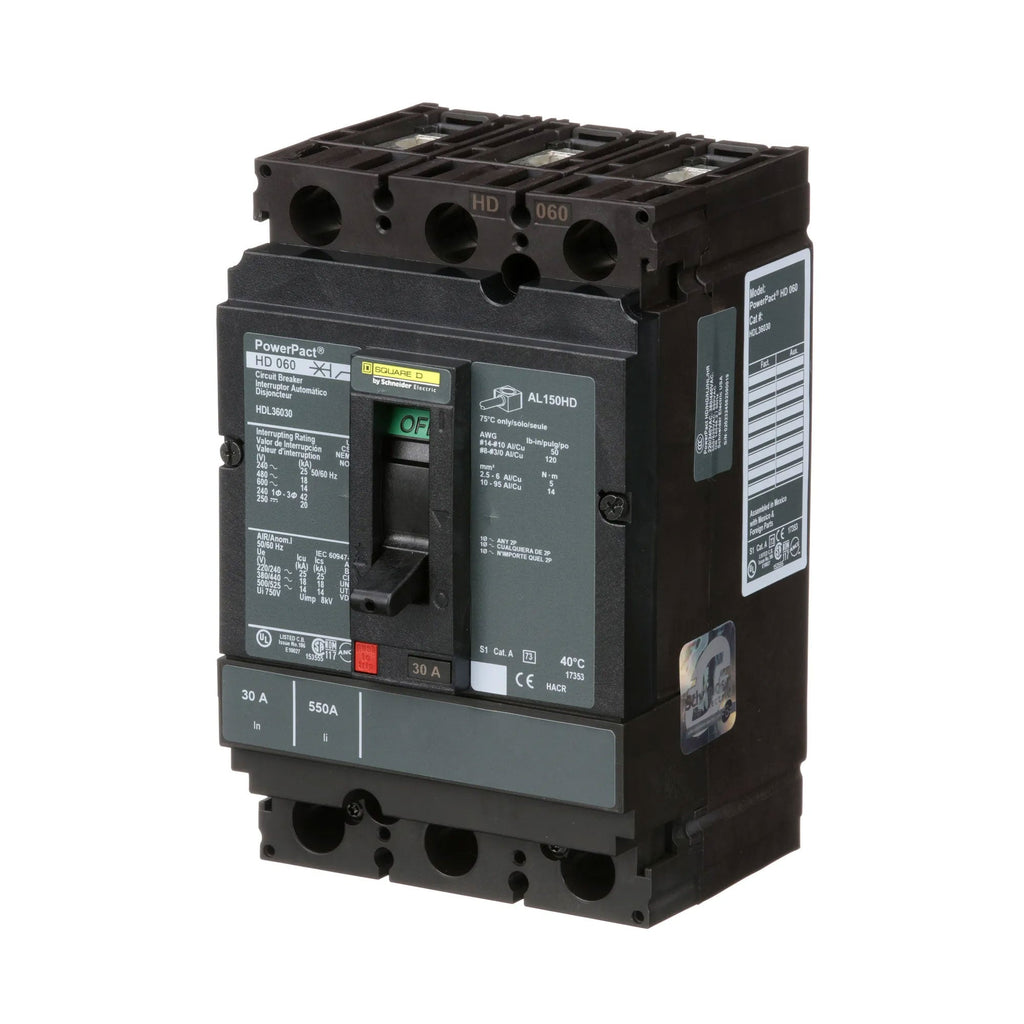

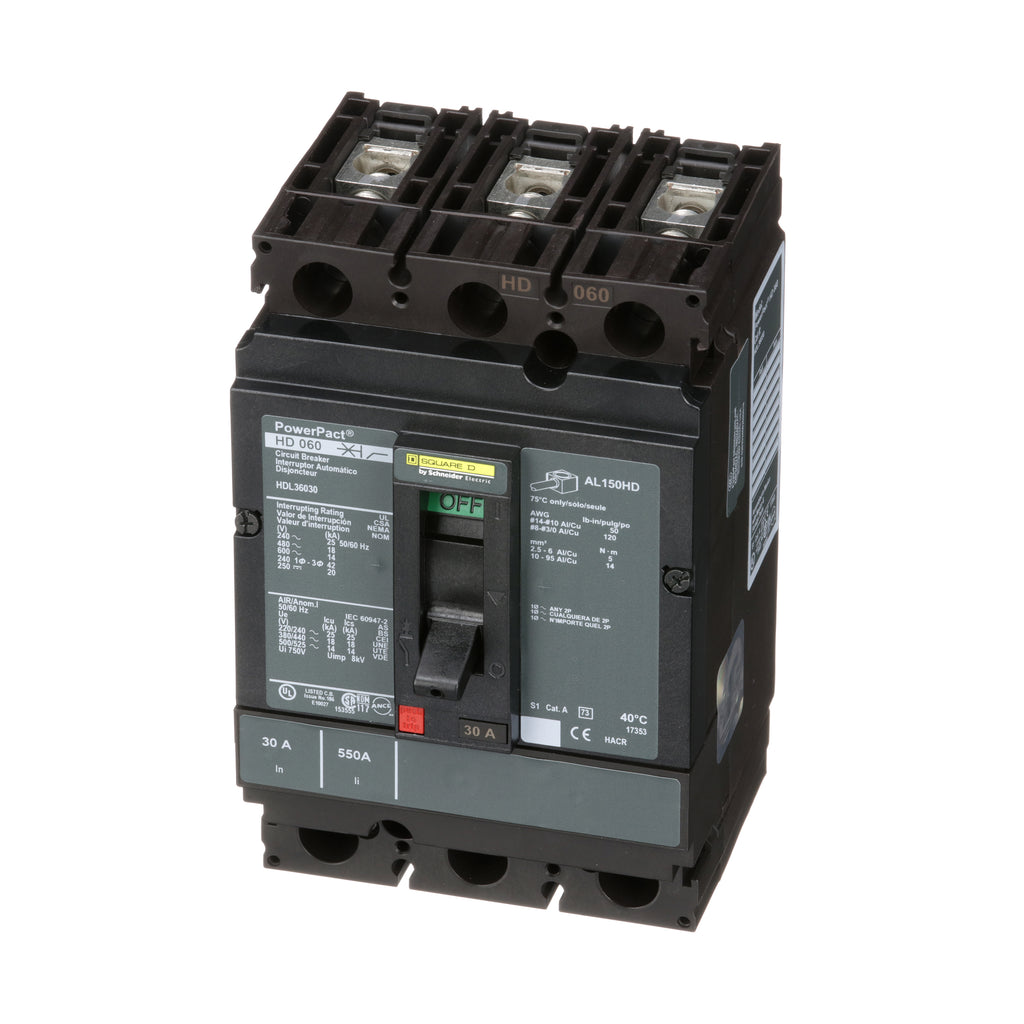

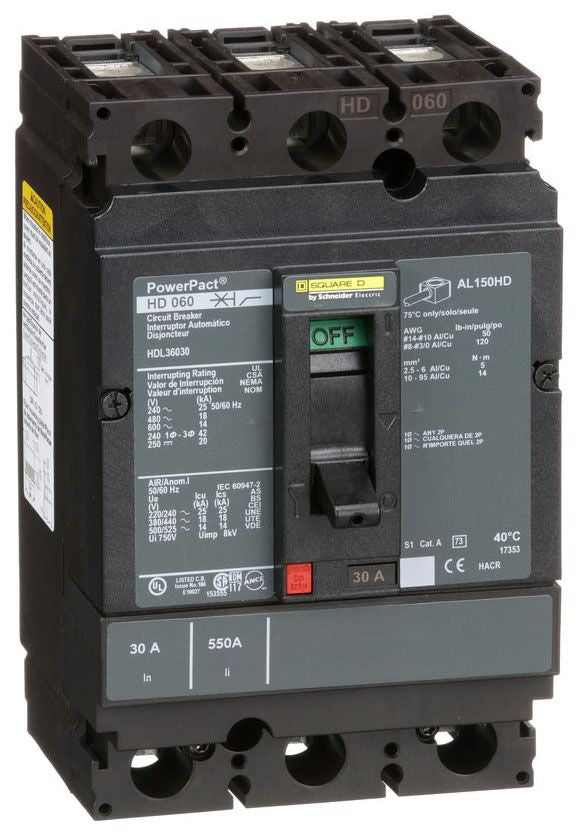

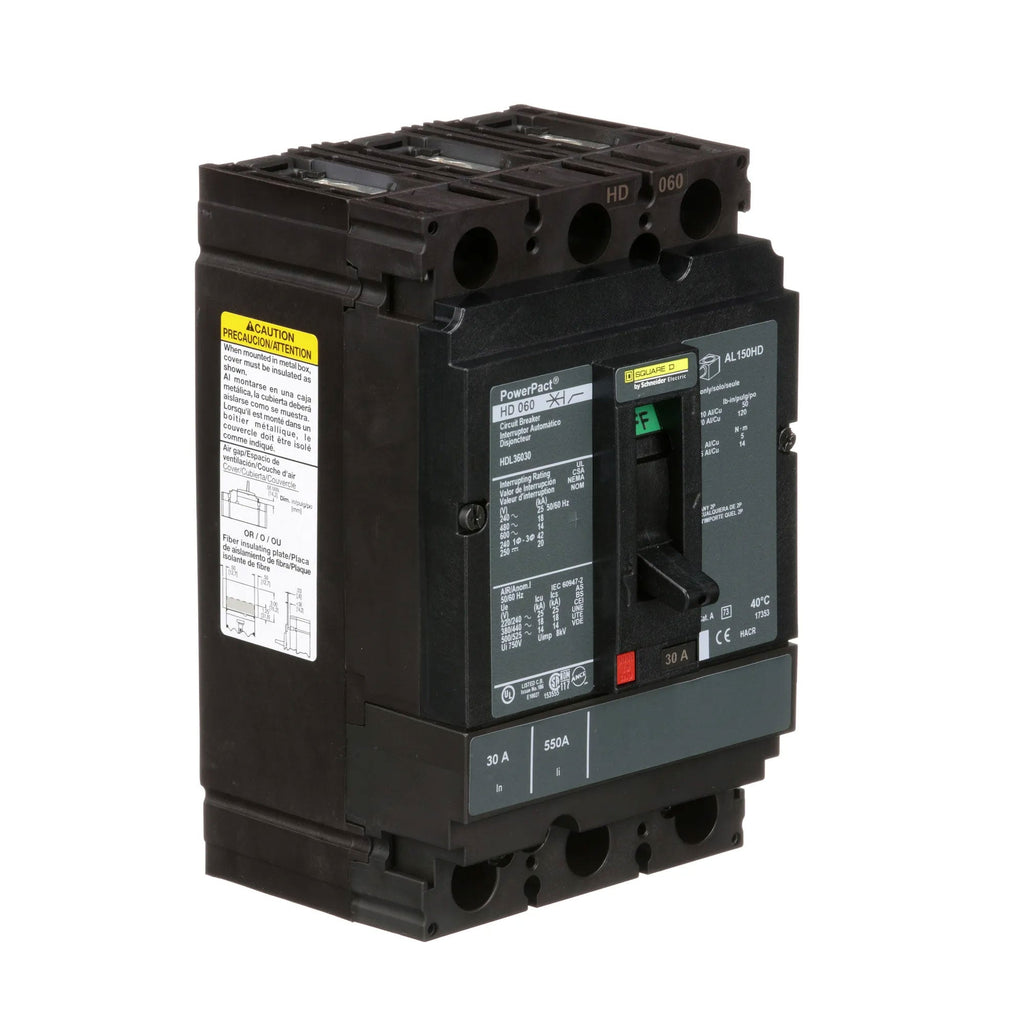

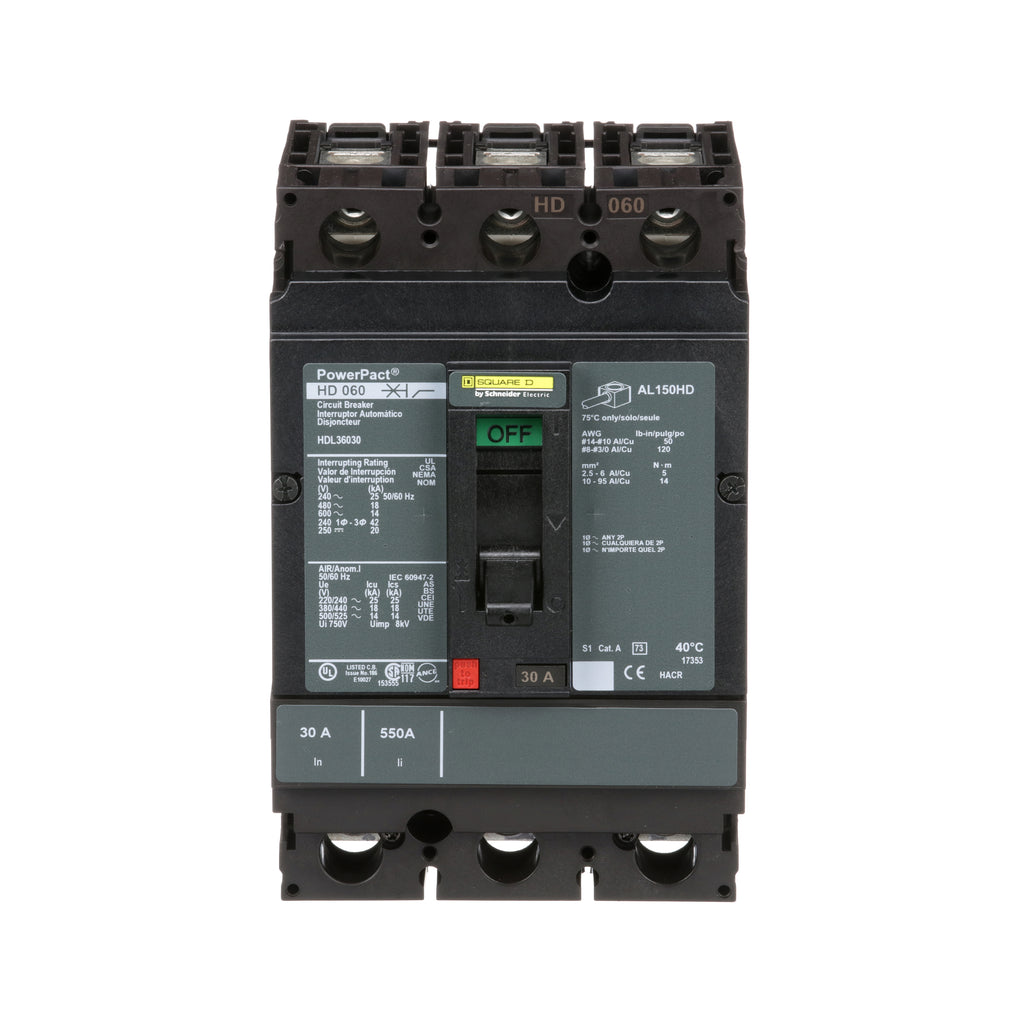

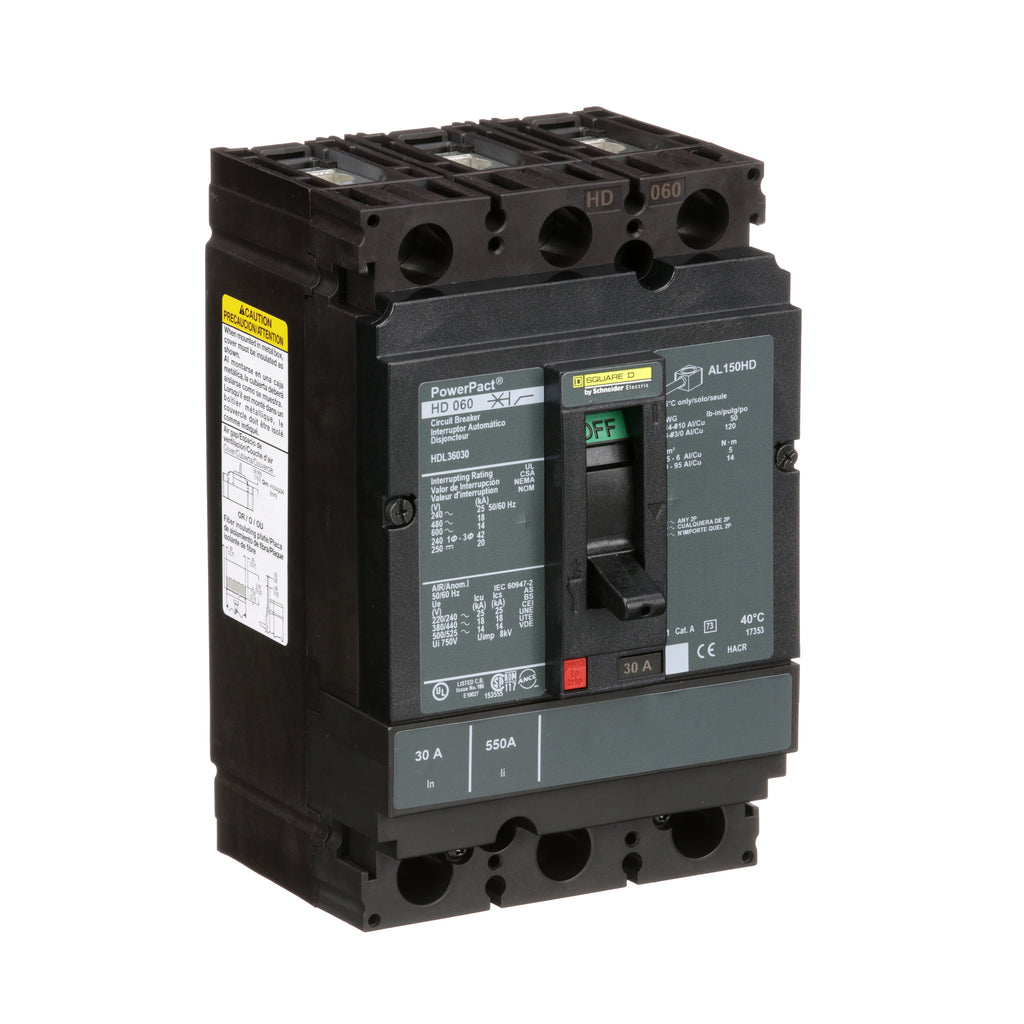

HDL36030 is a 30 Amp, 3 Pole thermal magnetic molded case circuit breaker from Square D's PowerPact H series designed for unit mounting.This circuit breaker features a 600/690VAC voltage rating, 18kA interrupting rating at 480VAC, and long-time and instantaneous trip functions. It includes feed-thru connections with line and load side lug terminals, supports wire gauges from AWG 14 to AWG 3/0 aluminum or copper, and meets UL, CSA, CE, NEMA, NOM, and IEC certifications.

• Amperage: 30 A
• Voltage Rating: 600/690 VAC
• Poles: 3
• Mounting Type: Unit mount
• Interrupt Rating: 18 kA at 480 VAC
• Series/Frame: PowerPact H, HDL frame
• Trip Unit: Thermal magnetic with LI (long-time and instantaneous) trip
• Connection Type: Feed-thru with line and load lugs
• Wire Gauge: AWG 14 to AWG 3/0 aluminum/copper
• Certifications: UL, CSA, CE, NEMA, NOM, IEC

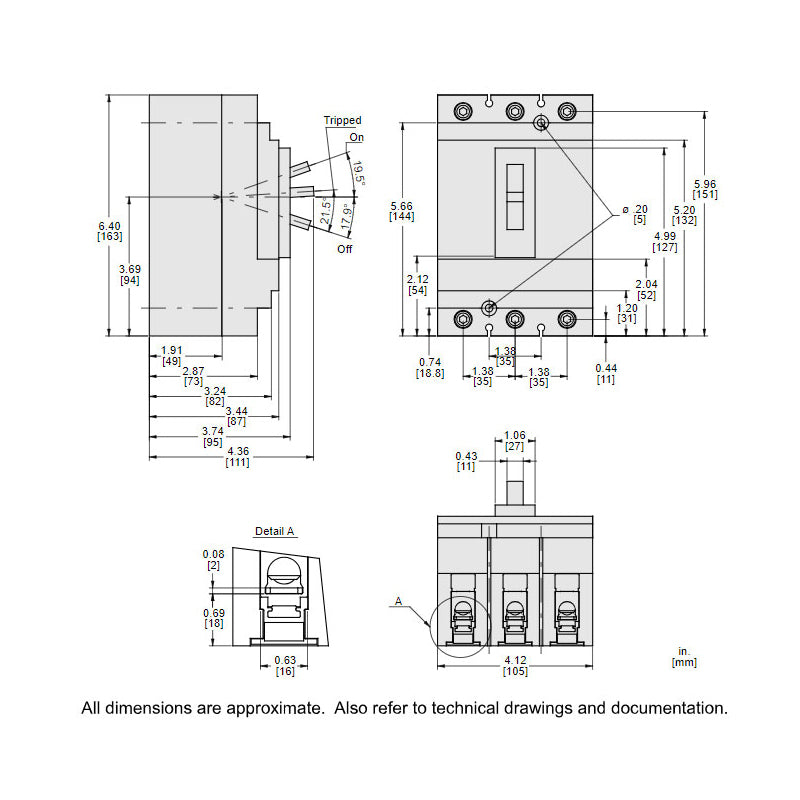

• Dimensions: 6.4 in H x 4.09 in W x 3.4 in D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HDL36030
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDL
• Voltage : 600
• Amperage : 30
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Line/Load Lug
• Frame Size : 150A/HD
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901706632
• GTIN : 00785901706632
• Country of Origin : Mexico

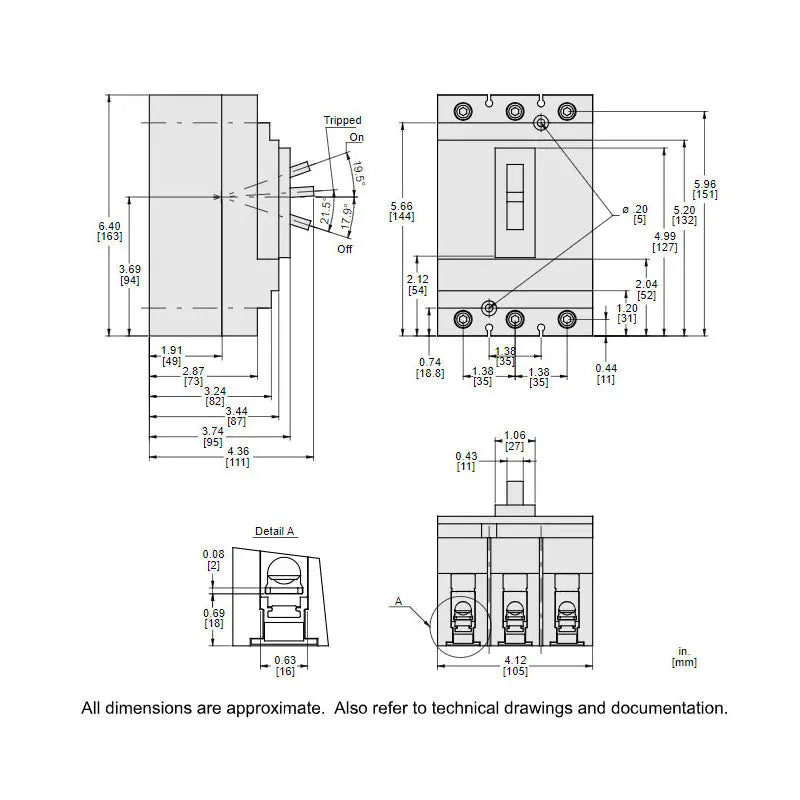

• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.123
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
