HDL36020C - Square D 20 Amp 600 Volt 3 Pole H Frame Molded Case Circuit Breaker

HDL36020C

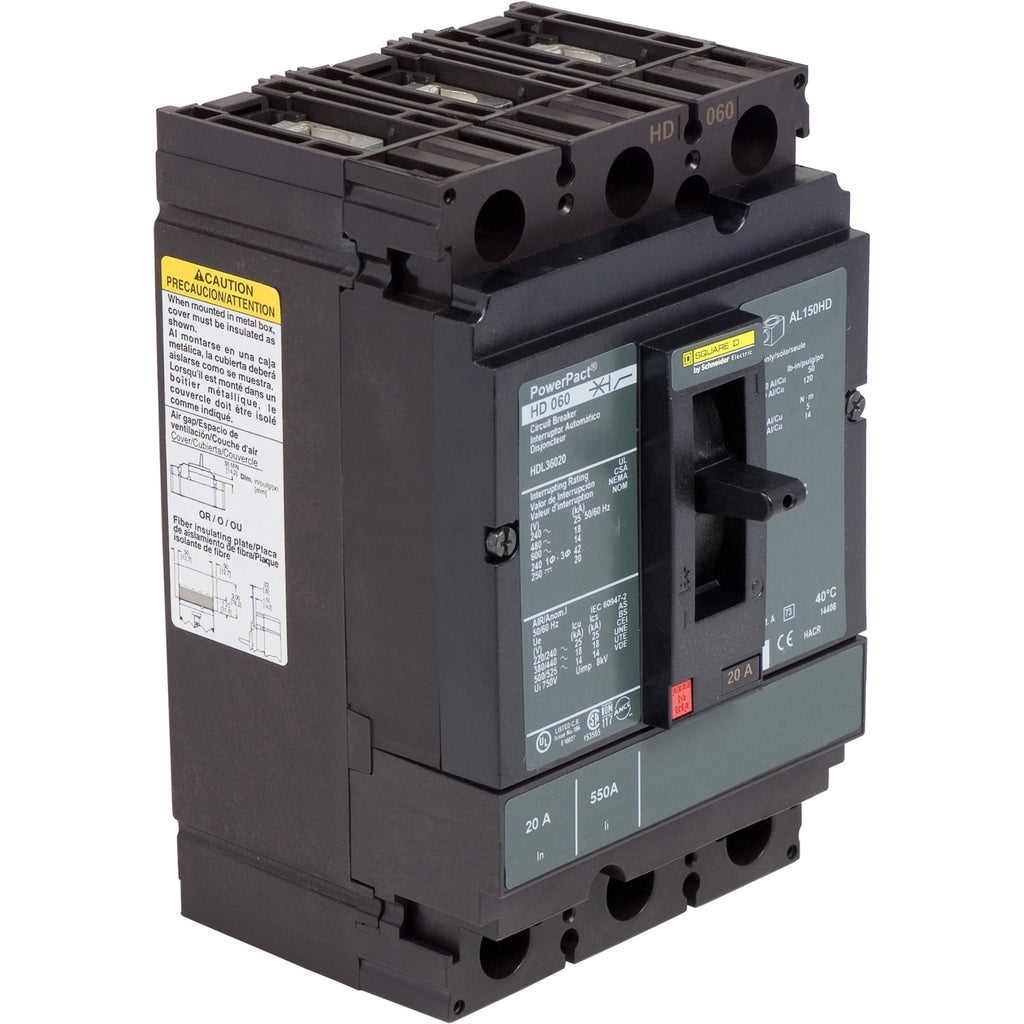

HDL36020C is a Square D 20 Amp, 600 Volt, 3 Pole H Frame Molded Case Circuit Breaker designed for reliable circuit protection.This thermal magnetic circuit breaker features a unit mount design and offers an interrupt rating of 18kA at 480V and 14kA at 600V. It is UL 489 listed and part of the PowerPacT H Frame series, providing robust protection for industrial and commercial applications.

• Amperage: 20 Amp
• Voltage Rating: 600 VAC / 250 VDC
• Poles: 3 Pole
• Frame Type: H Frame
• Mounting Type: Unit Mount
• Interrupt Rating: 18kA @ 480V, 14kA @ 600V, 25kA @ 240V
• Trip Unit: Thermal Magnetic
• UL Listing: UL 489
• Manufacturer: Square D (Schneider Electric)
• Series: PowerPacT H Frame

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HDL36020C
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Voltage : 600
• Amperage : 20
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 78590163835
• GTIN : 00785901638353
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.999
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
