HDL26100C - Square D 100 Amp 600 Volt 2 Pole Powerpact H-Frame Circuit Breaker

HDL26100C

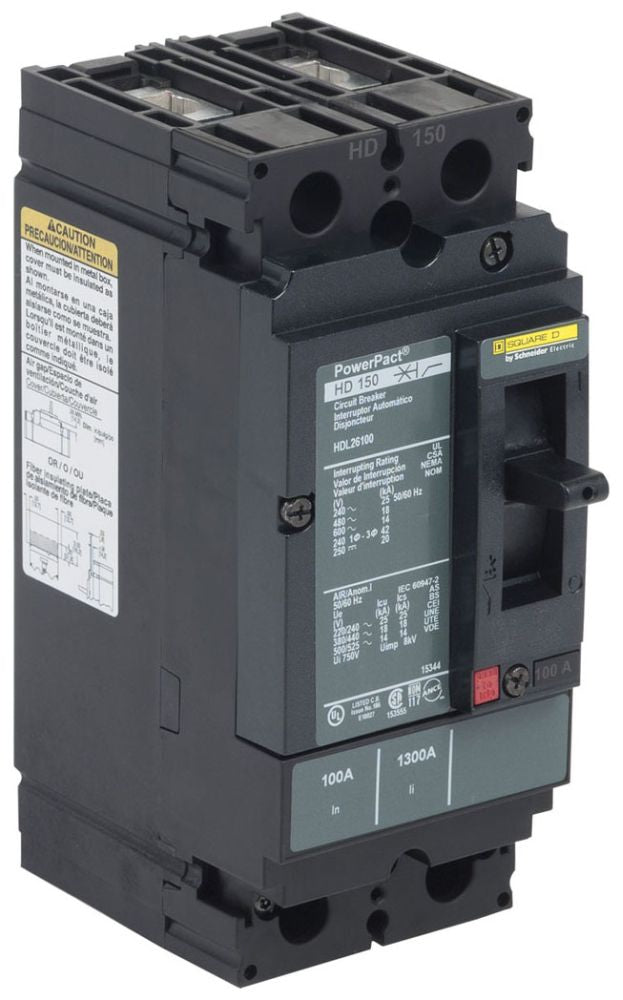

HDL26100C is a Square D Powerpact H-Frame molded case circuit breaker rated for 100 amps and 600 volts with 2 poles.

This circuit breaker features a thermal magnetic trip unit and is designed for unit mount applications. It provides reliable protection against overloads and short circuits with a current limiting design. The breaker is UL 489 listed and suitable for use up to 600 VAC or 250 VDC. Its compact dimensions allow easy installation in electrical panels requiring 2-pole protection.

• Amperage: 100 Amp
• Voltage Rating: 600 VAC / 250 VDC
• Number of Poles: 2
• Mounting Type: Unit Mount
• Interrupt Rating: D-curve (current limiting)
• Series/Frame: Powerpact H-Frame
• Trip Unit: Thermal Magnetic
• UL 489 Listed
• Dimensions: Approximately 6.4 in H x 2.74 in W x 4.36 in D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HDL26100C
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDL
• Voltage : 600
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : H Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 078590155361
• GTIN : 00785901553618
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.001
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
