HDL26015 - Square D 15A 600V 2 Pole PowerPact H Thermal Magnetic Circuit Breaker

Save $422.96
SKU: HDL26015-New
Condition: New
Price:
$447.04 $870.00
Stock:
3 in stock
Limited availability — we'll confirm stock immediately after your order.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

HDL26015 - Square D/ Schneider Electric Feed-Thru 15 Amp 2 Pole Circuit Breaker - Essential Electric Supply

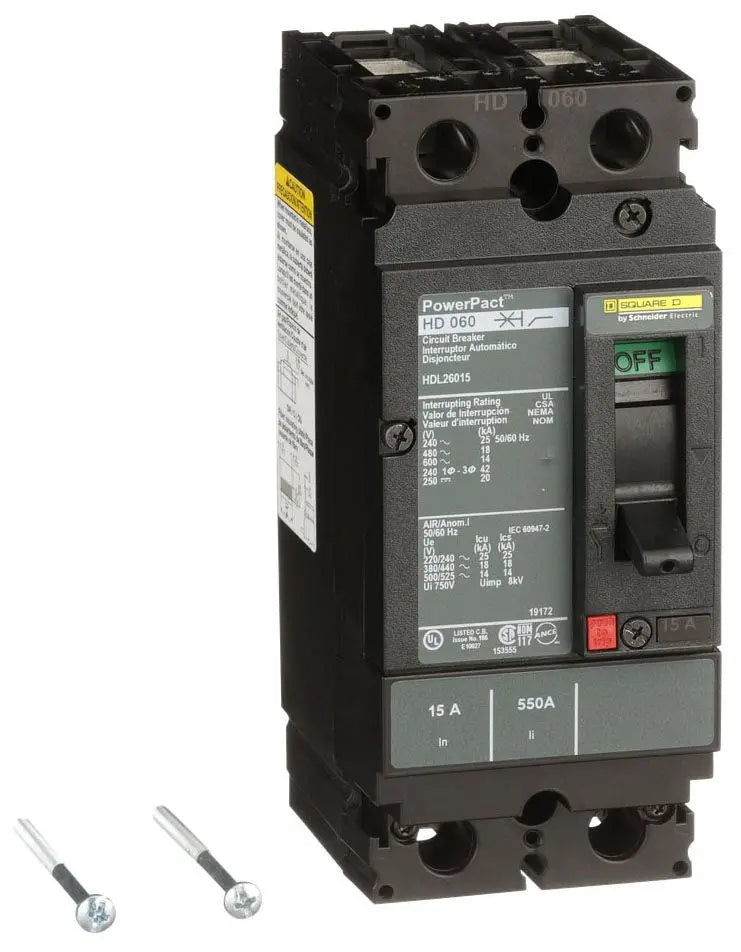

HDL26015 - Square D Feed-Thru 600V 15A 2 pole circuit breaker 18kA@480V - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
HDL26015 - Square D/ Schneider Electric Feed-Thru 15 Amp 2 Pole Circuit Breaker - Essential Electric Supply
HDL26015 - Square D Feed-Thru 600V 15A 2 pole circuit breaker 18kA@480V - Essential Electric Supply

Description

HDL26015


HDL26015 is a Square D PowerPact H thermal magnetic circuit breaker rated for 15 amps, 600 volts, and 2 poles.This molded case circuit breaker features a thermal-magnetic trip unit with a D interrupt rating, providing reliable protection with an interrupt capacity of 25 kA at 240 VAC, 18 kA at 480 VAC, 14 kA at 600 VAC, and 20 kA at 250 VDC. It is designed for unit mount installation and supports wire gauges from AWG 14 to AWG 3/0 for both aluminum and copper conductors. The breaker is UL 489 listed and suitable for industrial and commercial power distribution applications.
    Key Specifications
    • Amperage: 15 A
    • Voltage Rating: 600 V AC / 250 V DC
    • Number of Poles: 2P
    • Interrupt Rating: 25 kA @ 240 V AC, 18 kA @ 480 V AC, 14 kA @ 600 V AC, 20 kA @ 250 V DC
    • Trip Unit Type: Thermal Magnetic
    • Mounting Type: Unit Mount
    • Series/Frame: PowerPact H
    • Wire Gauge Range: AWG 14 to AWG 3/0 aluminum/copper
    • Certifications: UL 489 Listed
    • Dimensions (HxWxD): 6.4 in x 2.74 in x 4.36 in
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: HDL26015
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : HDL
  • Voltage : 600
  • Amperage : 15
  • Phase : 1
  • Poles : 2
  • AIC rating : 18kA@480V
  • Connection : Feed-Thru
  • Functions : LI - Long-Time and Instantaneous
  • Terminal Connection : Line/Load Lug
  • Frame Size : 150A/HD
  • Temp Rating : 28-158 °F (-2-70 °C)
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 3 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : Not Applicable

Product Data

  • UPC : 785901458869
  • GTIN : 00785901458869
  • Country of Origin : Mexico
  • Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
  • Weight : 3.042
  • Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification : UL, CSA, NOM
  • Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
