HDL26090 - Square D 90 Amp 600 Volt 2 Pole Thermal Magnetic Circuit Breaker Unit Mount

HDL26090

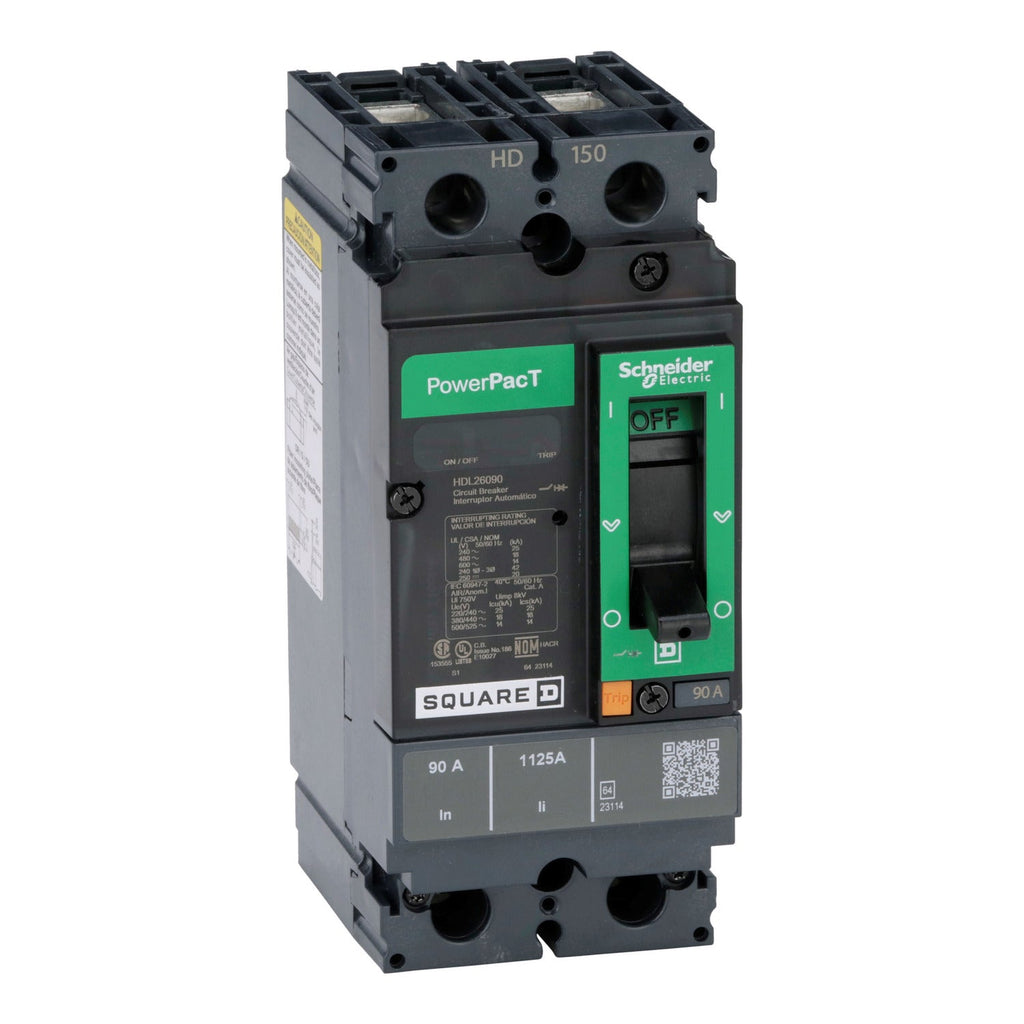

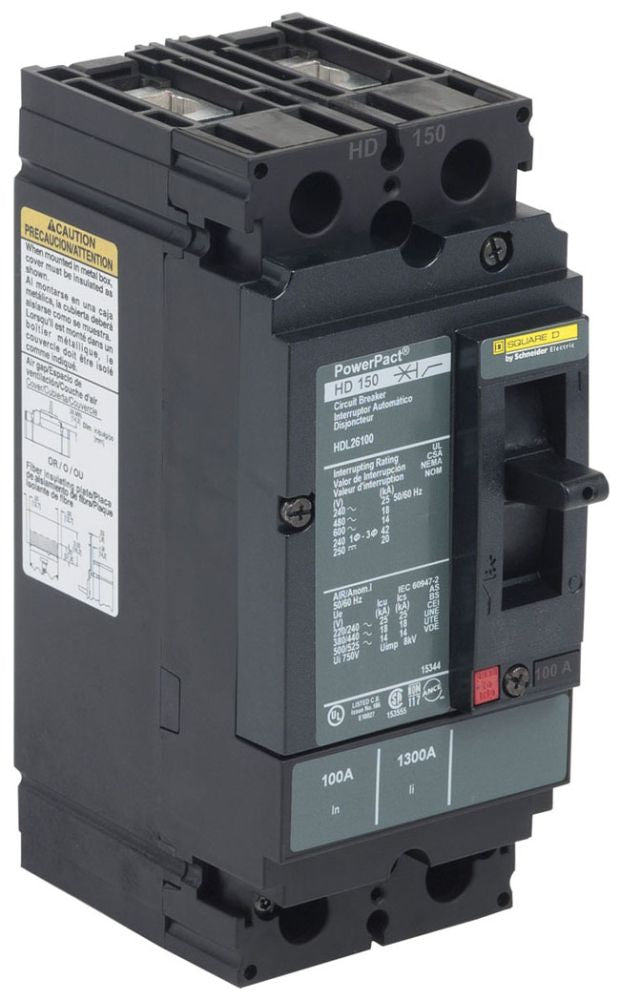

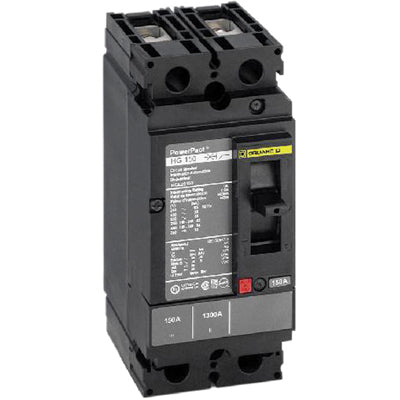

HDL26090 is a Square D 2 pole thermal magnetic circuit breaker rated for 90 amps and 600 volts with unit mounting.

This molded case circuit breaker features a thermal magnetic trip unit with long-time and instantaneous functions, suitable for single-phase applications. It has a high interrupting rating of 25kA at 240VAC, 18kA at 480VAC, 14kA at 600VAC, and 20kA at 250VDC, ensuring reliable protection. The breaker is UL, CE, IEC, and CSA certified and uses feed-thru connection with load and line lugs compatible with AWG 14 to 3/0 aluminum or copper wiring.

Key Specifications
• Amperage: 90 Amps
• Voltage: 600 Volts AC / 250 Volts DC
• Poles: 2
• Mounting Type: Unit Mount
• Interrupting Rating: 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 20kA @ 250VDC
• Series/Frame: HDL
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Functions
• Connection Type: Feed-Thru with Load and Line Lugs
• Certifications: UL, CE, IEC, CSA
• Dimensions (HxWxD): 6.4 x 4.09 x 3.39 inches
• Wire Gauge: AWG 14 to 3/0 Aluminum/Copper

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HDL26090
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDL
• Voltage : 600
• Amperage : 90
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : H
• Temp Rating : 28-158 °F (-2-70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901625193
• GTIN : 00785901625193
• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.001
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
