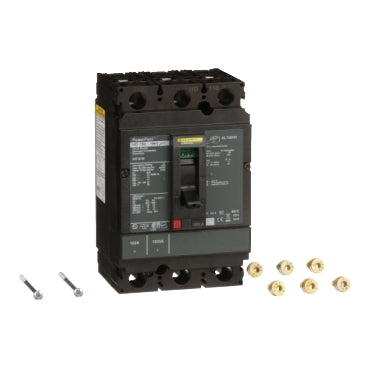

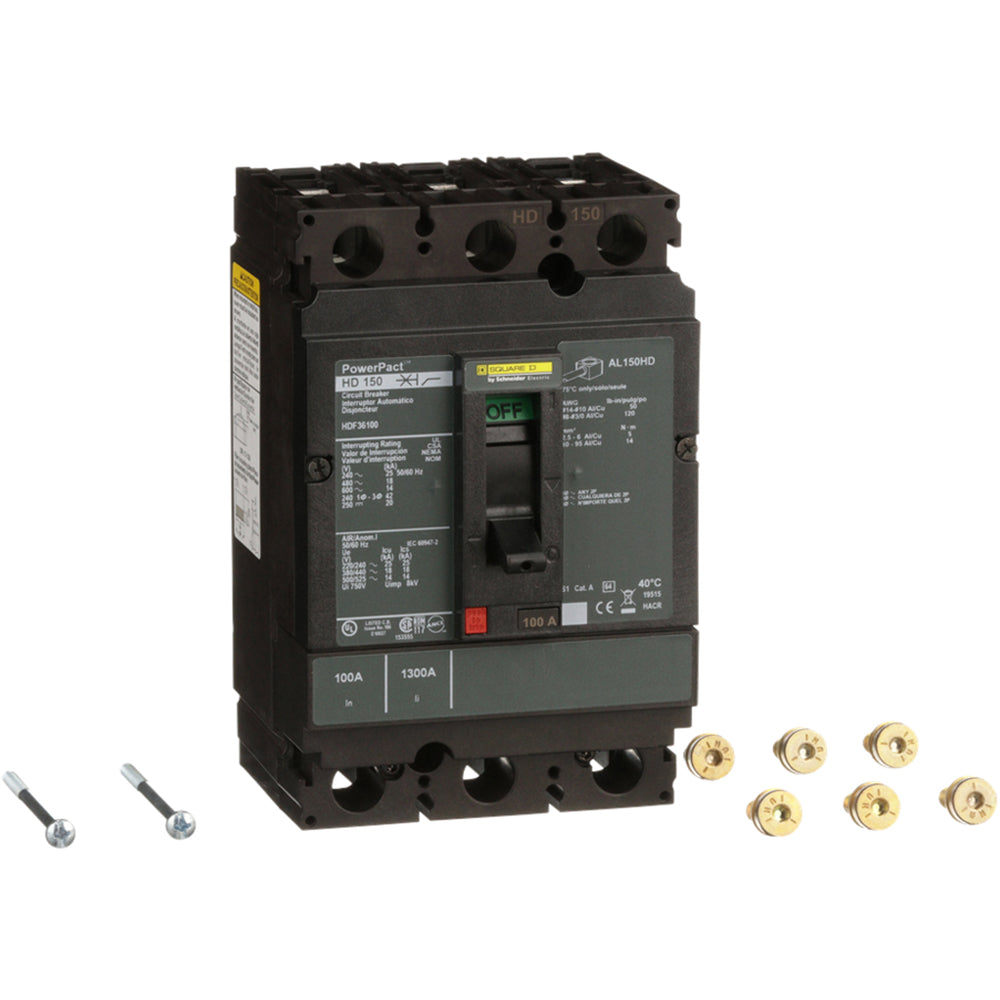

HDF36100 - Square D 100A 600V 3 Pole PowerPact H Frame Circuit Breaker Thermal Magnetic Trip

HDF36100

HDF36100 is a Square D PowerPact H Frame molded case circuit breaker rated for 100 amps and 600 volts AC with a 3-pole configuration and thermal magnetic trip unit.This circuit breaker features a 14 kA interrupt rating at 600 VAC and 18 kA at 480 VAC, designed for reliable protection against overloads and short circuits. It supports busbar line/load connections and accommodates wire sizes from 14 to 3/0 AWG. The breaker is suitable for backplate, DIN rail, or flush mounting and meets NEMA AB1 enclosure standards. It operates at 50/60 Hz frequency and is rated for 104°F temperature. The H frame PowerPact series ensures durability and compliance with industry certifications.

Key Specifications
• Amperage: 100 A
• Voltage: 600 V AC
• Number of Poles: 3
• Interrupt Rating: 14 kA at 600 VAC, 18 kA at 480 VAC
• Frame: H PowerPact
• Trip Unit: Thermal Magnetic
• Mounting Type: Backplate, DIN Rail, Flush
• Connection Type: Busbar Line/Load
• Wire Size Range: 14 to 3/0 AWG
• Frequency: 50/60 Hz
• Enclosure Type: NEMA AB1
• Operating Temperature: 104°F
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.




Specifications

• Part Number: HDF36100
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDF
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Busbar Connection
• Frame Size : H
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic



Product Data

• UPC : 3606481245021
• GTIN : 03606481245021
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 3.999
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
