Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description

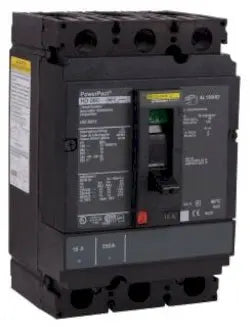

HDF36080
HDF36080 is a Square D PowerPact H-Frame molded case circuit breaker designed for reliable protection in commercial and industrial power distribution systems. This 3 pole, 80 amp breaker is rated for up to 600 volts AC and features a bolt-on mounting style for secure installation. The HDF36080 is built with a thermal magnetic trip unit for accurate overcurrent protection and is suitable for a wide range of applications requiring dependable circuit interruption. The PowerPact H-Frame series offers robust performance and is engineered for easy integration into existing electrical panels. This breaker is UL 489 listed and meets relevant industry standards for safety and reliability. Its compact design and versatile mounting options make it a preferred choice for demanding environments.
- Part Number: HDF36080
- Manufacturer: Square D
- Series/Frame: PowerPact H-Frame
- Amperage: 80 Amp
- Voltage: 600V AC
- Poles: 3 Pole
- Mounting Type: Bolt-On
- Interrupt Rating: 14kA @ 600VAC
- Trip Unit: Thermal Magnetic
- Certifications: UL 489 Listed
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
Specifications
- Part Number: HDF36080
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : HDF
- Voltage : 600
- Amperage : 80
- Phase : 3
- Poles : 3
- AIC rating : 18kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : H Frame
- Temp Rating : 28-158 °F (-2-70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 078590151945
- GTIN : 00785901519454
- Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
- Weight : 3.999
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- Certification : UL, CSA, NOM
- Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
