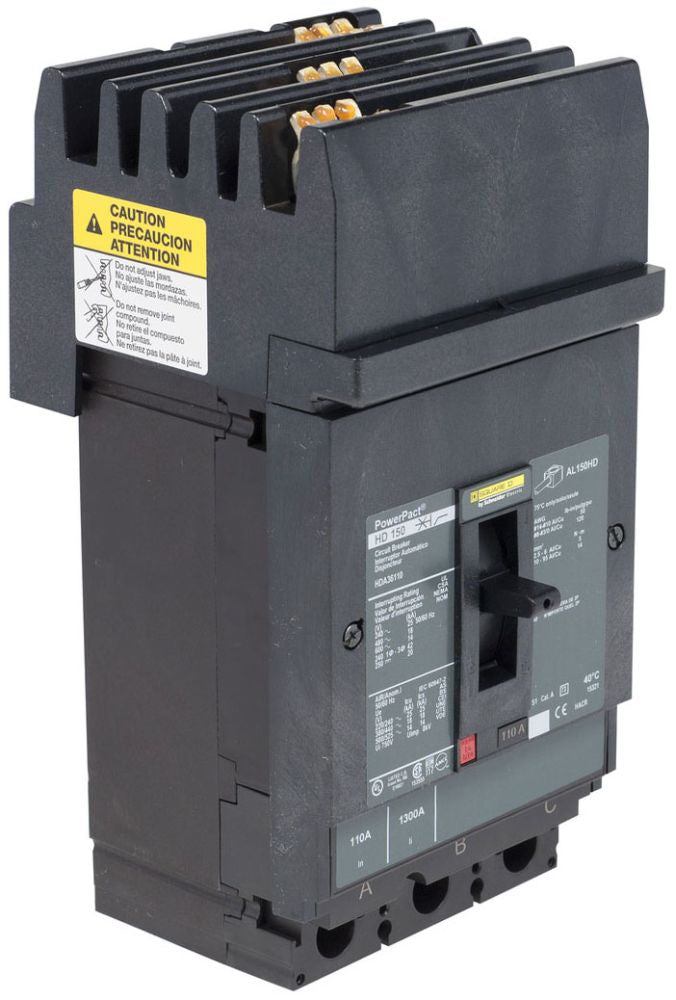

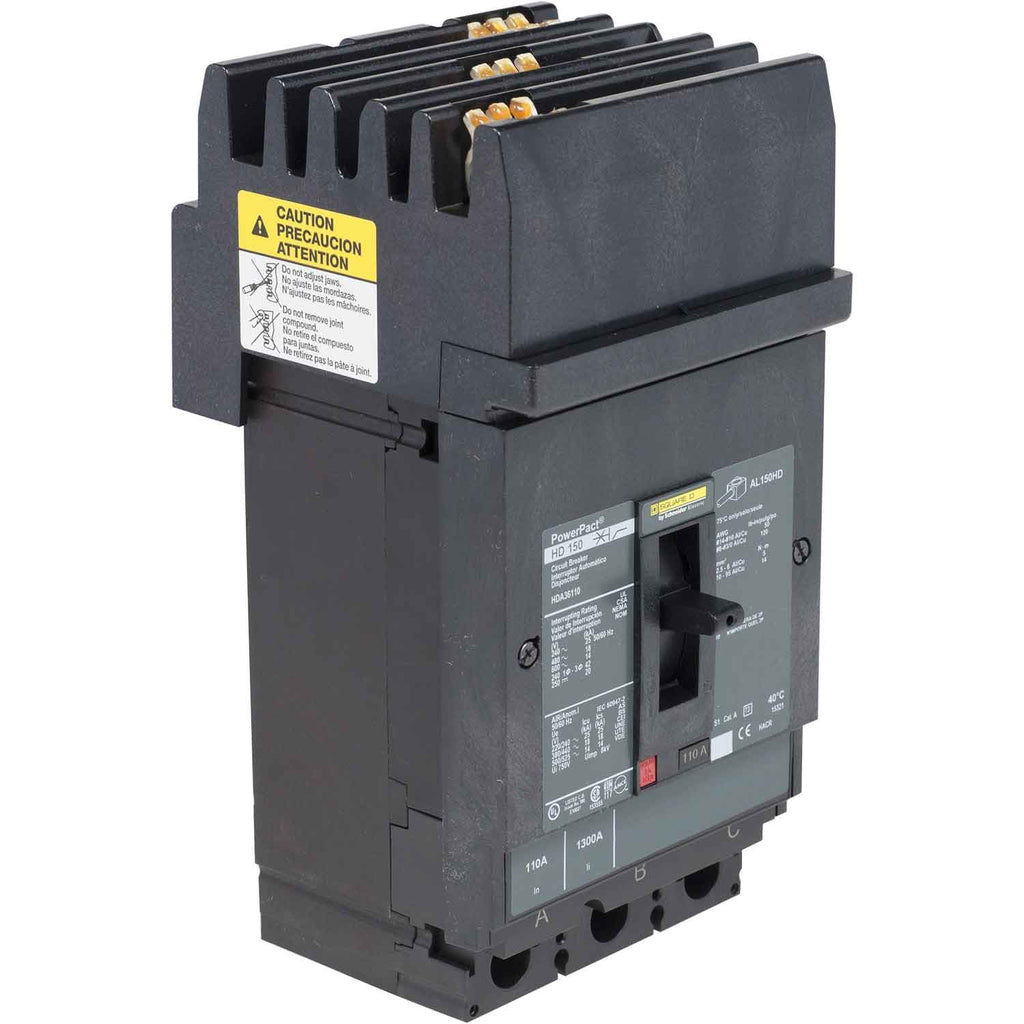

HDA36150U43X - Schneider Electric PowerPact H 3 Pole 150A 600V Solid State Circuit Breaker

HDA36150U43X

HDA36150U43X is a 3 pole, 150A, 600V solid state molded case circuit breaker designed for reliable power distribution in commercial and industrial applications.This PowerPact H-frame breaker features an electronic trip unit with Micrologic 5.2A, LSI protection, and an interrupt rating of 14kA at 600VAC. It is built for I-Line style plug-in mounting and complies with UL 489, CSA, NEMA, and IEC standards.

• Part Number: HDA36150U43X
• Manufacturer: Schneider Electric
• Series/Frame: PowerPact H
• Poles: 3
• Rated Current: 150A
• Voltage Rating: 600VAC
• Interrupt Rating: 14kA @ 600VAC
• Mounting Type: I-Line Style Plug-In
• Breaker Type: Solid State
• Protection Type: LSI, Micrologic 5.2A Trip Unit
• Certifications: UL 489, CSA, NEMA, IEC
• Application: Commercial & Industrial Power Distribution

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HDA36150U43X
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDA
• Voltage : 600
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSI - Long Time, Short Time and Instantaneous
• Frame Size : H Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Solid State

Product Data

• GTIN : 03606486282380
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 8.001
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
