HDA36100U33X - Schneider Electric PowerPact H 100A 3P 600V I-Line Molded Case Circuit Breaker, Micrologic 3.2S Trip, 14kA Interrupt, UL/CSA/CE

HDA36100U33X

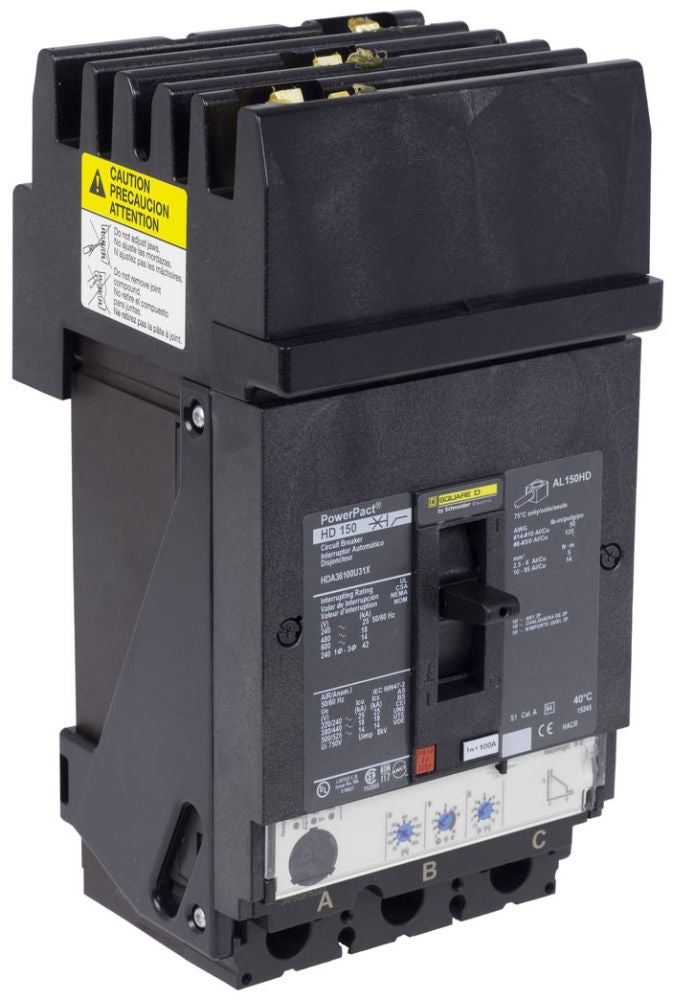

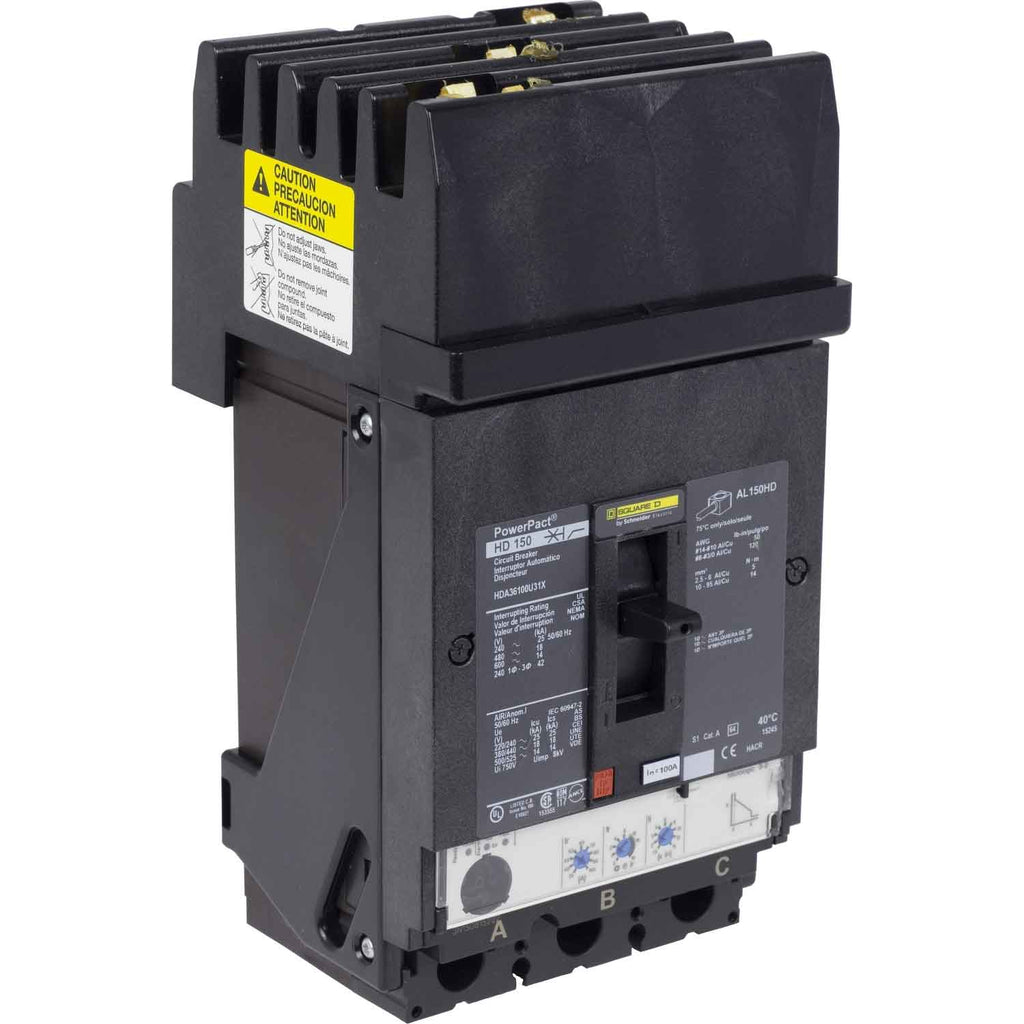

HDA36100U33X is a Schneider Electric PowerPact H series molded case circuit breaker designed for robust electrical protection in commercial and industrial applications.

This 3-pole breaker features a 100A current rating, 600V AC voltage rating, and a 14kA interrupting capacity at 600V AC (18kA @ 480V AC, 25kA @ 240V AC). It utilizes the I-Line plug-in mounting style for easy installation and is equipped with the Micrologic 3.2S solid-state electronic trip unit, offering Long-Time, Short-Time, and Instantaneous (LSI) protection. The breaker is rated for 80% continuous load and is suitable for ABC phase connection in 3-phase systems. It is certified to UL 489, CSA, NEMA, IEC, and CE standards, ensuring compliance with global safety requirements.

Key Specifications
• Amperage: 100A
• Voltage: 600V AC
• Poles: 3
• Mounting Type: I-Line plug-in
• Interrupt Rating: 14kA @ 600V AC, 18kA @ 480V AC, 25kA @ 240V AC
• Series/Frame: PowerPact H
• Trip Unit: Micrologic 3.2S (LSI)
• Certifications: UL 489 Listed, CSA, NEMA, IEC, CE
• Continuous Rating: 80%
• Phase: 3 (ABC)
• Connection: Lugs
• Environmental: CE marked, compliant with multiple international standards

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HDA36100U33X
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDA
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Solid State

Product Data

• UPC : 785901403586
• GTIN : 00785901403586
• Country of Origin : United States
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 8.001
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
