HDA36100SP - Square D Powerpact H-Frame 100A 600V 3 Pole I-Line Thermal Magnetic Circuit Breaker

HDA36100SP

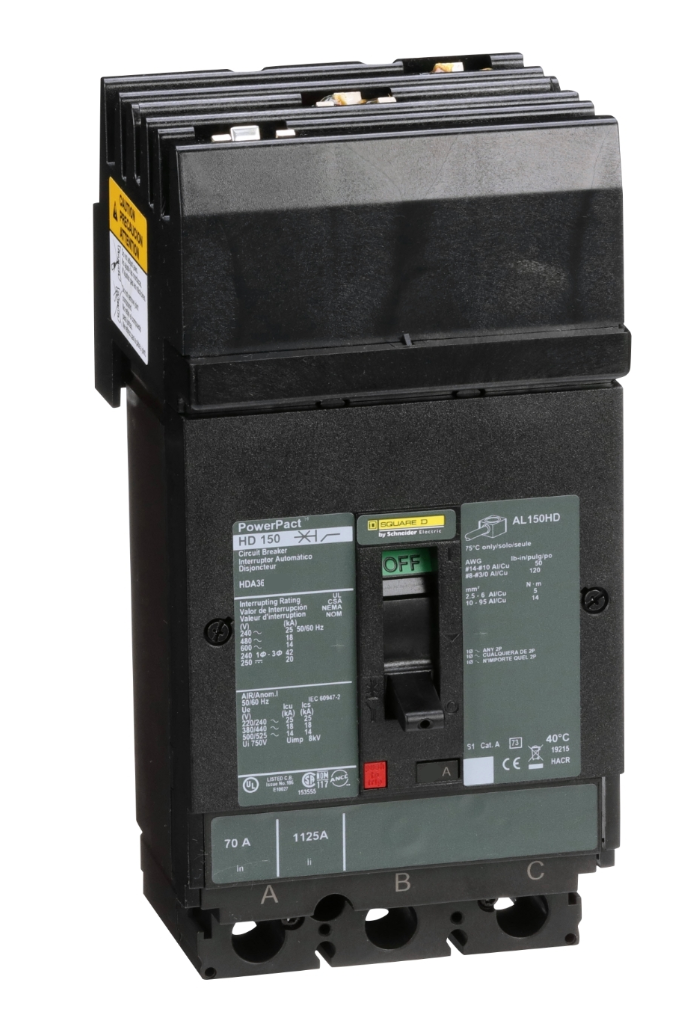

HDA36100SP is a Square D Powerpact H-Frame molded case circuit breaker designed for 3-phase power distribution with a 100 ampere rating and 600 volt capacity.This circuit breaker features a 3-pole configuration with an I-Line style plug-in mounting and thermal magnetic trip unit technology. It provides a standard interrupting capacity of 14kA at 600V AC and 18kA at 480V AC, suitable for ABC phase connection and reverse fed applications. The breaker includes long-time and instantaneous trip functions with a toggle control, supports wire sizes from 14 to 3/0 AWG for copper or aluminum, and is UL listed with multiple certifications including CSA and CE. It has an 80% continuous current rating and a breaking capacity code D.

Key Specifications
• Amperage: 100A
• Voltage Rating: 600V AC
• Number of Poles: 3
• Mounting Type: I-Line Style Plug-In
• Interrupt Rating: 14kA at 600V AC, 18kA at 480V AC
• Frame Type: H-Frame
• Trip Unit: Thermal Magnetic (Long-Time and Instantaneous)
• Continuous Current Rating: 80%
• Phase Connection: ABC
• Control Type: Toggle
• Wire Size Range: 14 to 3/0 AWG Copper/Aluminum
• Certifications: UL Listed, CSA, CE

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 48Vdc shunt trip

Specifications

• Part Number: HDA36100SP
• Manufacturer : Square D
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HDA
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• Weight : 6
